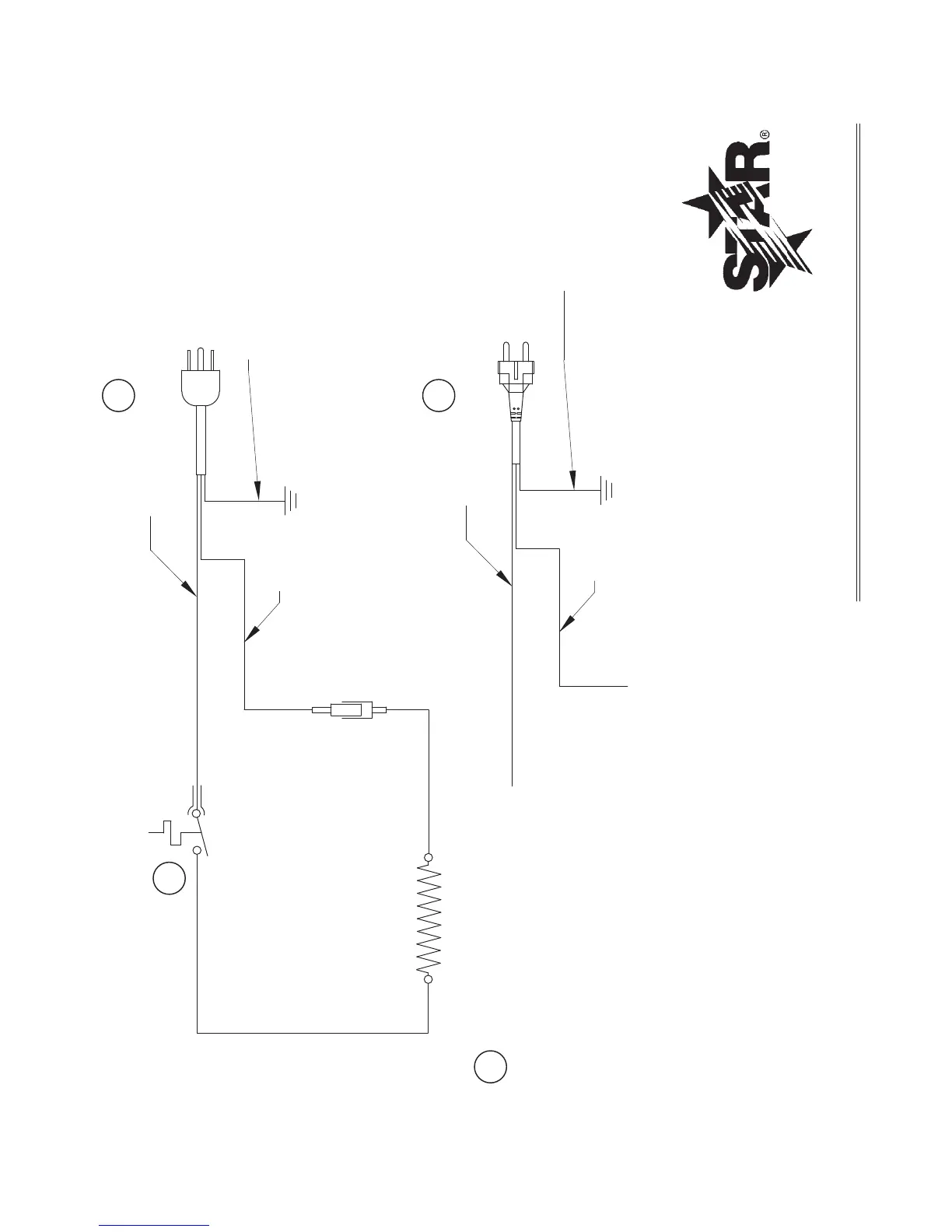

SPECIALTY WARMER - 4RW WIRE DIAGRAM
STAR MANUFACTURING INTERNATIONAL INC.
SK1373 09-04-96
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
REV. B
BAND ELEMENT
ADJUSTABLE
GND
CORD SET
BLACK
600 WATT
THERMOSTAT
3
1
2
120 V A.C.
USA NEMA 5-15P
WHITE
BLACK
GREEN
EUROPEAN CEE 7/7
GREEN
220-230 V A.C.
BLUE
BROWN
GND
CORD SET
3
