Star 4 QUART - Wiring Diagrams for 7 RW and 11 RW; 7 RW;11 RW Wiring Diagram

7
BAND ELEMENT
ADJUSTABLE
GND
CORD SET
BLACK
THERMOSTAT
3
1
2
1100 WATT - 7RW MODEL 1600 WATT - 11RW MODEL
HIGH LIMIT THERMOSTAT

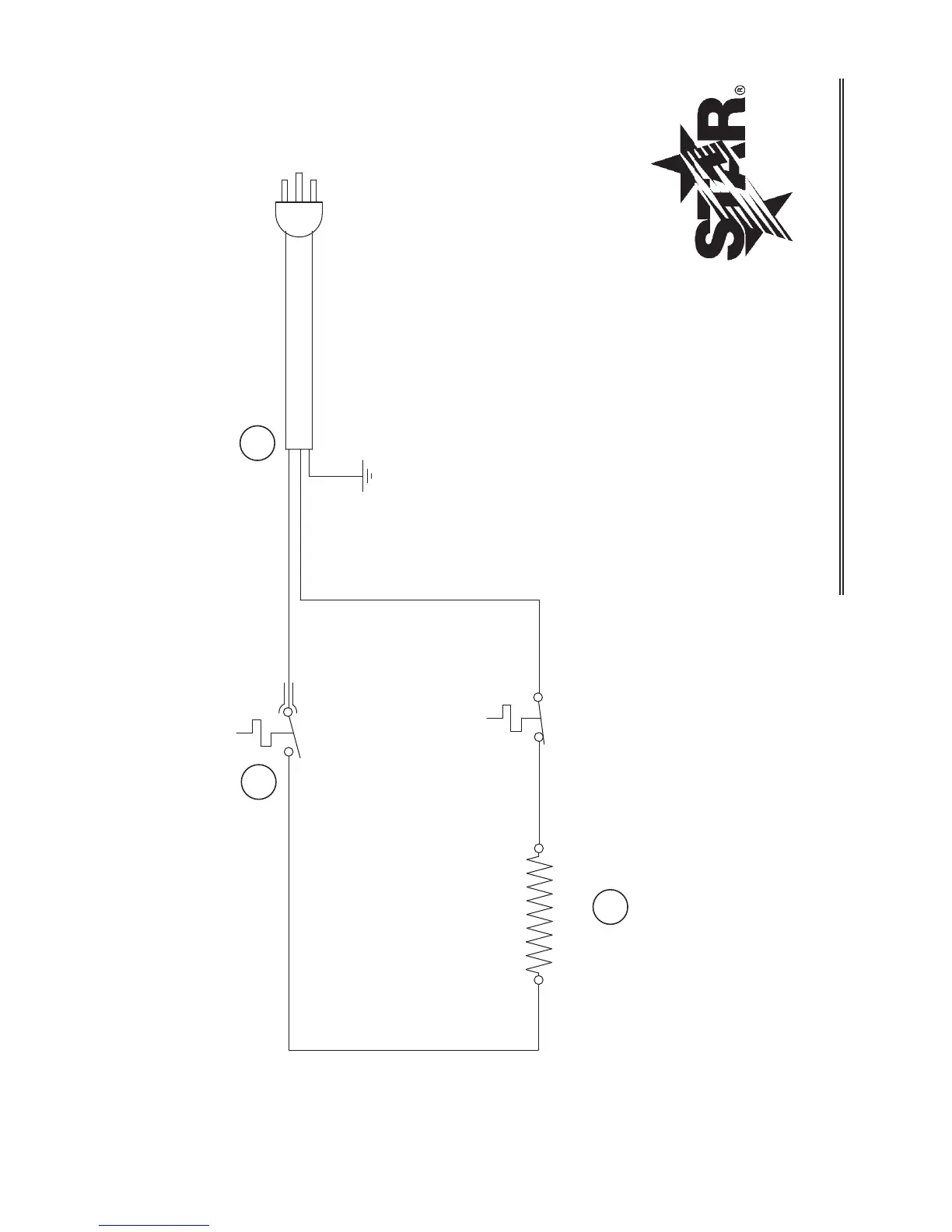

SPECIALTY WARMER - 7RW, 11RW WIRE DIAGRAM
STAR MANUFACTURING INTERNATIONAL INC. SK1440 12-01-05
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
REV. B
