1- Remove the feeder plate locking pin(Figure 12);
2- Turn the racquet adjustment screw (Figure 12);
3- If the distribution is greater to the left, spin the racquet to the right, if the
distribution is greater to the right, spin the racquet to the left, doing it in such a way
that the fanning-out of the product is centered with the tractor’s travel line
(Figure12);
4- Re-install the locking pin of the adjustment rod onto the feeder plate and
on the corresponding hole, position the adjustment screw onto the arch.
Example: The adjustment screw of the racquet is on the arch’s 4th
position, the locking pin of the adjustment rod should be in hole 4 of the feeder
plate (Figure 12).
Consult the rate tables (Item 7), which show the distribution placement for
the different products, and their application rates.

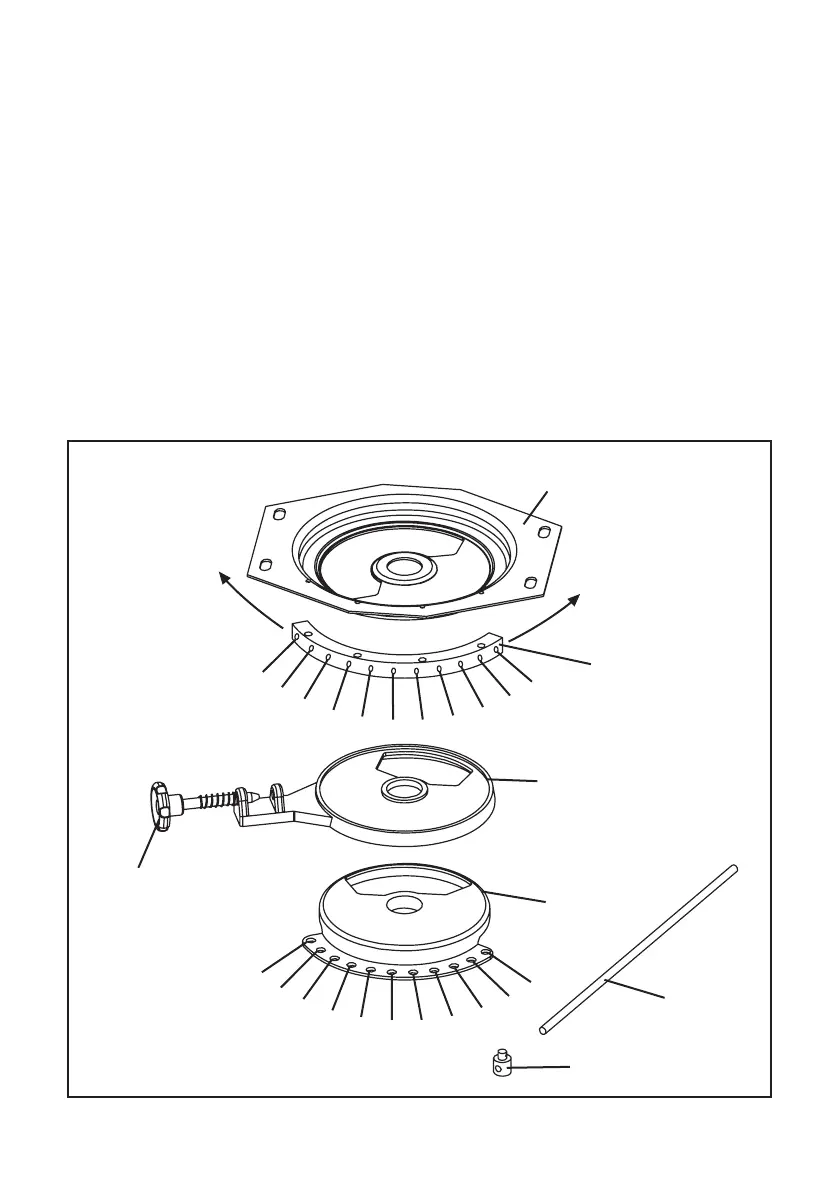

BOX DEEP
PLATE
RIGHT
DISTRIBUTION
ADJUSTMENT
SCREW
RACQUET
FEEDER
PLATE
ADJUSTMENT
ROD
ARCH
LOCKING
PIN
LEFT
DISTRIBUTION
11
1
10
2
9
3
8
4
7
5
6
6
5
7
4
8
3
9
2
10
1
11
Figure 12
