Stara TORNADO 600MD - Vane Adjustments; Overlapping Adjustment between Runs

Figure 13
1
2
3
VANE
POSITIONS
ATTENTION! When the product application width is too large, the operator
can have visual difficulties during the runs. In this case, it is recommended that
marking be done with steaks, to assist in guiding the operator and thus
guaranteeing an uniform application.
OVERLAPPING
ZONE
USABLE WIDTH
Figure 14

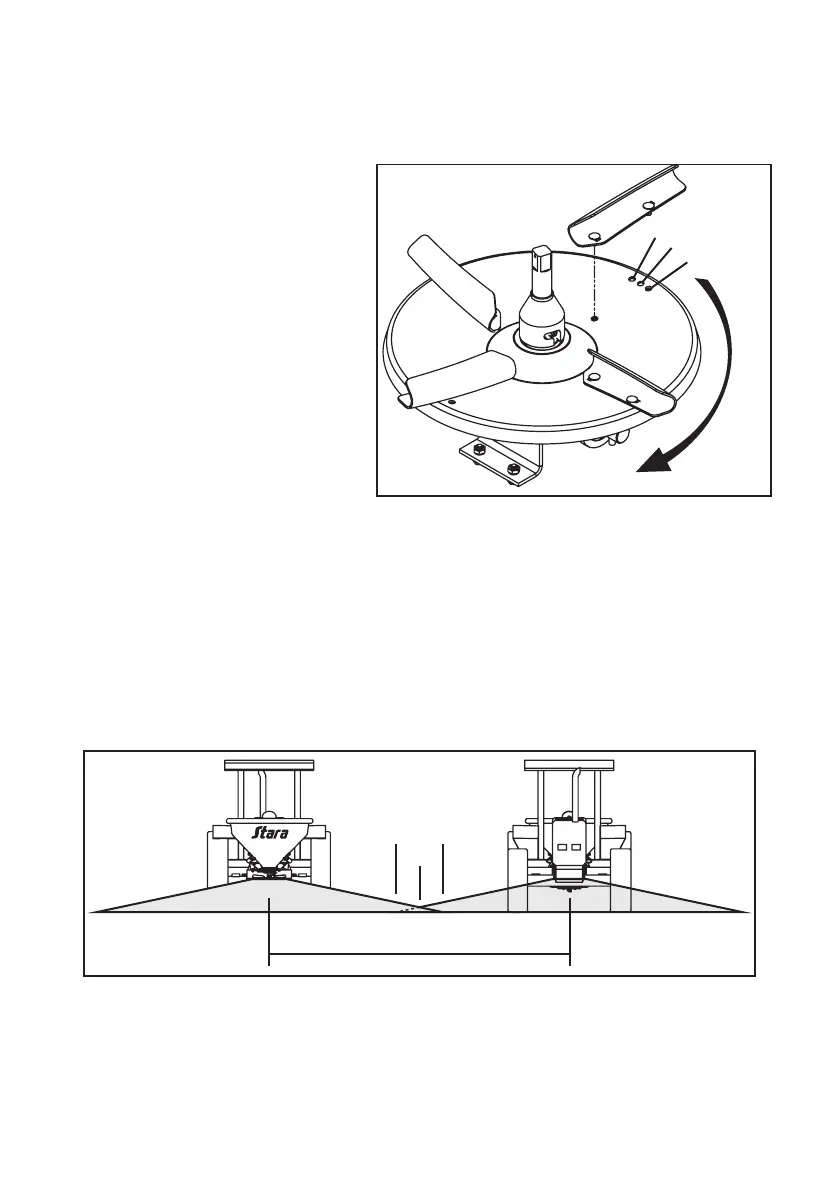

6.3.3-Vane Adjustment
On the distribution disc
there are 4 mounted vanes,
which have 3 adjustable
positions, thus allowing for the
application of various products
(fig.13)
For the best vane positions
for each product, check the rate
tables.
SPIN DIRECTION
