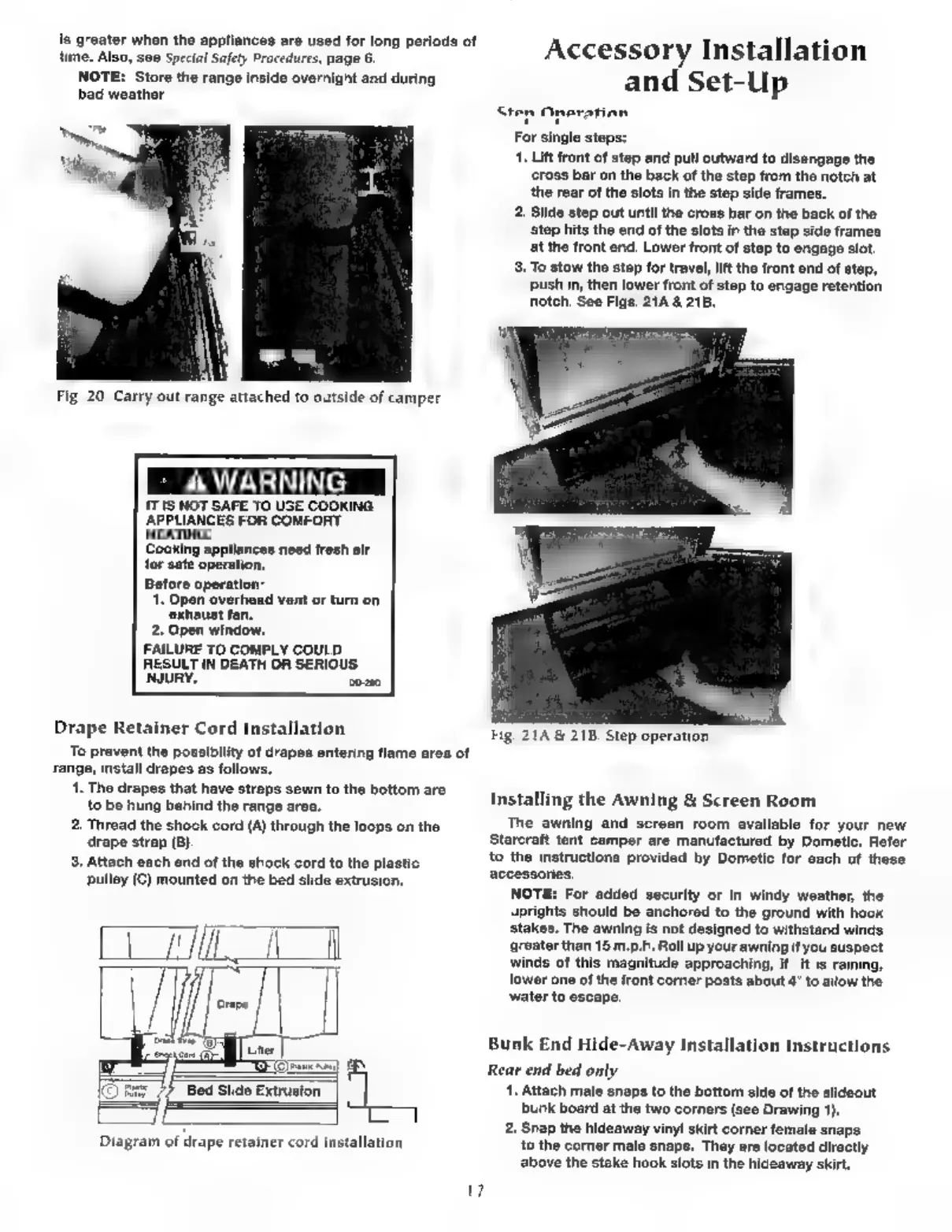

is

greater

when

the

appliances

are

used

for

long

periods

of

time.

Also,

see

Special

Safety

Procedures,

page

6.

NOTE:

Store

the

range

inside

overnight

and

during

bad

weather,

Fig.

20.

Carry

out

range

attached

to

outside

of

camper.

AWARNING

ITIS

NOT

SAFE

TO

USE

COOKING

‘APPLIANCES

FOR

COMFORT

HEATING.

Cooking

appliances

need

fresh

alr

tor

sate

operation,

Betore

operation:

1.

Open

overhead

vent

or

turn

on

‘exhaust

fan.

2.

Open

window.

FAILURE

TO

COMPLY

COULD

RESULT

IN

DEATH

OR

SERIOUS

INJURY.

vo

Drape

Retainer

Cord

Installation

To

prevent

the

possibility

of

drapes

entering

flame

area

of

range,

install

drapes

as

follows.

1.

The

drapes

that

have

straps

sewn

to

the

bottom

are

to

be

hung

behind

the

range

area,

2,

Thread

the

shock

cord

(A)

through

the

loops

on

the

drape

strap

(B).

3.

Attach

each

end

of

the

shock

cord

to

the

plastic

pulley

(C)

mounted

on

the

bed

slide

extrusion.

HE

T_T

FT

om

|

|

a

ciel

Jie

a

CES

(axe

Slide

Extrusion

Diagram

of

drape

retainer

cord

installation.

Accessory

Installation

and

Set-Up

Sten

Operation

For

single

steps:

1,

Lift

front

of

step

and

pull

outward

to

disengage

the

cross

bar

on

the

back

of

the

step

from

the

notch

at

the

rear

of

the

slots

in

the

step

side

frames.

2,

Slide

step

out

until

the

cross

bar

on

the

back

of

the

step

hits

the

end

of

the

slots

in

the

step

side

frames

at

the

front

end.

Lower

front

of

step

to

engage

slot.

3,

To

stow

the

step

for

travel,

lift

the

front

end

of

step,

Push

in,

then

lower

front

of

step

to

engage

retention

notch.

See

Figs.

21A

&

21B.

ation,

Fig.

21

&

21B.

Step

oper:

Installing

the

Awning

&

Screen

Room

‘The

awning

and

screen

room

available

for

your

new

Starcraft

tent

camper

are

manufactured

by

Dometic,

Refer

to

the

instructions

provided

by

Dometic

for

each

of

these

accessories.

NOTE:

For

added

security

or

in

windy

weather,

the

uprights

should

be

anchored

to

the

ground

with

hook

stakes.

The

awning

is

not

designed

to

withstand

winds

greater

than

15

m.p.h.

Roll

up

your

awning

if

you

suspect

winds

of

this

magnitude

approaching,

if

it

is

raining,

lower

one

of

the

front

corner

posts

about

4” to

allow

the

water

to

escape.

Bunk

End

Hide-Away

Installation

Instruct

Rear

end

bed

only

1.

Attach

male

snaps

to

the

bottom

side

of

the

slideout

bunk

board

at

the

two

corners

(see

Drawing

1).

2.

Snap

the

hideaway

vinyl

skirt

corner

female

snaps

to

the

corner

male

snaps.

Thoy

are

located

directly

above

the

stake

hook

slots

in

the

hideaway

skirt.
