OPERATION

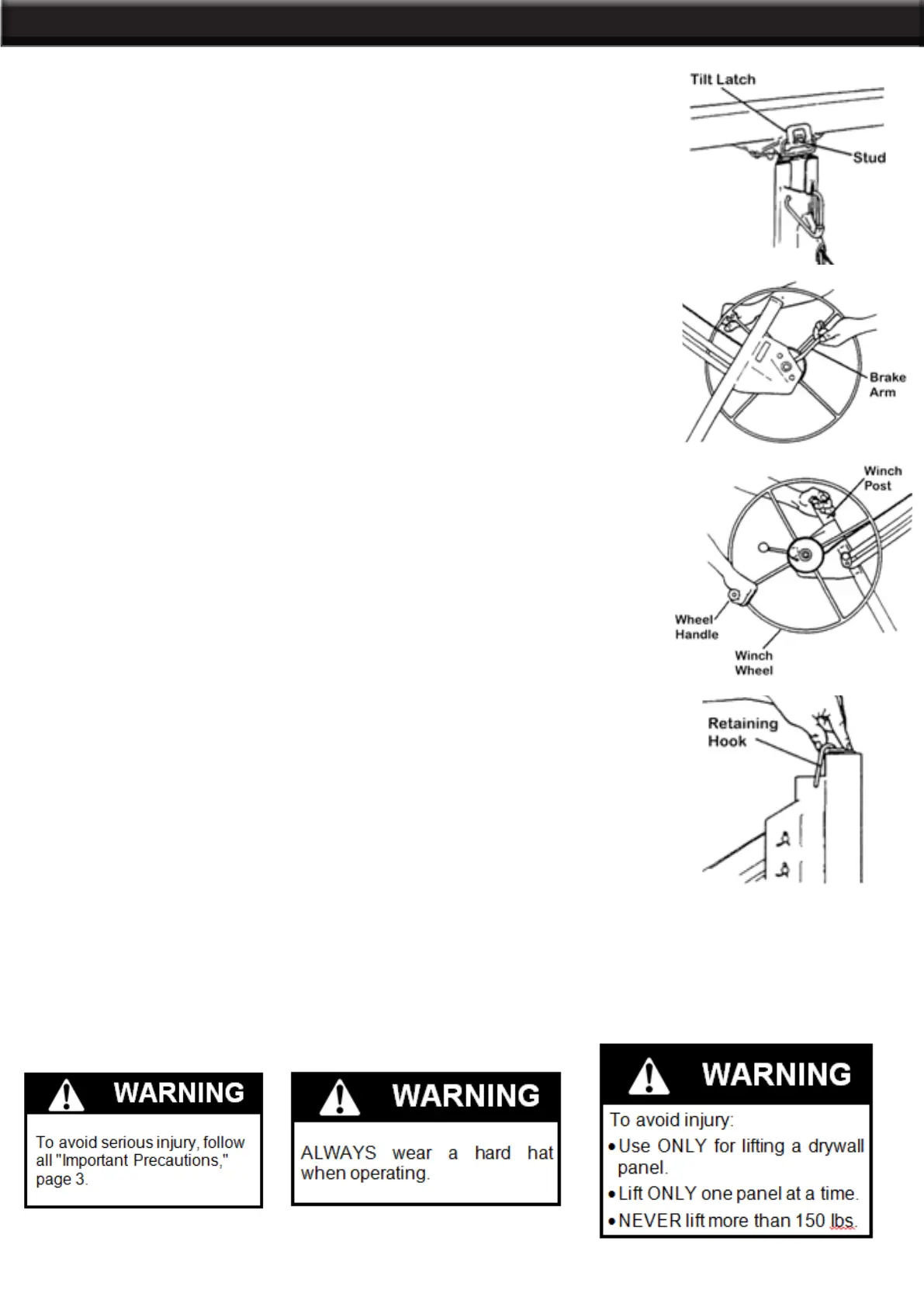

Tilt Latch
To allow the cradle to tilt (for loading a dry wall panel, or for raising the pane! to
a side wall or sloped ceiling); or to remove the cradle from the frame, pivot the
tilt latch out and down. To lock the cradle onto the frame without tilting, pivot
the latch up to engage the stud on the cradle.
NOTE: When it is in the level (non-tilted) position, the cradle will also tilt up to
10° side-to-side.
A spring-loaded brake holds the cradle at whatever height you raise it by
cranking the winch wheel. To lower the cradle, control the backward rotation of
the winch by grasping the wheel handle as you carefully raise the brake arm
to release the brake.
Brake Arm
Winch Wheel, Handle, and Post
Cranking the winch (using the wheel handle) coils or uncoils the cable that
raises or lowers the cradle. Grasp the post for leverage when cranking the
winch
OPERATION
Retaining Hook
The retaining hook secures the telescoping sections inside the frame, for
transport and storage.
OPERATION
Extending the Cradle
IMPORTANT: Read the “Important Precautions” on page 3 before you
operate the Lift.
SAFETY CHECK BEFORE OPERATION
Before you begin operating the Lift each day:
• Inspect the unit carefully for wear or damage. Pay special attention to the
cable.
• Be sure the Lift is at working room temperature before operating.
• Be sure the winch brake drum is clean and dry before operating.
