IMPORTANT SAFETY INFORMATION
Check with a qualied electrician or service personnel if the grounding
instructions are not completely understood, or if in doubt as to whether
the compressor is properly grounded.
Repair or replace damaged or worn cord immediately.

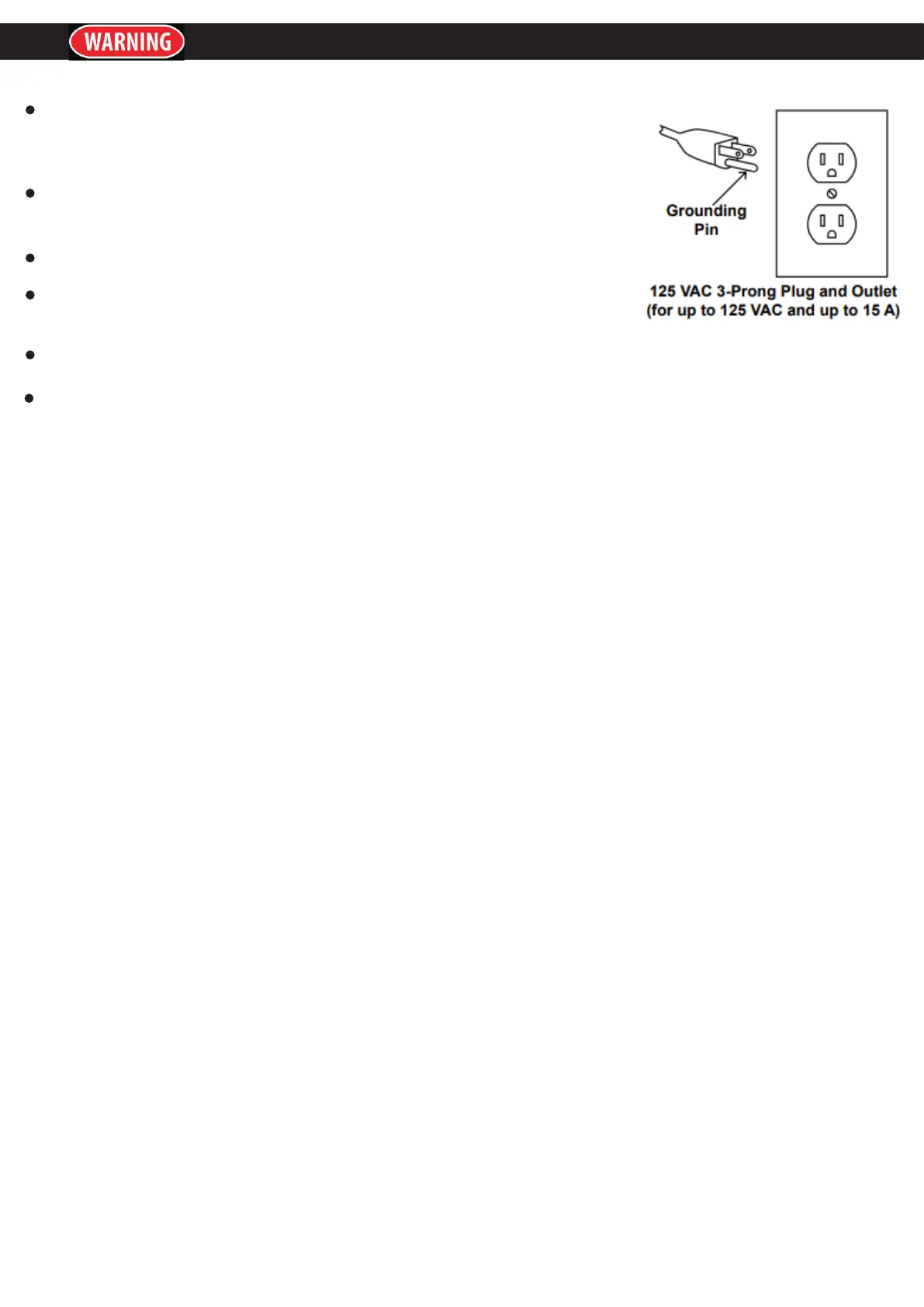

Use only 3-wire extension cords that have 3-prong grounding plugs and
3-pole receptacles that accept the compressor’s plug.
The outlet must be properly installed and grounded in accordance with
all codes and ordinances.
Do not use an adapter to connect this compressor to a different outlet.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the power Switch “OFF”
and unplug the air compressor from its electrical outlet before assembling or making any adjustments
to the compressor.
BEFORE OPERATING YOUR NEW COMPRESSOR:
1. On the top front of the compressor you will nd a white plastic shipping plug inserted into the Oil
Filler Hole. Remove the shipping plug and replace it by pressing the red Oil Filler Plug (in parts bag)
into the Oil Filler Hole.
2. Also, supplied in the parts bag you will nd a black Air Breather Assembly. Screw the Assembly into
the hole on the side and at the top of the Compressor Head.
3. Using the Sight Glass built into the lower front area of the compressor, just behind the regulator,
check the oil level. It should be at the halfway mark on the sight glass for operation. If it is necessary
to add oil, use any standard compressor oil available at major retailers.
4. There are two Air Outlet ttings on the regulator. Air ow for one tting is operated by turning the
regulator handle. The other is a free ow directly from the tank. Screw either a metal cap or a quick
coupler (not supplied) onto the free-owing tting before starting the compressor. Use nylon thread
seal tape when working with air ttings to prevent leakage.
BRIEF DESCRIPTION
This micro features advantages such as compact construction, easy operation, lightweight and quite
operation. It can be used in a wide variety of applications such as spray painting, automatic control
system and other elds where compressed air is required.
BEFORE OPERATING YOUR NEW COMPRESSOR:
1. Connect a regulator valve, an in-line shut off valve and a 1/4” NPT air hose to the Quick Coupler
(all sold separately). The air hose must be long enough to reach the work area with enough extra
length to allow free movement while working.
2. Depending on the tool that will be used with this compressor, incorporate additional components,
such as an in-line oiler, a lter, or a dryer (all sold separately).
To Next Page
