Starmatrix Clever-Pool/220V - Wire Connection and Description for 5 Hp Ac380 V Three Phase in - Three Phase out; Running; Check before Running

8.Must use the copper wires over 4G2.0mm
2
9.Power supply connected only after the
control panel is fixed,
2.Check if any metal substances left in the product.
3.Check if wire terminals are well tightened.
4.Check if there are naked wires on the terminals touching other terminals.
3.2.3 WIRE CONNECTION AND DESCRIPTION FOR 5HP AC380V THREE PHASE IN - THREE PHASE OUT

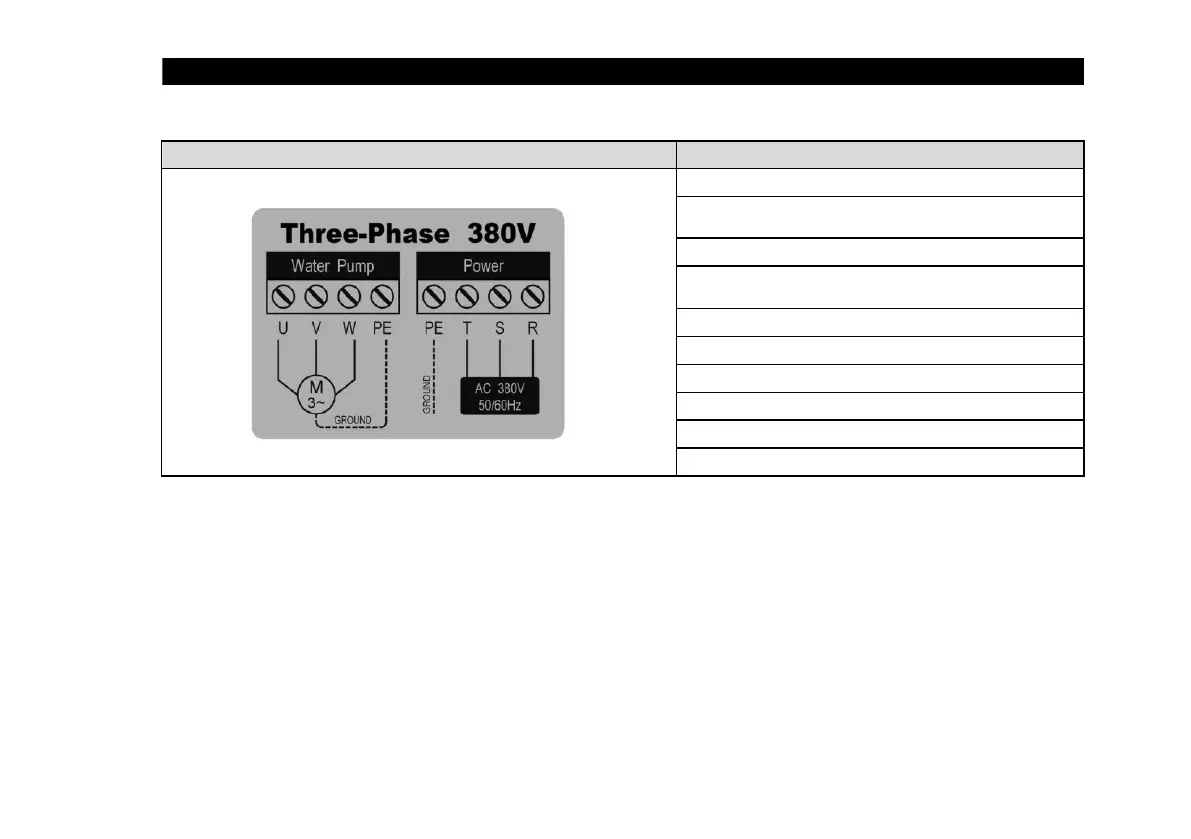

WIRE CONNECTION SKETCH
Procedure and instruction
1.Disconnect power before opening the control panel.
2.Make sure no connection between PE,T,S,R termials and
U,V W terminals.
3.Wire connection operated only when power disconnected.
4.Check if the input voltage from the power supply is
compliance with clever-pool.
5.No voltage duration test
6.Screw torque for terminal screws more than 1.7N.m
7.Ground link must be connected before operation.
3. INSTALLATION AND FUNCTION EXPLANATION
3.3 RUNNING AND OPERATION
3.3.1 BEFORE RUNNING AND OPERATION
1.Check if installation and wire connection is 100% correct.
