Starmatrix Clever-Pool/220V - Wire Connection and Description for 3 Hp Ac220 V Single Phase in - Three Phase out

3. INSTALLATION AND FUNCTION EXPLANATION
3.2.2 WIRE CONNECTION AND DESCRIPTION FOR 3HP AC220V SINGLE PHASE IN - THREE PHASE OUT

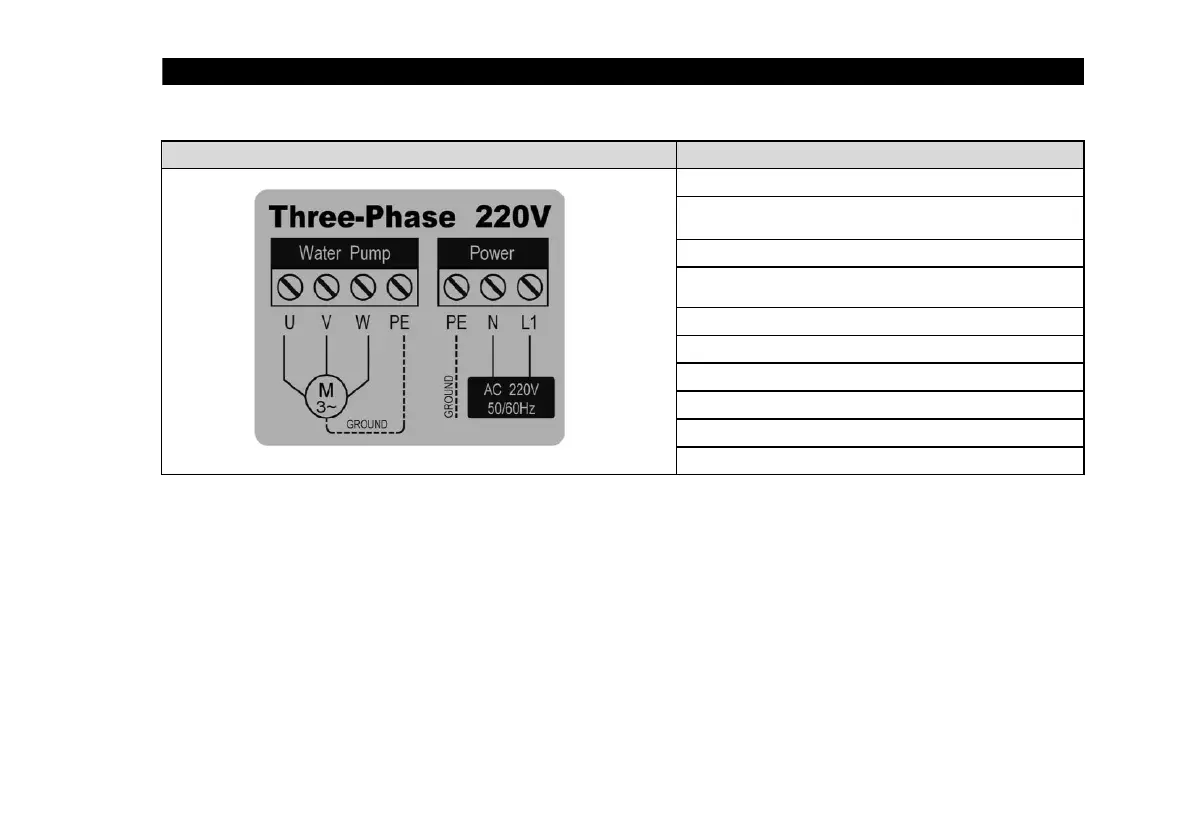

WIRE CONNECTION SKETCH
3.Wire connection operated only when power disconnected.
4.Check if the input voltage from the power supply is
compliance with clever-pool.
5.No voltage duration test
6.Screw torque for terminal screws more than 1.7N.m
7.Ground link must be connected before operation.
8.Must use the copper wires over 3G2.0mm
2
9.Power supply connected only after the
control panel is fixed,
Procedure and instruction
1.Disconnect power before opening the control panel.
2.Make sure no connection between PE,N,L1 termials and
U,V,W terminals.
- 9 -
