3.2 WIRE CONNECTION

Wires has been preconnected before factory delivery as per request, if you need to

re-connect the wires, please pay attention as below:

3.2.1 WIRE CONNECTION AND DESCRIPTION FOR 2HP AC220V SINGLE PHASE IN - SINGLE PHASE OUT

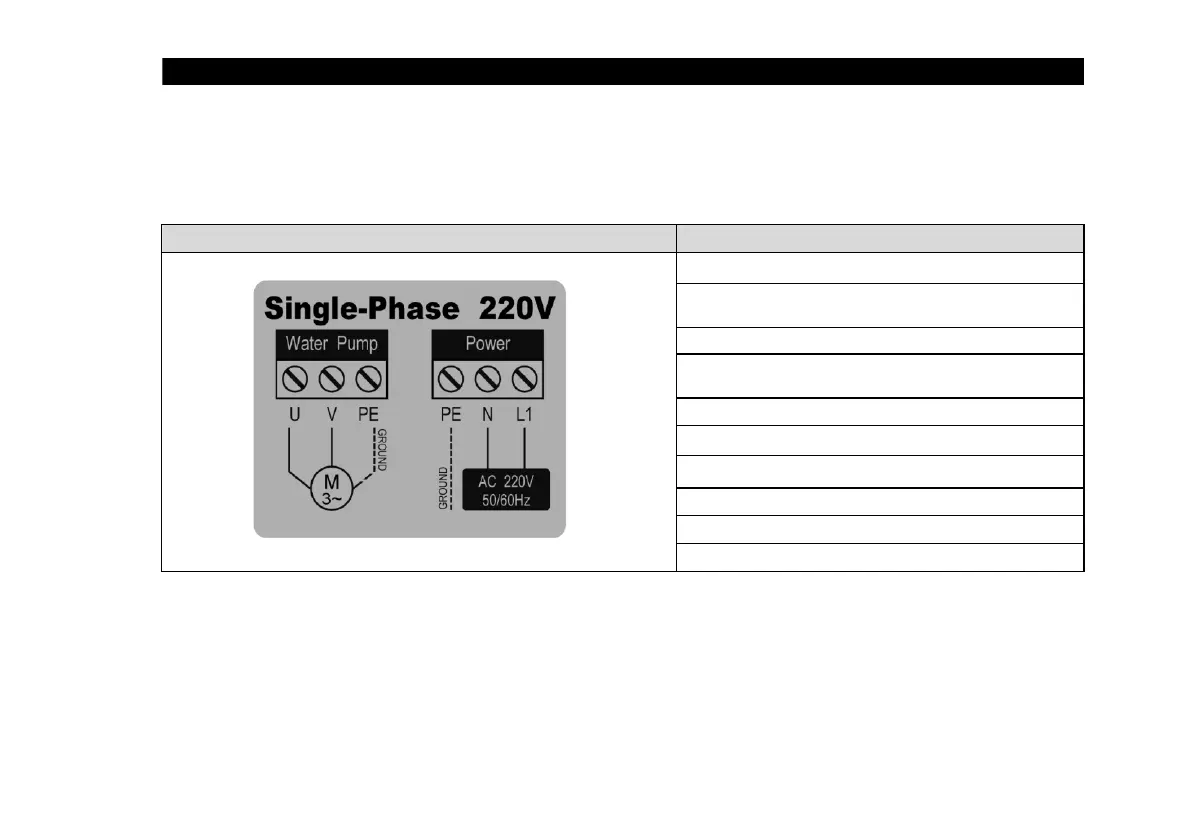

WIRE CONNECTION SKETCH

Procedure and instruction

3. INSTALLATION AND FUNCTION EXPLANATION

9.Power supply connected only after the

control panel is fixed,

1.Disconnect power before opening the control panel.

2.Make sure no connection between PE,N,L1 termials and

U,V terminals.

3.Wire connection operated only when power disconnected.

4.Check if the input voltage from the power supply is

compliance with clever-pool.

5.No voltage duration test

6.Screw torque for terminal screws more than 1.7N.m

7.Ground link must be connected before operation.

8.Must use the copper wires over 3G1.5mm

- 8 -
