Introduction
■ Various Video Input for Modulation Output
MX-100, MX-200, or MX-300 is a single channel High-Definition (HD) modulator to deliver various
video/audio digital/analog sources over coaxial cable. HD video output resolution supported can be
up to 1080p@60fps with adjustable output power level from 70 to 100
dBµV
in 1 dB step.
Output frequency range is 50 MHz to 900 MHz in 6 MHz, 7 MHz or 8 MHz channel bandwidth
depending on the modulation technique.
The operation of modulators is intuitive by using on-panel keypad and 2” color LCD screen or Web
based configuration pages.
1
MX-100R, MX-200 and MX-300 HD Modulator
■
Input
● HDMI
● CVBS (RCA A/V) (MX-200 & MX-300)
● 3G-SDI (MX-300 only)
● RF 75Ω F in ATSC (8VSB) or J.83B QAM
■
Output
● RF 75Ω F in ATSC (8VSB) or J.83B QAM

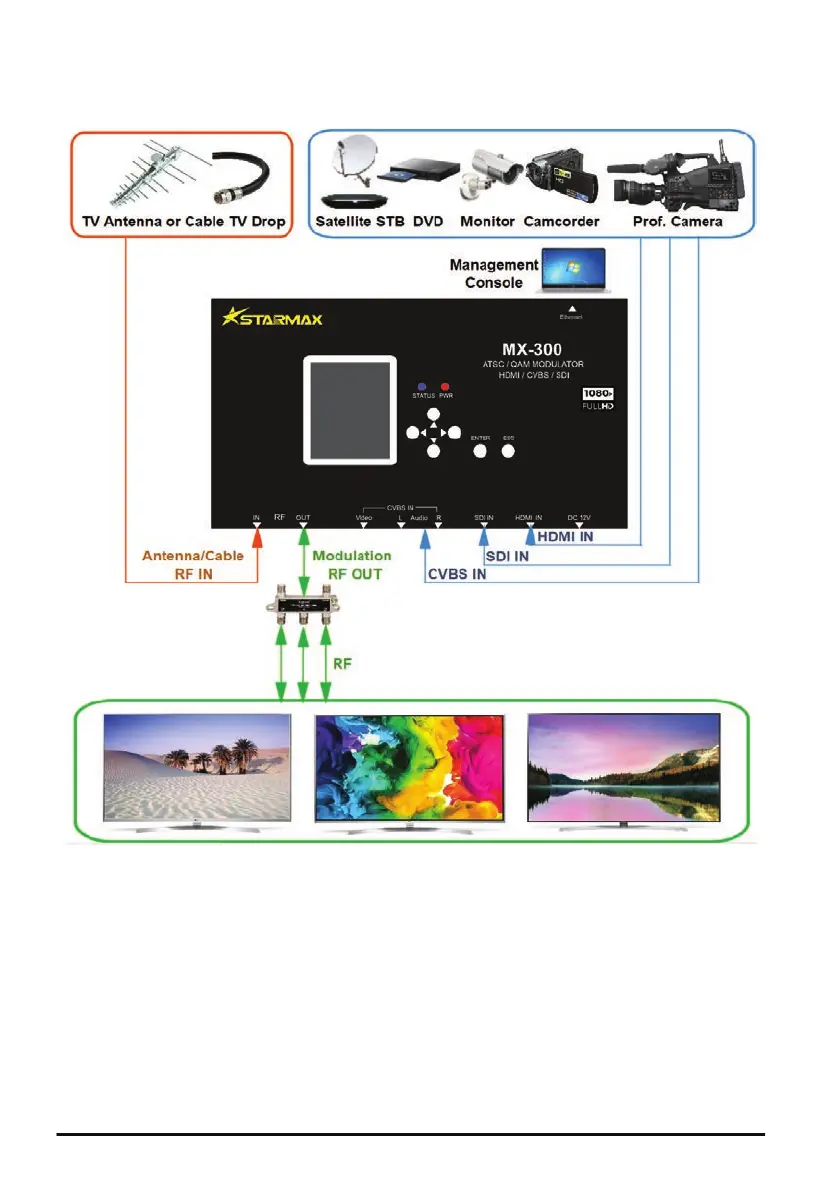

** MX-300 shown is used for reference of application diagram only.
Interface of MX-100R and MX-200 varies.
