Overview
■ Package Content
• MX-100R or MX-200 or MX-300 modulator with
mounting brackets and screws
• Mini USB-male / A-male cable (MX-100R only)
• AC/DC power adapter
• User Guide
• 2” color LCD
• Keypad
• Return or escape to
upper level menu and
cancel the current
operation
•
◄►▲▼ Arrow keys to traverse
between menu items or
increase / decrease
selected parameter value
• Confirm the selection
• LEDs
• PWR solid red Power is up
• STATUS solid blue Unit is on-air

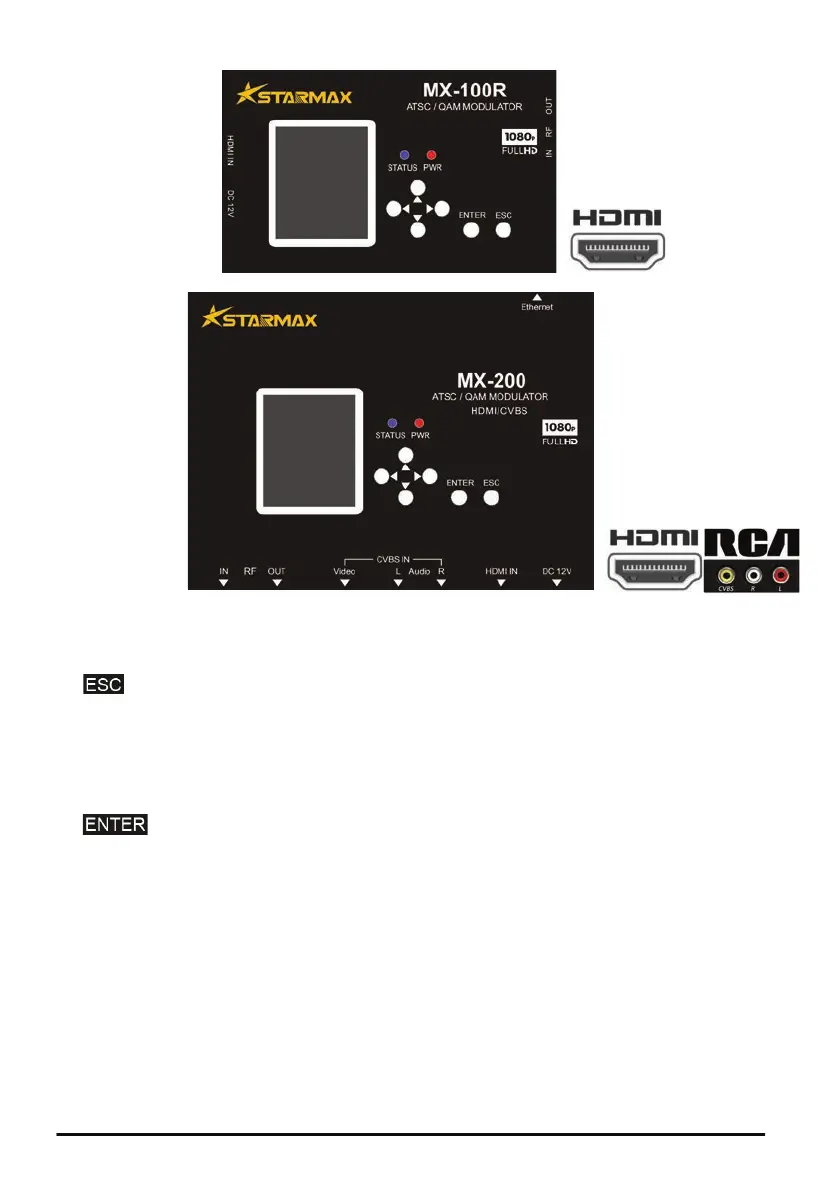

■ Operation Panel
• Available video/audio source from
Cable TV, antenna, HDMI, CVBS or SDI device
• Available TV set
• Available electrical power socket
Front/Side Panel
• RF OUT Modulated RF output, 75Ω F
• RF IN Antenna or Cable RF Input, 75Ω F
• Video IN CVBS AV Input (MX-200 & MX-300)
Audio Left/Right IN
• HDMI IN HDMI Input
• SDI IN 3G SDI Input (MX-300 only)
• DC 12V DC Power Input
Back Panel (for software upgrade and Web configuration)
• 1000Base-T Gigabit Ethernet, RJ-45 (MX-200 & MX-300)
• Mini USB 1 USB for software upgrade (MX-100R only)
• Mini USB 2 USB for configuration (MX-100R only)
• Cable TV (North America) J.83B QAM
• Over-the-Air TV (North America) ATSC (8VSB), ATSC 3.0
• Cable TV (Europe, South America) DVB-C (J.83A/C)
• Over-the-Air TV (Europe, Colombia) DVB-T
• Over-the-Air (South America) ISDB-T(b)
■ Installation Requirement
■ Peripheral Interface
■ TV Standards
