b. SDRP Cable Harness Assembly
The SDRP Cable Harness PN 830006 provides the connection between the SDRP and
field wiring. The SDRP Cable Harness is available in two separate configurations – pre-
terminated and unterminated. The pre-terminated version PN 830006 uses Deutsch
DTM series connectors and a single MIL-Std circular connector. The unterminated
version is provided with unstripped output cables. Both cable versions use color coded
ty wraps along with labels which indicate the cable/wire function.
Note: It’s important to note that while the Stat-X generators are not polarized, the Alarm
Test Module PN 830002 which connects to the actuation circuits is polarized.

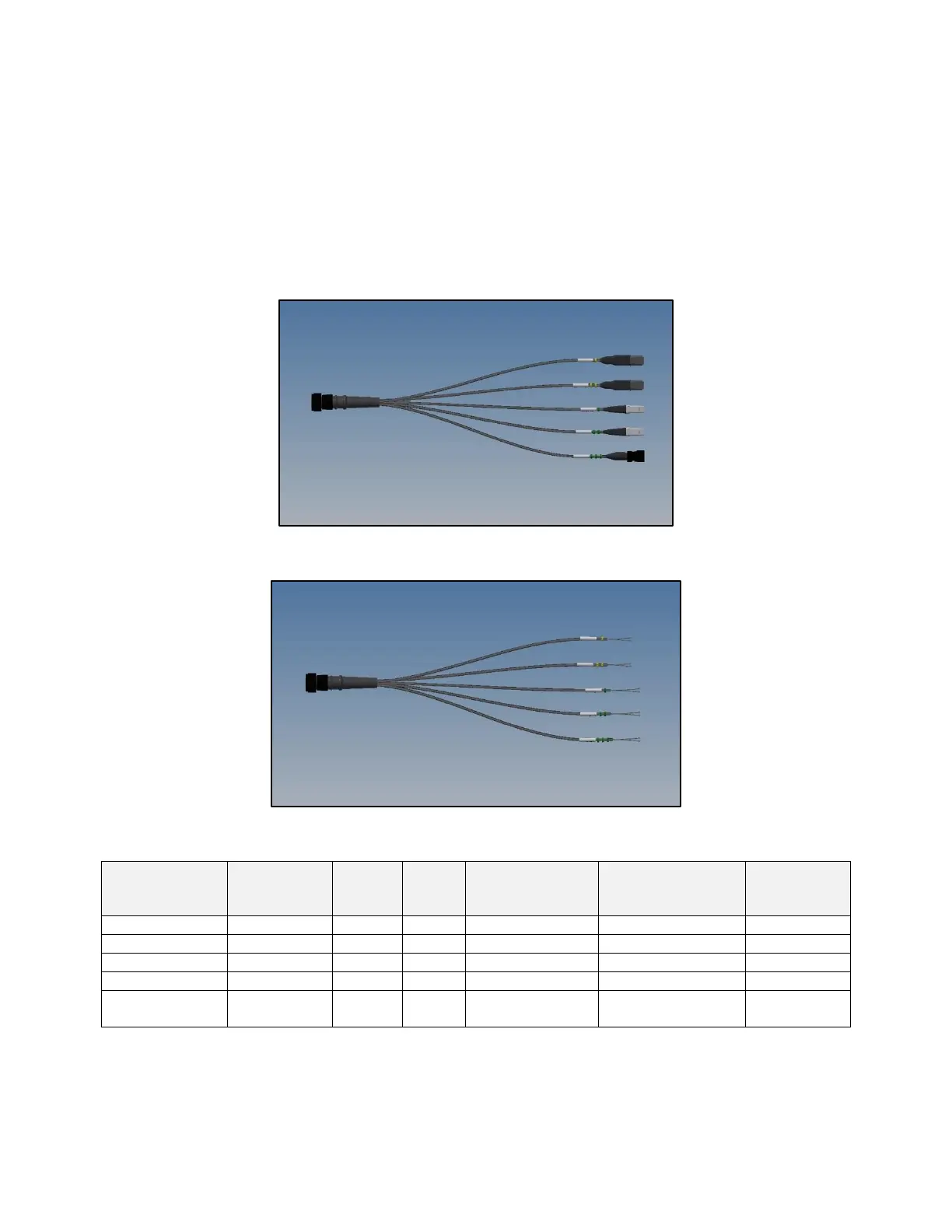

Figure 5 - Terminated Cable Assy part no. 830006
Figure 6 - Unterminated Cable Assy PN. 830006-01
