Page 27
The sensor positions are set in the factory prior to despatch to suit standard Statebourne inventory control
systems (liquid or vapour phase) or can be set at any height in between to customers own specification,
although the height between each sensor is fixed and cannot be altered.
A-2

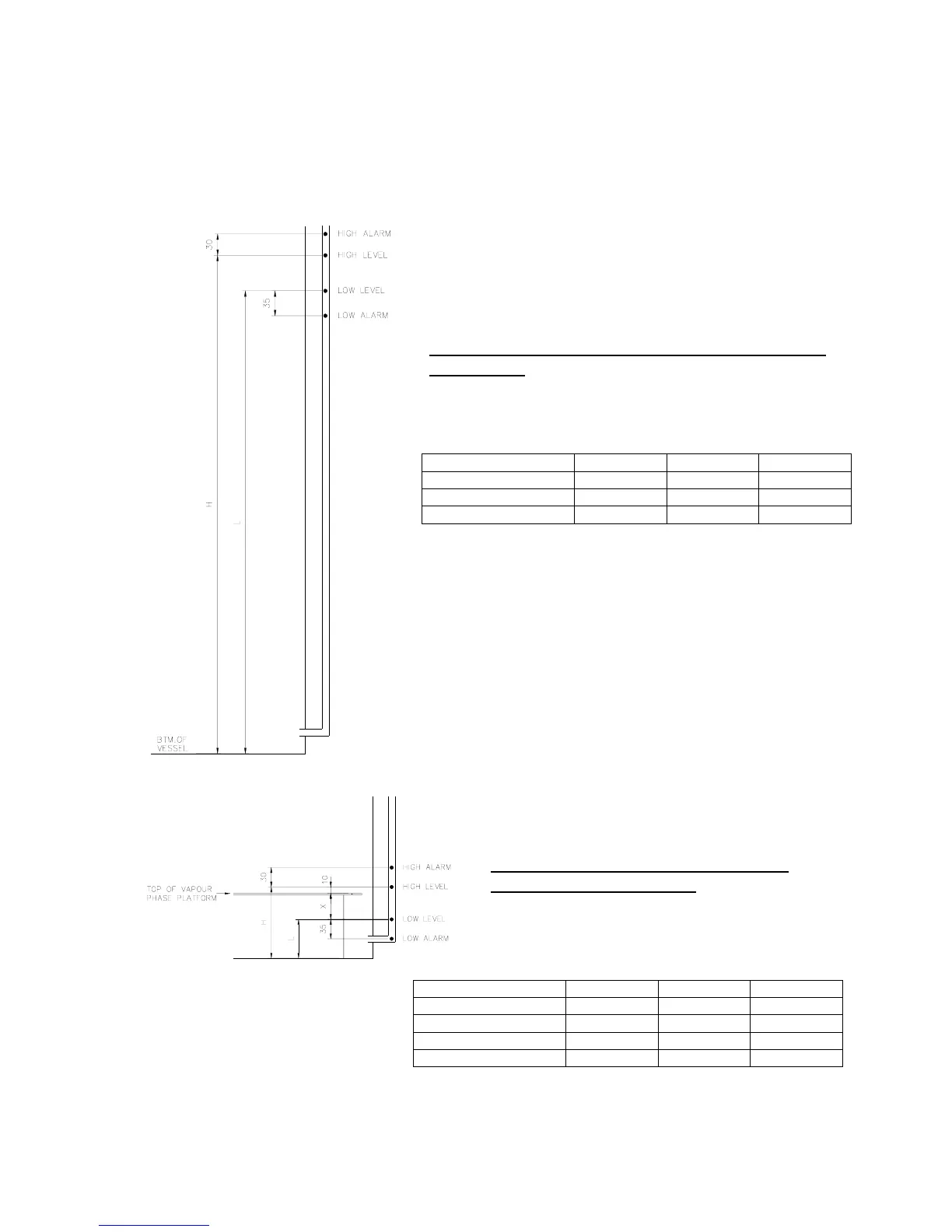

Standard Statebourne liquid phase ICS/level sensor heights –
Access Series.
This is the maximum liquid depth that can be
achieved and the sensors should not be raised
any higher otherwise damage to the lid may occur.
BM12 BM24 BM50
DIM H (mm)/VOL (L) 595/178 685/334 760/760
DIM L (mm)/VOL (L) 545/163 635/310 725/725
VOL.PER FILL (L) 15 24 35
Standard Statebourne vapour phase ICS/level
sensor heights – Access Series.
This is the minimum liquid depth that can be
achieved and lowering of the sensors should not
be attempted.
BM12 BM24 BM50
DIM X (mm) 40 40 25
DIM H (mm)/VOL (L) 110/33 110/53 150/150
DIM L (mm)/VOL (L) 60/18 60/29 115/115
VOL.PER FILL (L) 15 24 35
