INSTALLATION
This appliance should only
be installed by a qualied
technician. Before installing
the appliance ensure that the
area that you have selected
is suitable and allows enough
ventilation for the appliance.

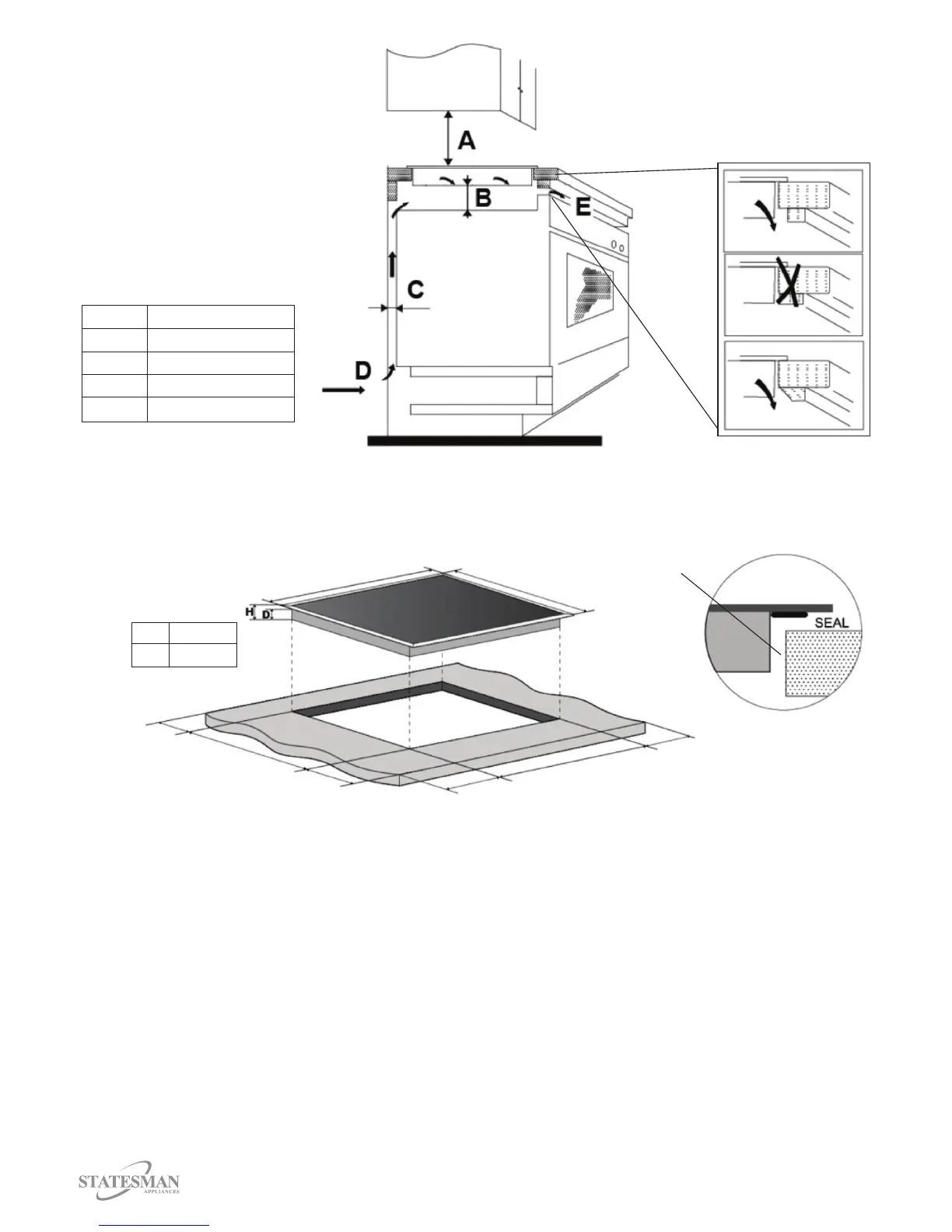

Important: Always ensure the appliance is well ventilated and the air inlet and outlet are not blocked.
A (mm) 760
B (mm) 50 min.
C (mm) 20 min.
D Air Inlet
E Air Outlet (5mm)
770mm
520mm
D 51mm
H 55mm
750mm + 5
495mm + 5
50mm min.
50mm min.
50mm min.
50mm min.
5mm
1. Cut a hole in the worktop that corresponds with the above diagram. Ensure a 5cm space is
kept around the hole and the thickness of the worktop is at least 30mm.
Important: Ensure the worktop is heat-resistant to avoid deformation caused by the heat radiation
from the cooking zones (Fig. 4).
2. To secure the appliance to the worktop you will need to add the four xing brackets.
3. Place the appliance on a smooth stable surface (use the packaging to protect the appliance)
upside down to locate the four xing holes.
4. Screw each bracket into the located holes with the screws provided.
Important: Bracket positions may need to be adjusted slightly depending on the worktop thickness
(Fig. 5).
Fig 3.
Fig 4.
