Statesman ECH77TC - Mains Power Connection and Wiring

7

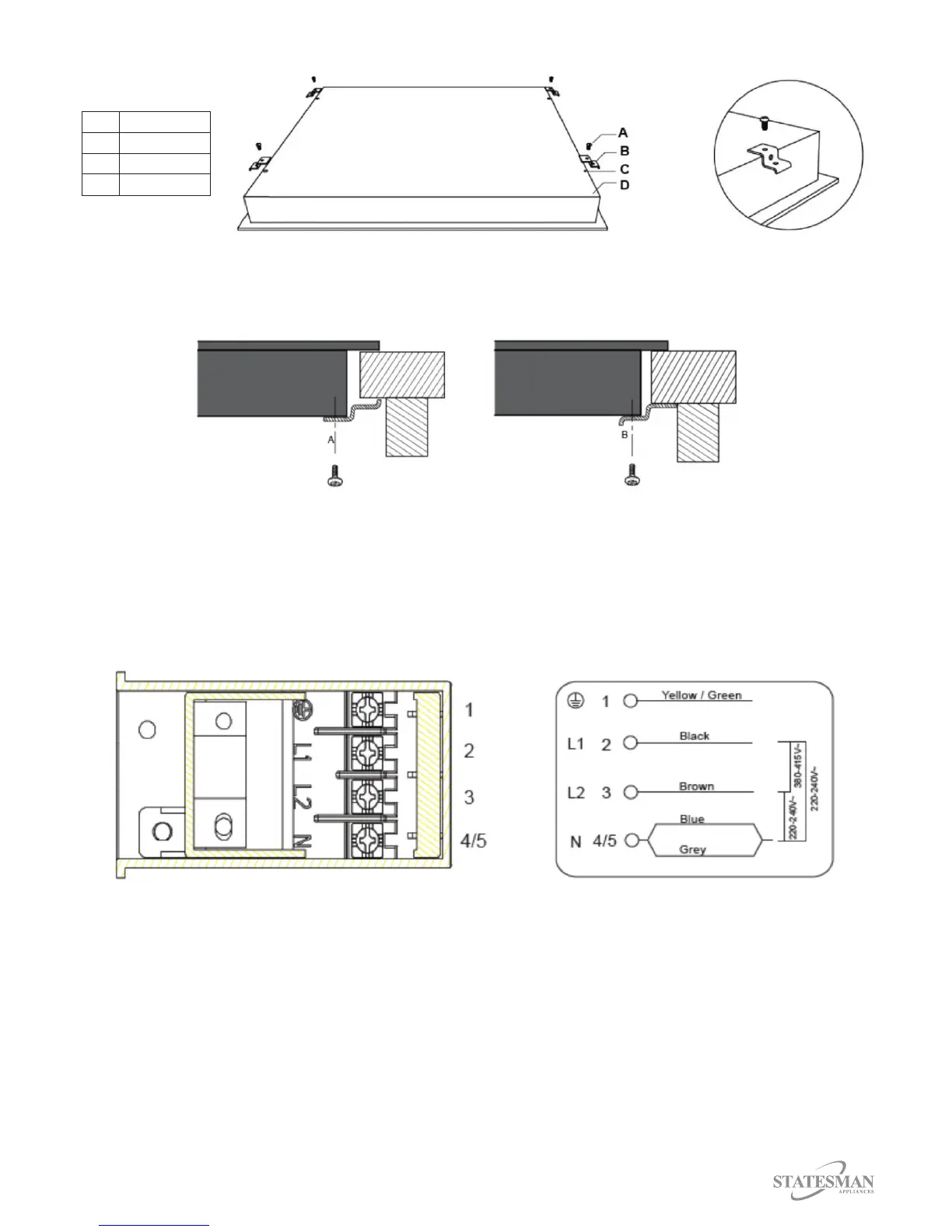

Fig 5.
A Screw
B Bracket
C Screw Hole
D Base
5. The appliance can now be inserted into the cut hole and secured to the worktop (Fig. 6).
Fig 6.
HOB
BRACKET BRACKET
WORK TOP
HOB
WORK TOP
Connecting to the Mains Power Supply
The power supply should be connected in compliance with the relevant standard, or a single-pole
circuit breaker. The method of connection is shown below.
Installation Diagram Internal Wiring
Wiring Instructions
• The Earth wire coloured Green/Yellow must be connected to the Earth terminal marked .
• The Live wire coloured Brown must be connected to the Live terminal marked L2.
• The Neutral wire coloured Blue must be connected to the Neutral terminal marked N.
• If the cable is damaged or needs replacing, this should be done by a qualied electrician using
the proper tools, so as to avoid any accidents.
• If the appliance is being connected directly to the mains supply, an Omni polar circuit breaker
must be installed with a minimum gap of 3mm between the contacts.
• The qualied technician must ensure that the correct electrical connection has been made
and that it complies with safety regulations.
• The cable must not be bent or compressed.
Fig 7.
