STC 600N - Installation and Connections; Installation Procedure; Overall View and Assembly

Nombre del Producto modelo
36
STC

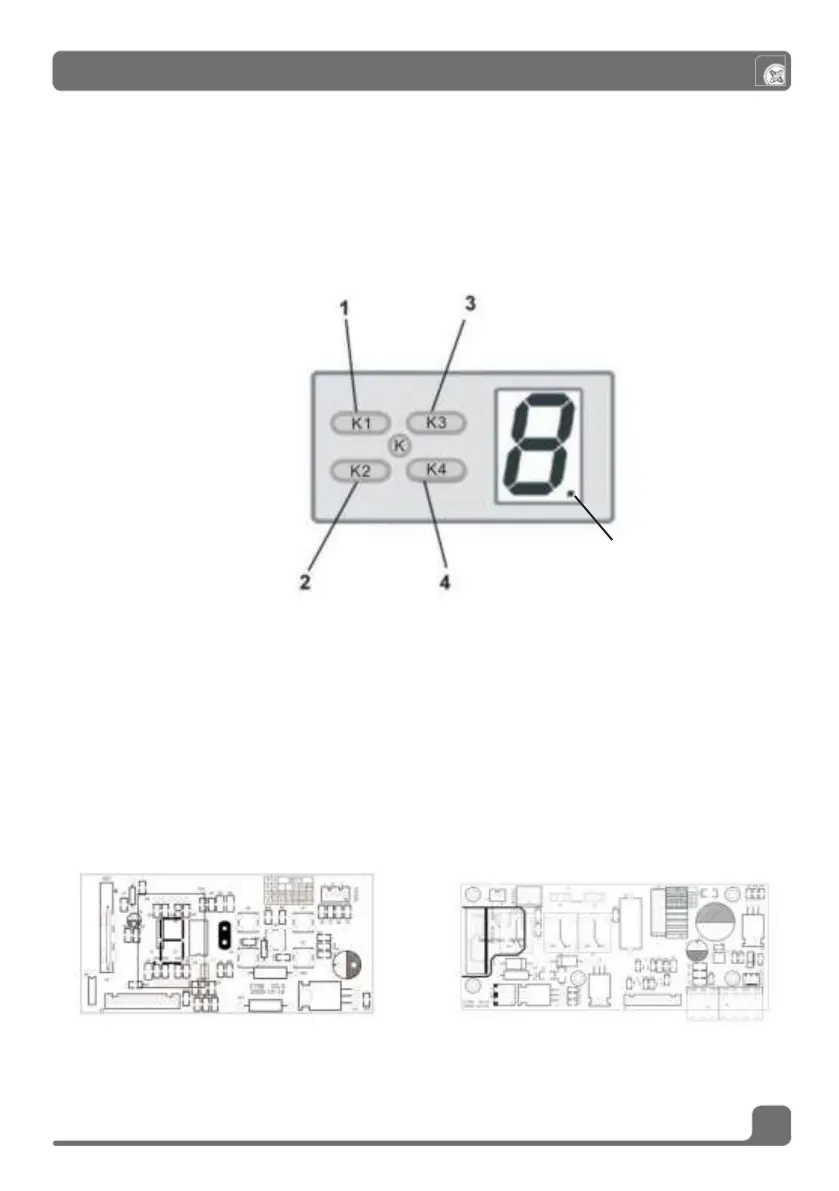

Programming buttons
1 K1 programming, confirmation, receiver shut down
3 K3 Programming for opening
4 K4 Programming for closing
Progamming Confirmation
Opening programming .
Force increase programming .
Photocell switch on programming
Automatic closing programming .
PROGRAMMING PANEL
Transmitters programming LED .
Transmitters programming .
Closing programming.
Force reduction programming .
Photocell switch off programming.
Inner and outer connections
5 Motor connection
6 Transformer connection
7 Power supply connector, beacon and transformer
8 Control panel connector
9 Connection for push-button, photocell, accessory equipment power supply
10 Beacon connection, pedestrian door security contact
6
5
7
8
10 9
