Installation instruction of controller
!
Important:
Before installing the controller, make sure the steam generator is shut off
otherwise the controller may be damaged.
!
Important:
User Manual
!
Important:
Do not install the controller under the
water pipe or in a position where water comes into contact.
!
Do not
pull tight, or clip tight
the
controller wire
in case
of causing damage to it.
before
repairing
the
controller,
make
sure
the steam
generator
is shut off otherwise the
controller
may
be
damaged.
Important:

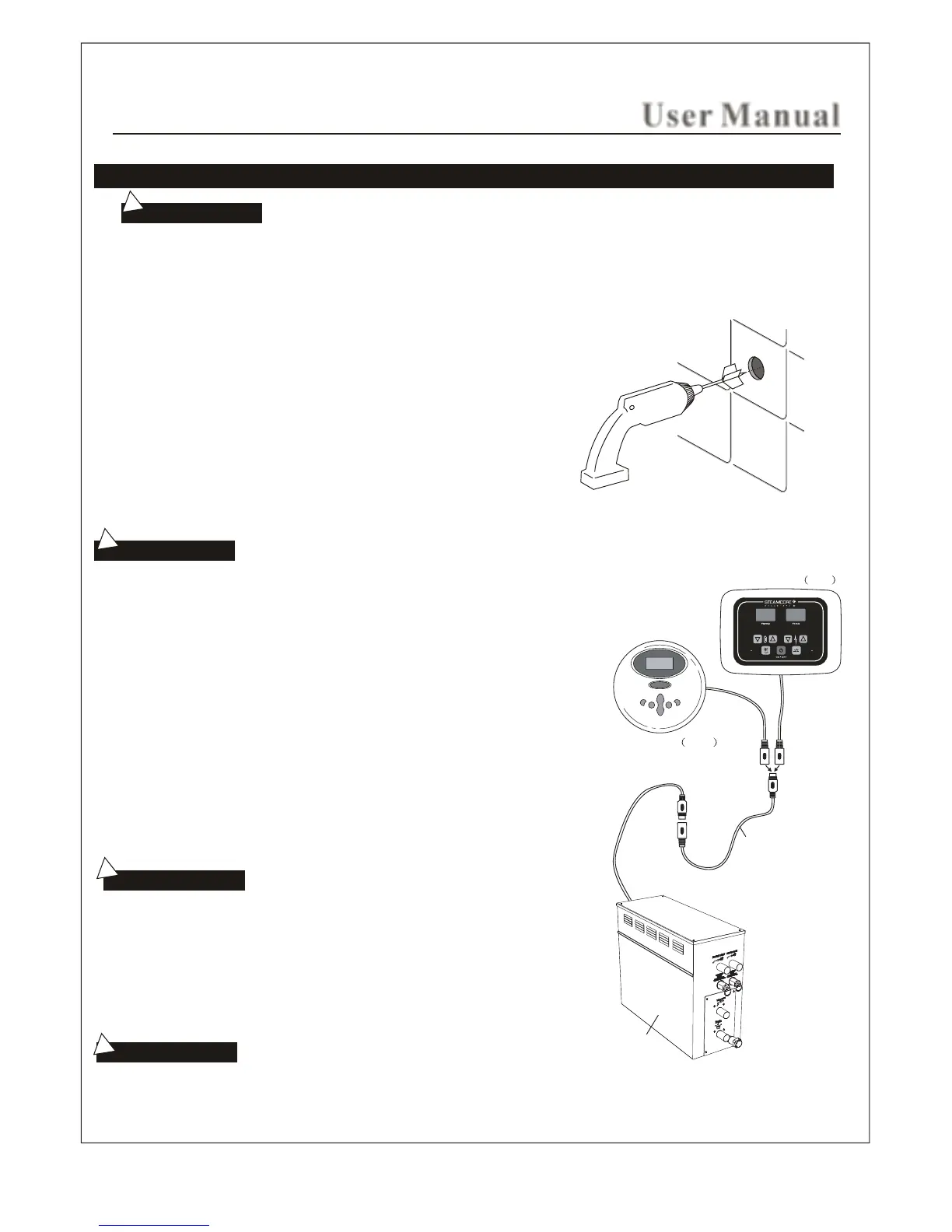

Aor
Control Panel
(1ft)
(1ft)
(20ft)
SS II
Extended wire
Steam Generator
Control Panel SS I
STEP 1
STEP 2
STEP 3
STEP 4
Determine the installation location of the controller. The controller is designed
to be installed in the steam room.
1. 4 - 5 ft from the finished steam room floor.
2. Away (not above) from the steam nozzle(s) and do not expose under
the direct path of steam.
3. Installation on vertical walls only.
4. The position of the installation should facilitate easy operation and
convenience of wiring. The controller wire is 1 ft long, with a supplied
20 ft extension control cable. The max length between the generator
and the controller should not exceed 20 ft at most. If longer lengths is
of control cable is needed, additional 20 ft cables can be purchased at
an extra cost. The max length of jointable cable run should not exceed
60 ft (3 cable sets of 20 ft).
Drill a hole of 1.5 inches (35mm) diameter. No larger or smaller.
Pull the controller cable through the round hole, connect it to the controller.
Make sure when installing the 20 ft cable that it is placed in the proper direction.
Make sure that the ends are corresponding with the controller and steam
generator plugs. When attaching the controller ends, do NOT twist, aim the
ends with the marked arrows and insert horizontally wit out twisting. Take
PRECAUTION to not damage the pins on each end of the controller cables.
Do the same if unplugging is needed.
Before activiating the main power supply, make sure there are no water
leaks and that all wiring connections are adequately tightened and secure.
Operate steam generator and make sure all items on the page function well.
17
