Electrical requirements:
All the connections must be in accordance with national and local
electricity consumption code and be installed by professional licensed electricians.
Attention:
to facilitate maintenance, keep the steam engine clean. If the information
provided is limited, do not touch the pipeline and electric equipment.
Attention:
Caution: to avoid damage to the equipment, do not connect strong electric current
directly to the components.

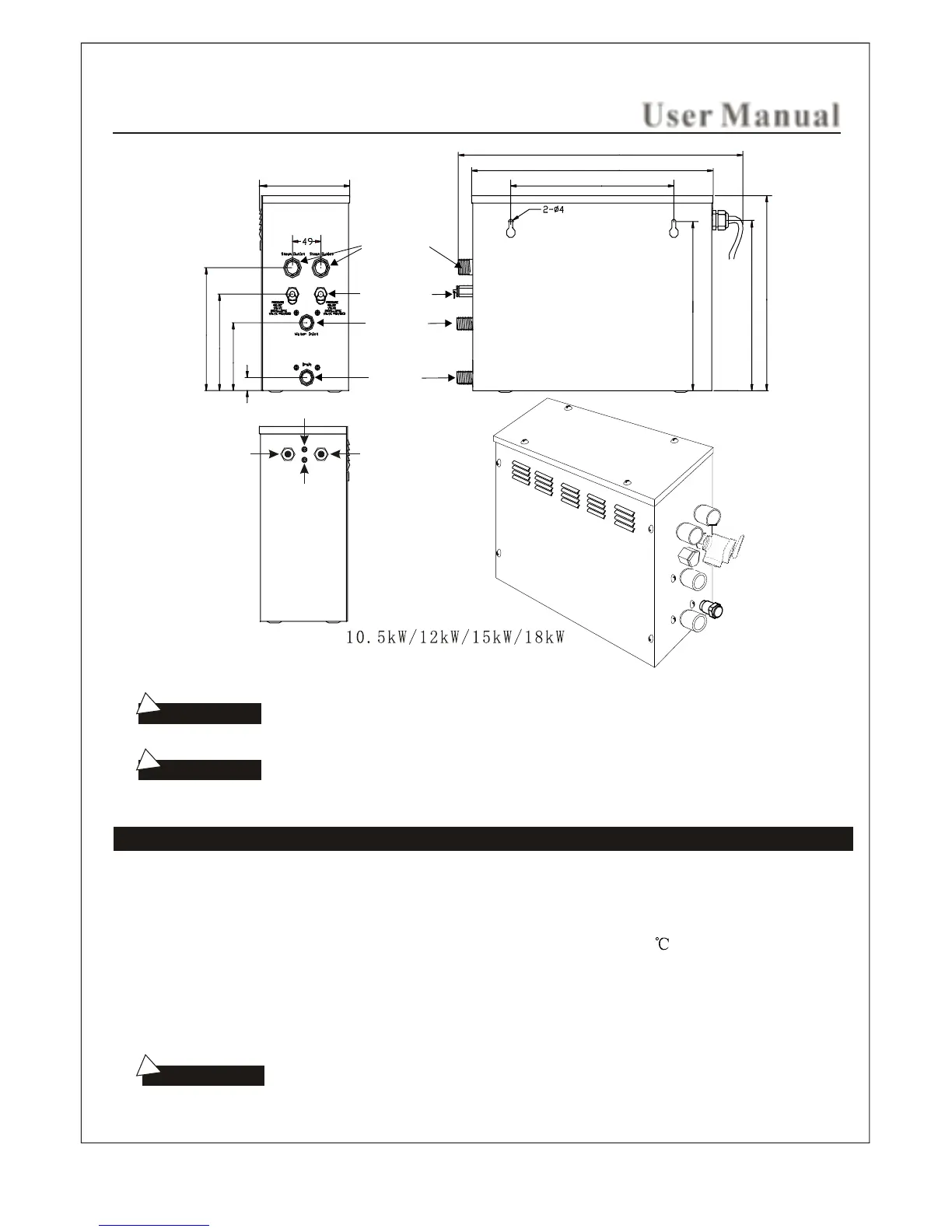

510mm
435mm
Steam outlet
Safety valve
Water inlet
Water
drainage
Fuse for wire power supply
Power wire hole
Controller wire
and light wire hole
300mm
340mm
350mm
385mm
205mm
265mm
215mm
142mm
28mm
User Manual
Fuse for wire
power supply
(metal conduit connector
required)
ELECTRICAL SUPPLY:
1. Test the voltage of electricity supplied to the steam generator, make sure the correct voltage is supplied
to the steam generator. Make sure ALL connections have been adequately torqued.
2. Insulated copper wire should be used with an anti-heat temperature of no less then 90 and a specified
voltage of 300V. Refer to your national or local electrical codefor specifications.
3. Intall an independant circuit breaker between the power supply and the steam generator unit in order to
provide an electricity supply with overload protection and electricity leakage protection.
4. A suitable metal conduit with connector should be used for the main power wiring connections. ALWAYS
disconnect the main power supply to the steam generator prior to attempting any service to the generator.
