CONNECTING POLE TOP

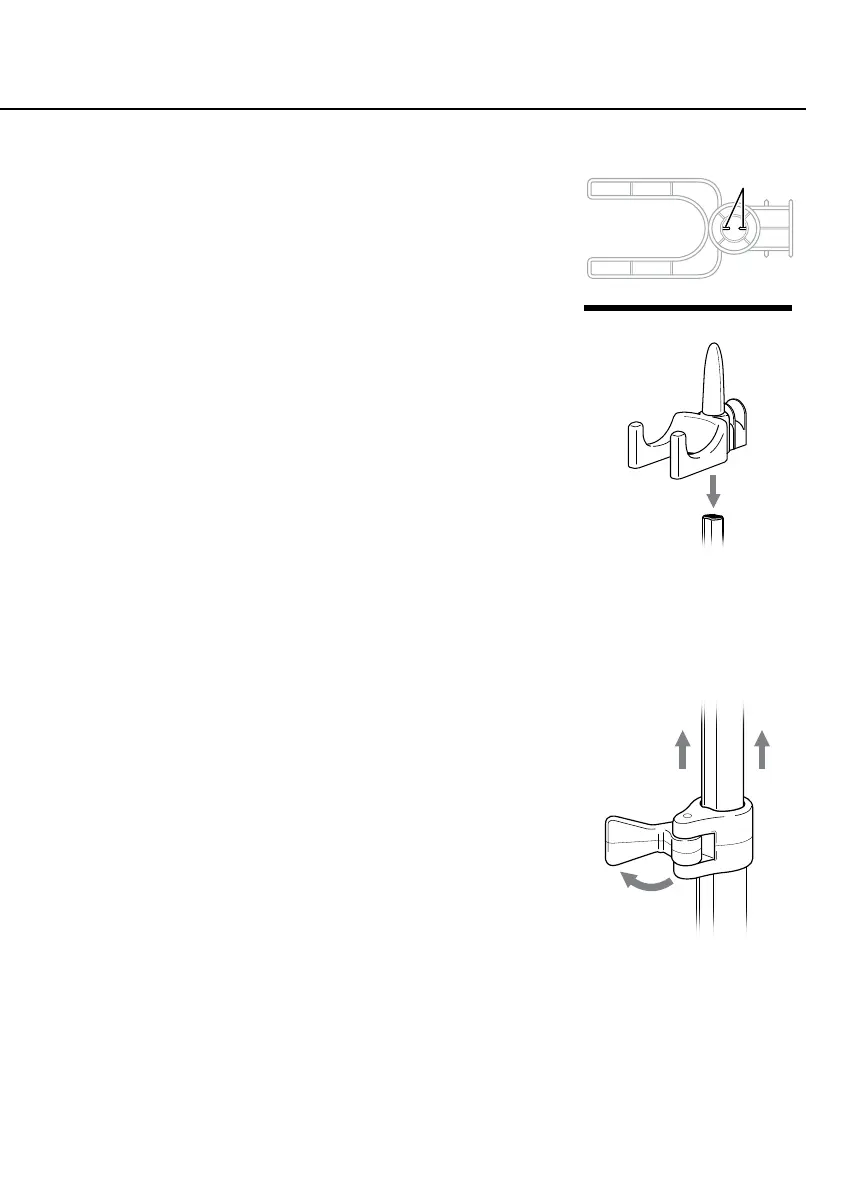

1. Look at underside of Pole Top, and locate two guide tabs
(FIGURE 3-A).
2. Align Pole Top guide tabs with guide grooves on SECTION 1
of Telescopic Pole.
NOTE: It is recommended to orient Pole Top so Nozzle
Cradle faces forwards towards front of the unit.
3. Slide Pole Top onto SECTION 1 of Telescopic Pole (FIGURE 3-B).
Press down rmly until Pole Top ts securely in place.
CAUTION: To prevent steam from causing bodily injury or
damage to surfaces, always hang Steam Nozzle on Steam
Nozzle Cradle when not in use. Do not lay Hose on the oor
as condensation may build up, causing unwanted water
droplets in the steam.
ADJUSTING TELESCOPIC POLE
To adjust the length of SECTIONS 1, 2 & 3 of the Telescopic Pole:
1. Release extension lock directly below SECTION 1 by swinging
hinge outward as shown. SECTION 1 can then be extended /
retracted (FIGURE 4).
2. Once SECTION 1 is at desired length, close hinge to once again
secure extension lock.
3. Repeat STEPS 1 & 2 for SECTIONS 2 & 3 of the Telescopic Pole,
using the extension lock directly below each of those sections.
NOTE: It is recommended to extend Telescopic Pole to its full
height during steamer operation; this will ensure optimal
steam ow through the Hose.
FIGURE 4
FIGURE 3
3-A
3-B
