Steamtec KSA-Elegance - Page 6

________________________________________________________________________________
TOLO SAUNA info@tolosauna.com www.tolosauna.com
6
NL1 L2 L3
No connecting
N
U
In p ut
V W
N
Over-heat
protection
KSA-Elegance
CONTROLLER
Room Temp
Sensor
LAMP DC12V LED
Output2
Input
Output1
N
Sauna heater
L3L2L1 NNL1 L2 L3
SAUNA HEATER
9～15kW
380-415V
3N～ 50/60Hz
U2 V2 W2 U1 V1 W1

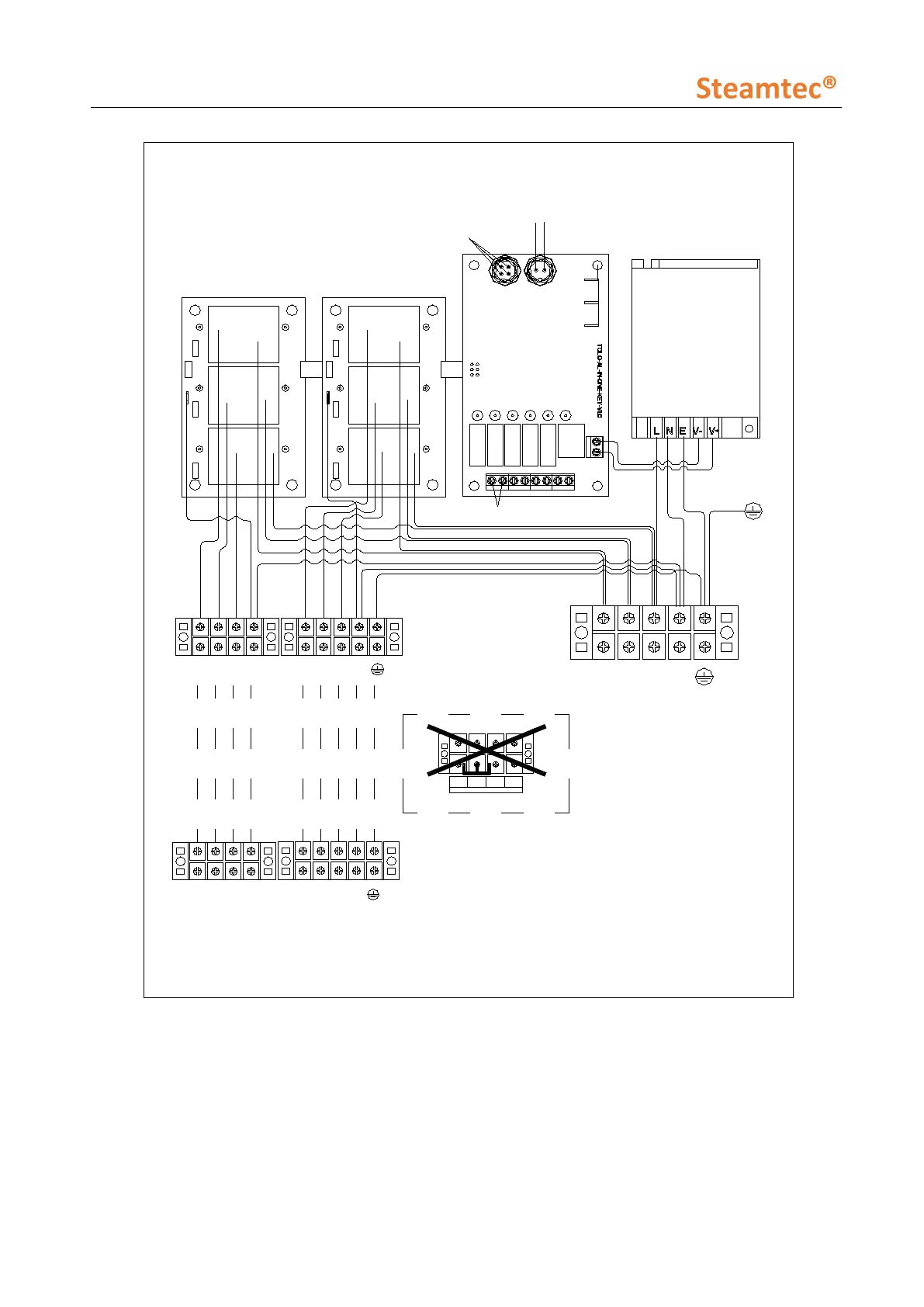

Figure 5
POWER INPUT
CONNECT TO SAUNA HEATER
10.5 KW -15 KW
European
380-415V 3 Phase
