E-17

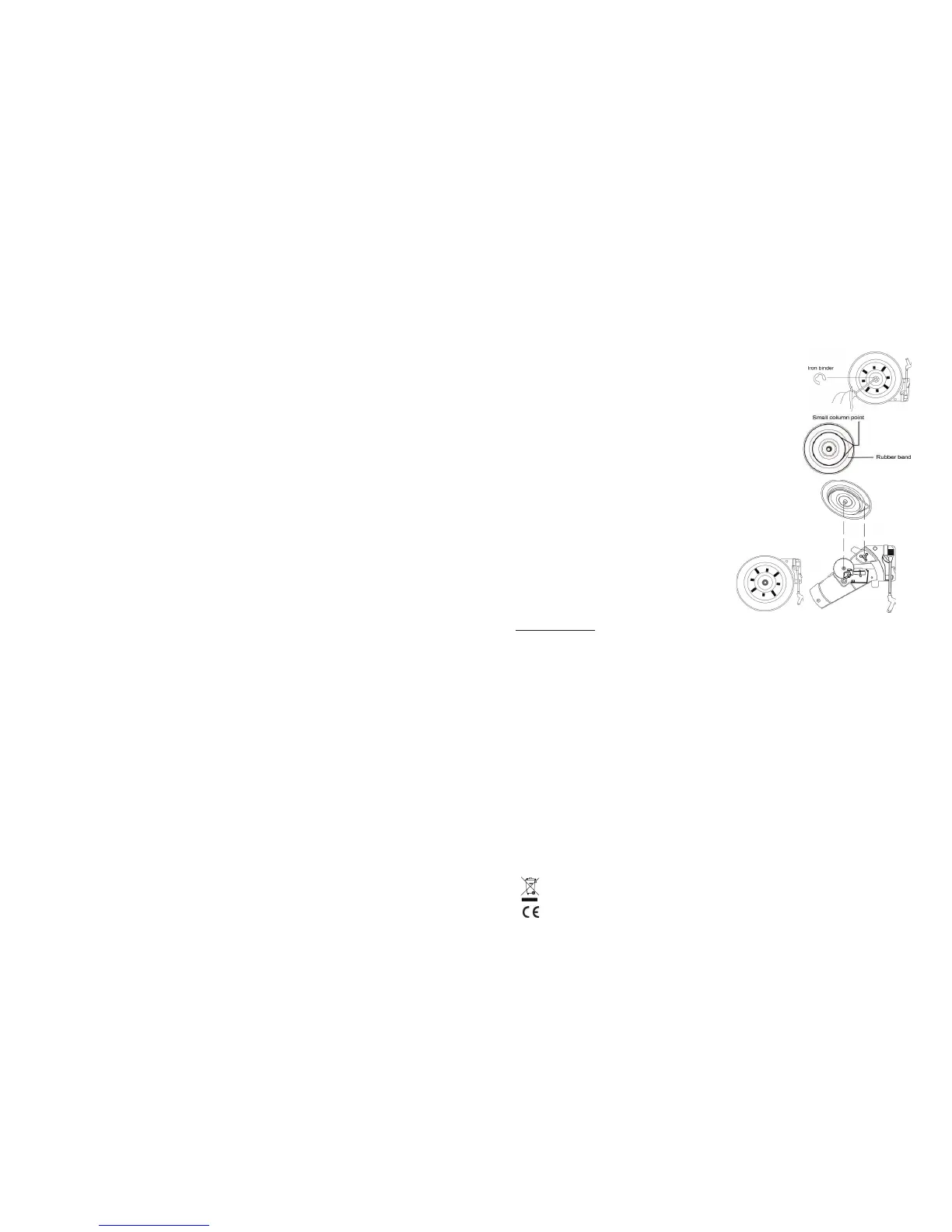

RE-ATTACHING THE TURNTABLE DRIVE BELT
THE TURNTABLE DRIVE BELT IS FACTORY FITTED - USE THESE INSTRUCTIONS ONLY IF THE TURNTABLE FAILS TO ROTATE ....
OCCASIONALLY THIS MAY HAPPEN AFTER TRANSPORTATION OR ROUGH HANDLING DURING SHIPPING BY COURIERS. TO
CHECK IF THE DRIVE BELT MAY HAVE COME OFF THE MECHANISM, SPIN THE ROUND PLATTER BY HAND, IF IT ROTATES
FREELY AND WITHOUT RESISTANCE THE BELT MAY HAVE BECOME DETACHED, IN WHICH CASE PLEASE FOLLOW THE
INSTRUCTIONS BELOW ON HOW TO REFIT THE DRIVE BELT:
STEP 1
Use a screwdriver to remove the black iron ‘C’-clip (iron binder) and lift the
turntable off the Turntable mechanism.
STEP 2
Retrieve the dropped black rubber band (drive belt) and replace it around the
column on the bottom of the turntable, then pull it out gently without
over-stretching and hook the band around the small column point at the edge of
the turntable, as shown in the diagram.
STEP 3
To fix the turntable back onto the phonograph mechanism, make sure the column
point is positioned over the correct place on the phonograph mechanism, while
placing the axis of the turntable in the hole on the phonograph mechanism, as
shown in the diagram.
STEP 4
Gently turn the turntable until a ‘plop’-sound is heard, which
indicates the repositioning of the rubber band.
Replace the ‘C’-clip to secure the turntable.
SPECIFICATIONS
PLL Radio Frequency Range : AM (MW) 522 – 1620 kHz / FM 87.5 – 108 MHz
Antenna : External FM Wire Antenna
Speaker Max Rating Power / Ohms : 8W / 4
Output Power : 4W per Channel RMS / 20W p.m.p.o.
Line-out Jack : RCA (R + L)
Aux-in Jack : 3.5mm dia. Jack
Subwoofer Jack (for Active Subwoofer) : 3.5mm dia. Jack
Headphone Jack : 3.5mm dia. Jack
Accessory supplied : Remote Control Handset; 45rpm Spindle Adaptor
Power Source : 230V AC Mains ~ 50Hz
Remote Control : 2 x 'AAA’ /1.5V Batteries required (not supplied)
Recommended Brands of recordable CD’s : 80min / CD-R or CD-RW: Sony, Maxell, TDK, Phillips, Fuji
USB 2.0 Port : Supports up to 16GB Flash Memory of MP3 Player/Flash Drive
SD/MMC Card Slot : 1GB to 32 GB. The readability of SD cards of less than 1GB size
: depends on the SD card brand
Turntable : 3-speed (33/45/78rpm)
Stylus : Flip-over Stylus – ‘SSTY8’
: For 33 & 45 (‘LP’) and (‘78’) for 78rpm records
**ErP2 – NEW EUROPEAN DIRECTIVE – FROM JANUARY 2013
The Energy-related Products Directive ErP2 impacts all energy-related products sold within the EU.
To improve energy efficiency and environmental protection, the ErP2 Directive, which is a European legislation as part of CE
marking, applies to products that affect energy consumption during use.
From January 2013 this Directive requires Manufacturers and / or Importers to offer products designed to reduce their overall
impact on the environment, including the resources consumed during use, manufacture and disposal.
INSTRUCTIONS ON ENVIRONMENT PROTECTION
DO NOT DISPOSE OF THIS PRODUCT IN THE USUAL HOUSEHOLD WASTE AT THE END OF ITS LIFECYCLE, HAND IT OVER AT A COLLECTION
POINT FOR THE RECYCLING OF ELECTRICAL AND ELECTRONIC APPLIANCES. THE SYMBOL ON THE PRODUCT, THE INSTRUCTIONS FOR USE
OR THE PACKING WILL INFORM THEM ABOUT THE METHODS FOR DISPOSAL. THE MATERIALS ARE RECYCLABLE AS INDICATED BY THE
SYMBOL ON THE LEFT. BY RECYCLING, MATERIAL RECYCLING OR OTHER FORMS OF RE-UTILIZATION OF OLD APPLIANCES, YOU ARE MAKING
AN IMPORTANT CONTRIBUTION TO PROTECT OUR ENVIRONMENT. PLEASE CONTACT YOUR LOCAL COUNCIL FOR THE AUTHORIZED
DISPOSAL LOCATION AND RECYCLING FACILITIES.
