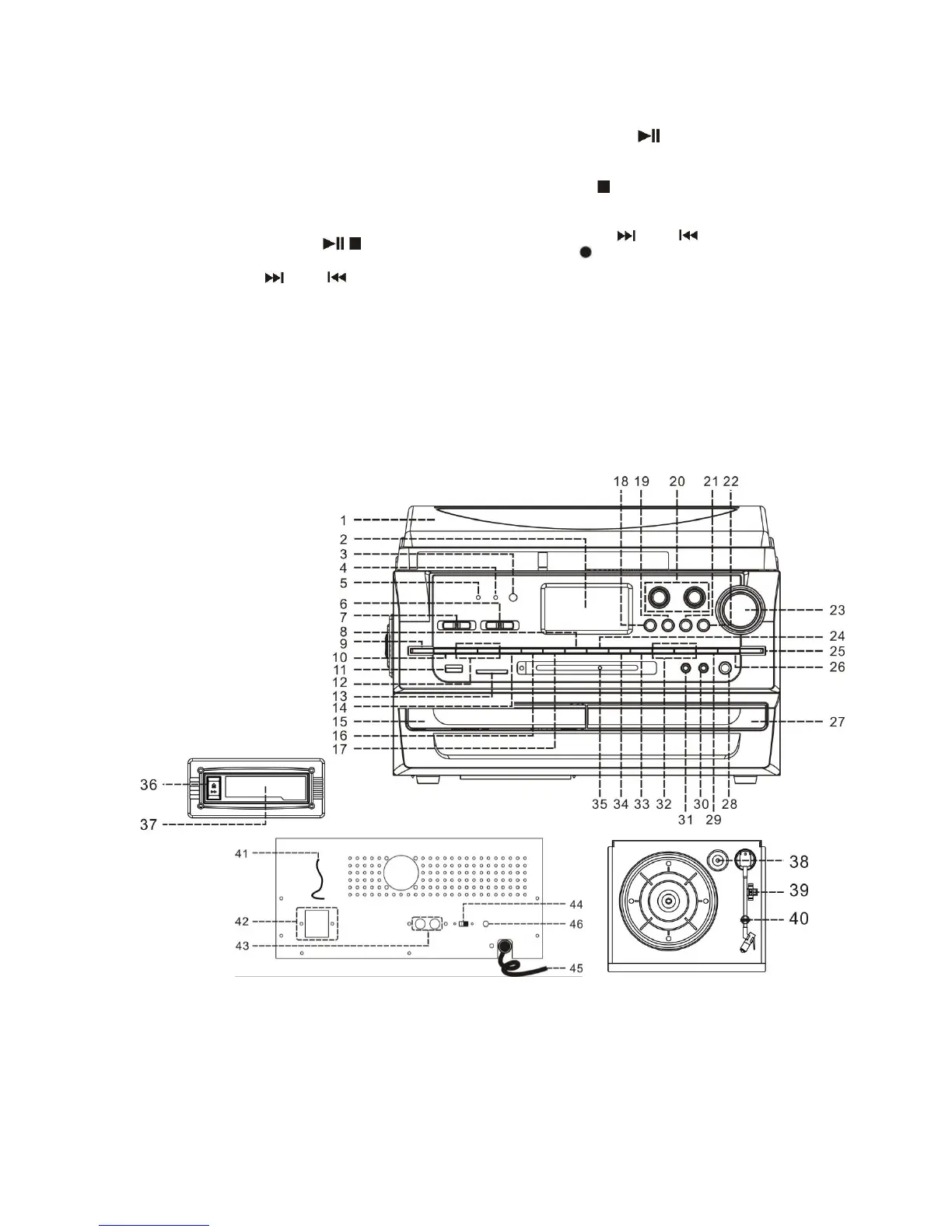

1. Dust Cover
2. LCD Display
3. Remote Sensor
4. FM Stereo LED Indicator
5. Power LED Indicator
6. BAND Selector
7. Off/Source/Tuner Selector
8. CD I /USB/SD button
9. CD I – Open/Close Button
10. CD I – CD Play/Pause/Stop / Button
11. USB Socket
12. CD I – CD Skip Up / Down Button
13. SD Card Slot
14. CD I – Folder up Button
15. CD I – CD Door
16. CD I /USB/SD – Record button
17. CD I – Play mode Button
18. Tape Function Button
19. Aux/Phono Function Button
20. Volume Up/Down Button
21. CD I Function Button
22. CD II Function Button
23. Tuning Knob
24. Finalize Button
25. CD II – Open/Close Button
26. CD II – CD Play/Pause Button
27. CD II – CD Door
28. X-BASS On/Off Button
29. CD II – CD Stop Button
30. 3.5mm dia. Headphone Jack
31. 3.5mm dia. Aux-In Jack
32. CD II – CD Skip Up / Down Button
33. CD II Record Button
34. Erase Button
35. LED Dial Pointer
36. Tape Forward / Eject Button
37. Cassette Door Cover
38. 45rpm Spindle Adaptor
39. Turntable Speed Selector
40. Tone Arm Rest and securing clip
41. FM Wire Antenna
42. Speaker Sockets (L + R)
43. Line-Out Socket (RCA/L + R)
44. Auto Stop Switch
45. AC Mains Cord
46. Subwoofer out Jack
CAUTION:
USAGE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THEREFORE, THIS UNIT SHOULD NOT BE
ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE PERSONNEL.
