Appendix A.08 2100 Series
HINGING THE RIGHT SIDE PANEL
For ease in servicing, the right side panel of the 2100 Series room heating unit hinges open. Follow the instruc-
tions below to hinge the right side panel:

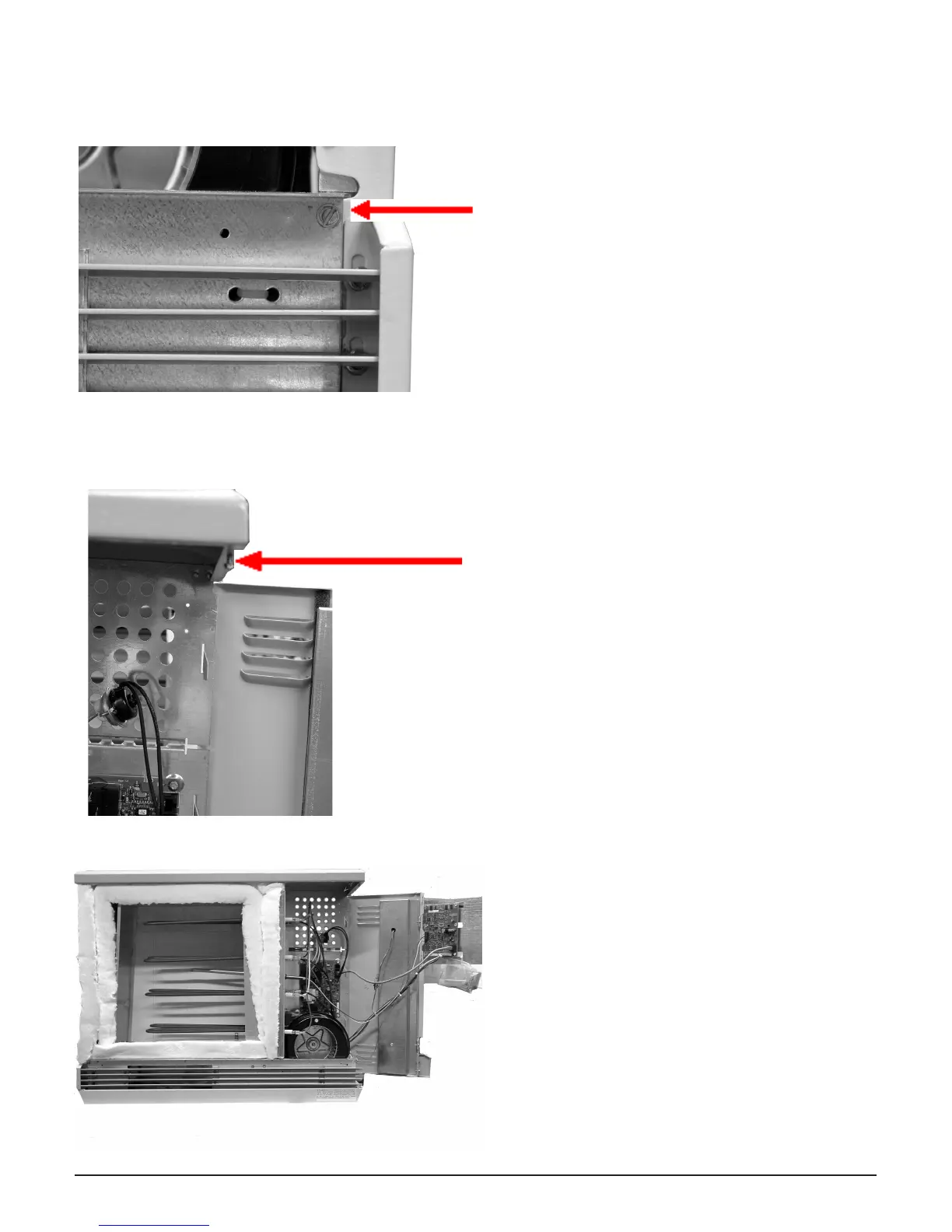

1. With the painted front panel off, remove the screw
located above the grill slats on the lower right side
of the heater.
2. Loosen the screw located at the top right corner of
the electrical compartment.
3. Push out on the right side panel.
