3.DSP AND DRC INSTALLATION

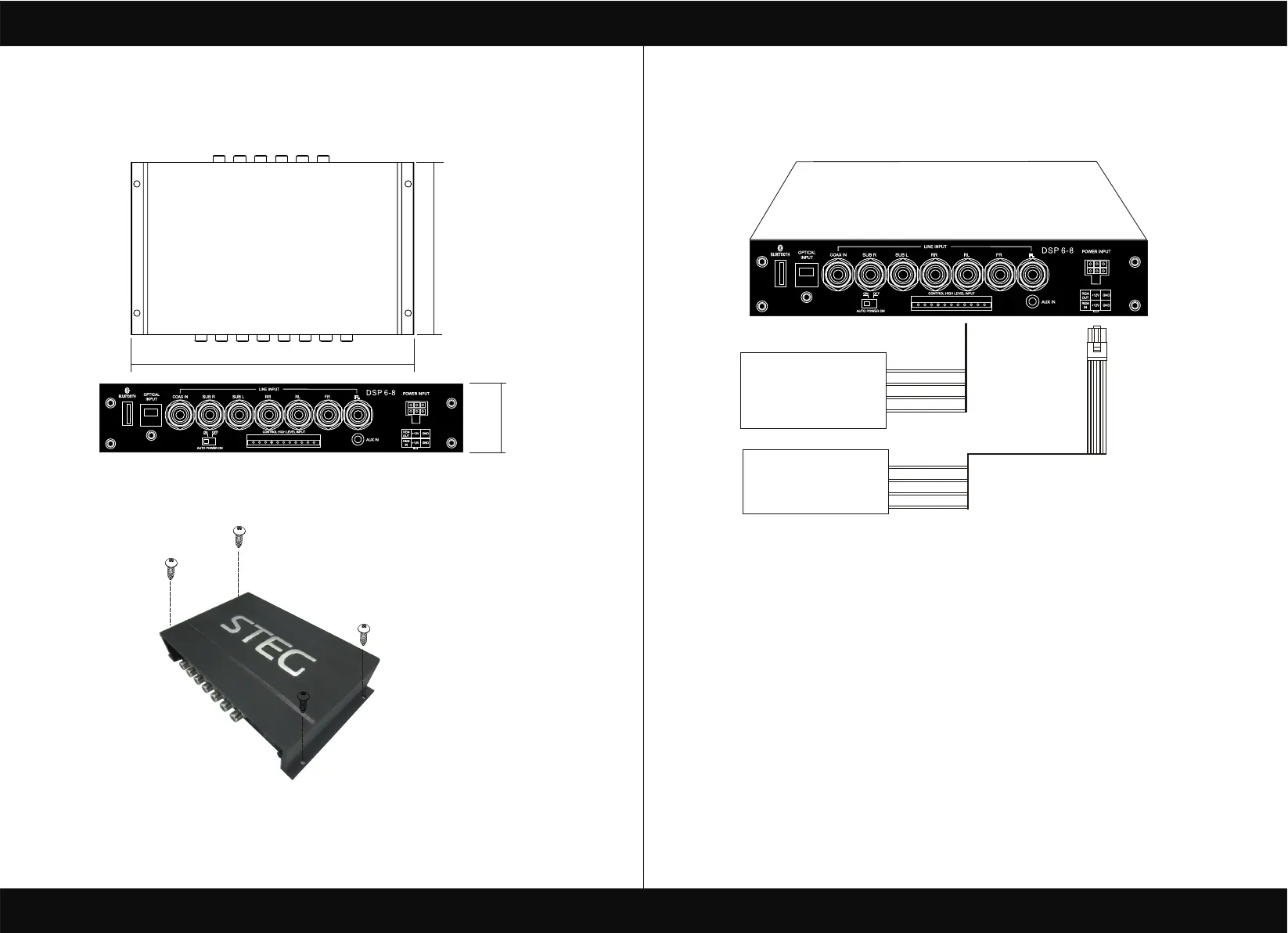

External dimensions
How to install
WARNING: do not use aggressive cleaning agents or abrasive cloth to clean the display.Simply use
a soft cotton colth lightly damped with water.
4.CONNECTION PANELS-DESCRIPTION
4.1 Input signals
MASTER-INPUT
1. INPUTS;FR-FL-RR-RL,SUB R-SUB L inputs(SPEAKERS)
The DSP comes with 6 HI-LEVEL signal inputs to connect amplified signal cables coming
from the main Analog source.input sensitivity is adjusttable from 2 to 15V RMS.
2. AUX IN L-R; auxiliary low-level stereo input.
The DSP comes with an auxiliary stereo signal input to connect an external source, mp3
Player,audio. Sources.Input sensitivity is adjustable from 0.3 to 5 V RMS.
Remark: if a low-level output source (PRE OUT)with output signal equal or greater than 2 V RMS
is available, you can Connect it to the high-level MASTER input(SPEAKERS).
Sensitivity is increased by adjusting the IN LEVEL controls.
1.post GND
2.post +12V
3.post REM IN
4.post REM OUT
3
2
1
40mm
120mm
196mm
4
HIGH LEVEL INPUT
1.post GND
2.post FR +
3.post FR -
4.post FL +
5.post FL -
4
6.post RR +
8.post RL +
7.post RR -
9.post RL -
12.post SUBL +
11.post SUBR -
10.post SUBR +
13.post SUBL -
