STEINEL IR Quattro COM 1 AP User Manual

- 22 -

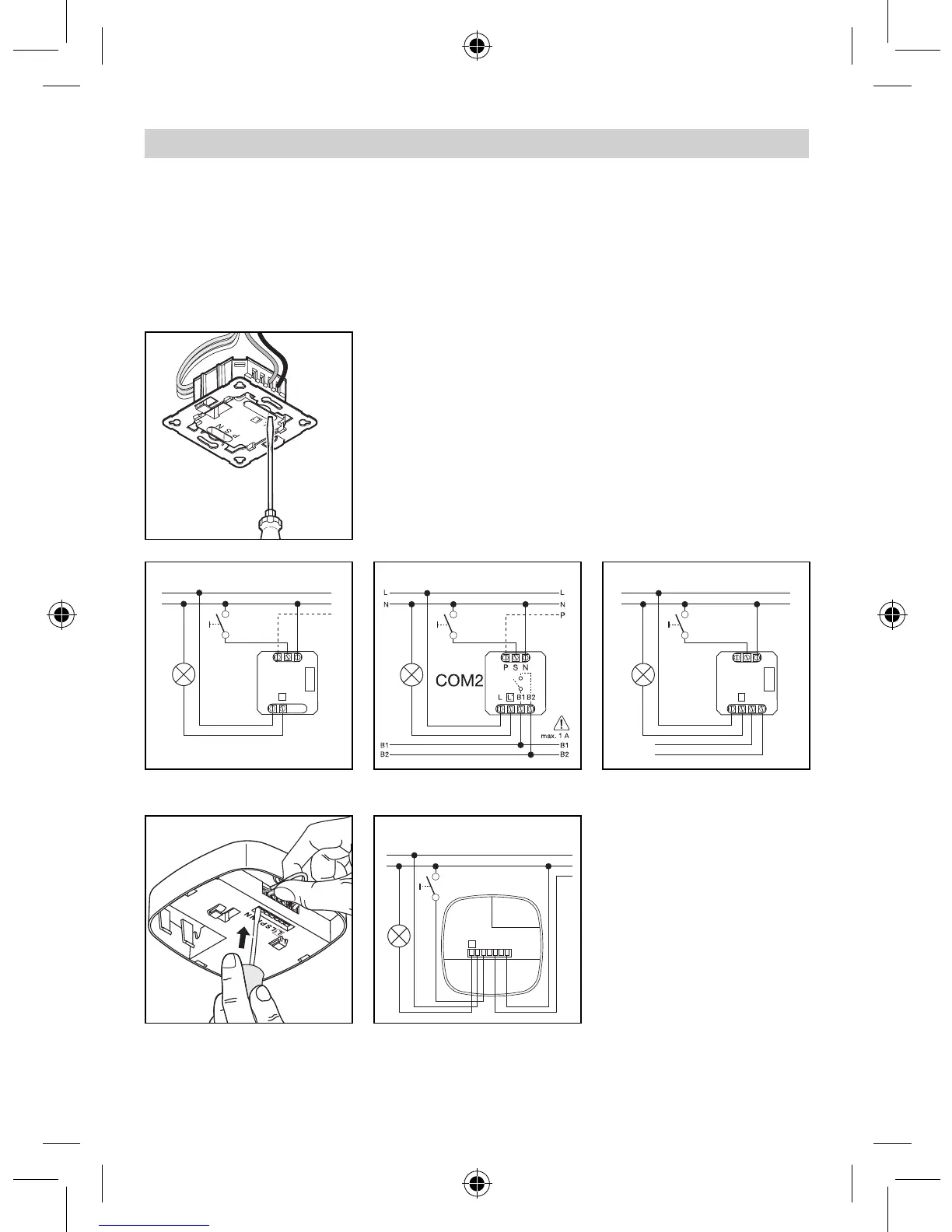

Electrical installation/Automatic mode
In selecting the wiring leads, it
is important to meet the wiri ng
regulations laid down in VDE
0100 (see Safety warnings on
page 20). The following applies
to wiring presence detectors
:
Section 6 of VDE 0100 520 per-
mits the use of a multiple-
conductor cable containing
both the mains-voltage wires
as well as the contr ol lines (e.g.
NYM5x1.52) for the wiring
bet-
ween sensor and electronic bal-
last. The mains supply lead must
be no greater than 10 mm in dia-
meter. The clamping range of
the mains terminal is designed
for a maximum of 2
x 2.5 mm
2
.
When installing the surface-
mounting version, connect a
circuit breaker (16 A) on the
line side.
PSN
LL'
L
N
P
L
N
COM1
PSN
LL'
L
N
L
N
1-10V
1-10V
+
–
max. 100 mA
DIM
DIMCOM 1 COM 2
L
N
P
L
N
PSNLL' PN
COM 1 AP
