How it works / Basic function
The infrared presence detectors
from the Control PRO range con-
trol lighting as well as heating,
ventilation and air-conditioning
(COM 2 only), e.g. in offices,
schools, public b
uildings or at
home, in relation to ambient
light level and the presence of
persons.
The pyro-sensor with highly
advanced lens provides a square
detection zone, as the t
ypical
shape of a room, in which the
smallest of movements are
sensed. The presence detector's
switching outputs and reach
are set at the potentiometers
and dip switches or
by using
the optional remote control.
Presence Control has a low in-
trinsic power consumption.
Presence Control PRO
IR Quattro COM 1 / COM 1 AP
(surface-mounted)
IR Quattro HD COM 1 /
COM 1 AP (surface-mounted)
1 switching output operating in
relation to brightness setting
and presence of p
ersons.
Settings:
- Brightness setting
- Stay-'ON' time, pulse mode,
IQ mode
Presence Control PRO
IR Quattro COM 2
IR Quattro HD
1 switching output as COM 1.
An additional 2nd switching out-
put for operating HVAC (heating/
ventilation/air-
conditioning) in re-
lation to the presence of persons.
Settings:
- Stay-'ON' time
- Switch-'ON' delay
- Room surveillance
Presence Control PRO
IR Quattro DIM
IR Quattro HD DIM
1 switching output operating in
relation to bright
ness setting
and presence of persons.
Settings:
- Brightness setting
- Stay-'ON' time, IQ mode
- Orientation light
- Constant lighting control

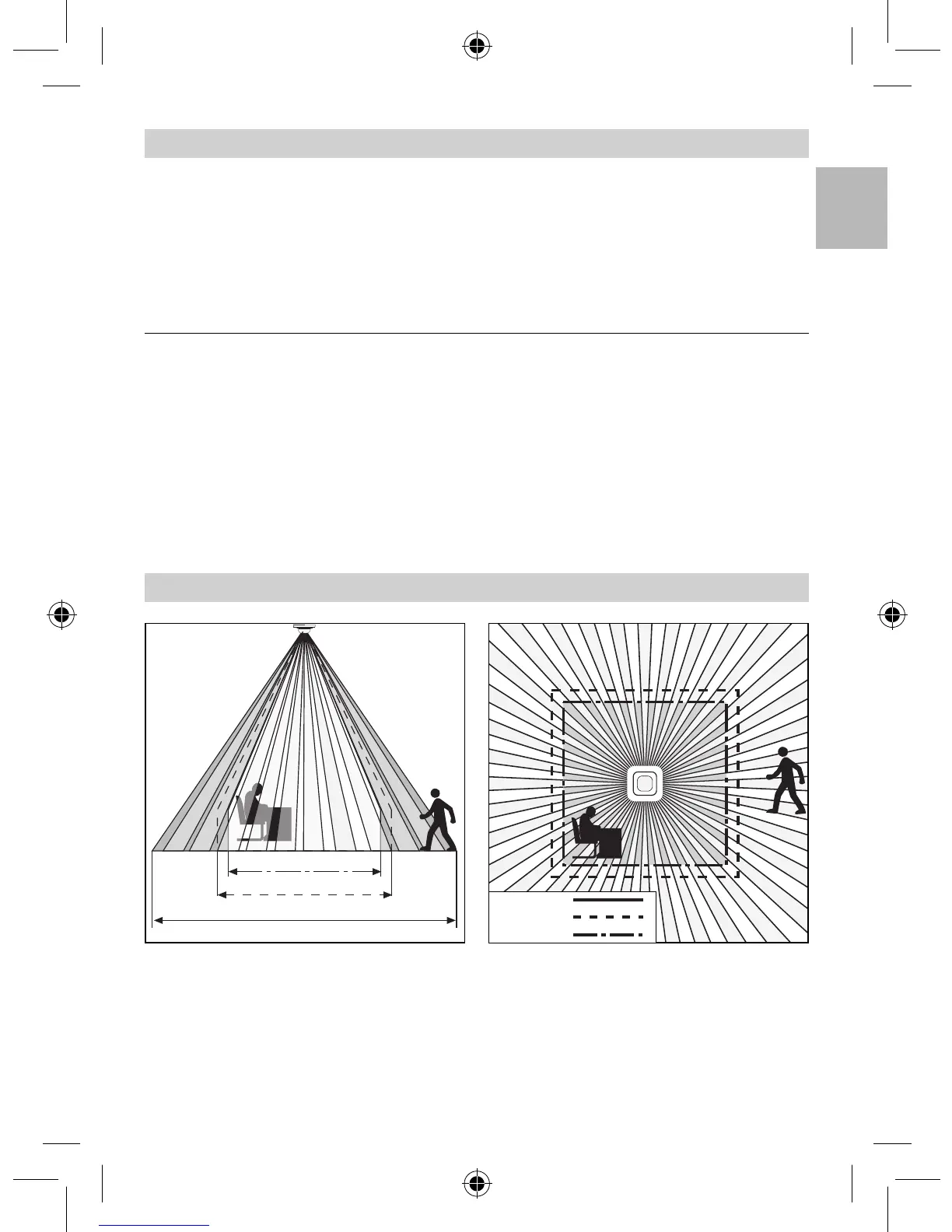

Detection zone
Reliable presence detection
largely depends on the number,
condition and arrangement of
the lens segments. The IR Quattro
with its square det ection zone of
49 m
2
divided up into 13 levels
and 1760 switching zones senses
the smallest of movements. With
a square det ection zone covering
an area of 64 m
2
, the IR Quattro
HD has 4800 switching zones that
provide even greater precision.
These reaches can be adjusted to
suit specific requirements at the
setting potentiometer.
The square
detection zone and
the capability of interconnecting
master/slave versions provide the
basis for creating optimum con-
figurations quickly and easily.
presence
radially
tangentially
tangentially
radially
presence
