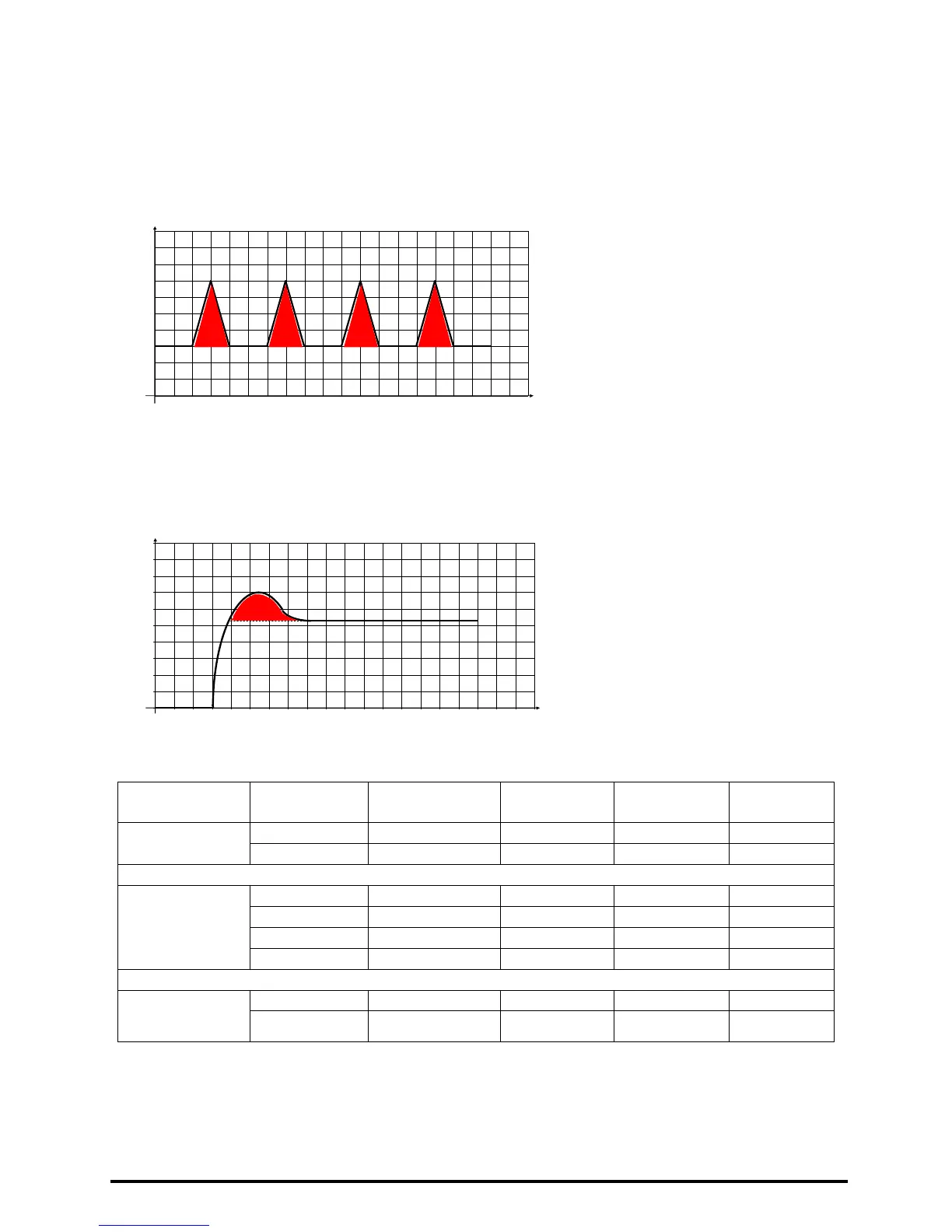

- ARC FORCE (ONLY IN MMA MODE) :
Avoids overheating of electrodes between a shot of current which prevents the electrode from sticking to
piece that is being welded. The arc force is adjustable.
ARC-FORCE
0
1
2
3
4
5
6
7
8
9
10
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
time
Current
- HOT START (ONLY IN MMA MODE) :
The Hot-start supplies a extra current upon starting which allows the electrode to be immediately removed
and promptly begin welding. The Hot-Start is adjustable.
HOT-START
0
1
2
3
4
5
6
7
8
9
10
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
time
Current
extra energy
IDEAL SETTING:
ELECTRODE TYPE DIAMETER CURRENT HOT START
ARC
FORCE
6013 2,5 80 10 0
RUTILE
6013 3,25 115 10 0
7018 2,5 90 10 15
7018 3,25 125 10 10
7018 4 160 15 10
BASIC
7018 5 200 20 20
6010 2,5 50 20 250
CELLULOSIC
FLEETWELD 5P+
( Lincoln )
6010 3,25 70 20 250
