STEMME S6 Maintenance Manual

MAINTENANCE MANUAL
STEMME TSA-M
MAINTENANCE MANUAL
STEMME TSA-M

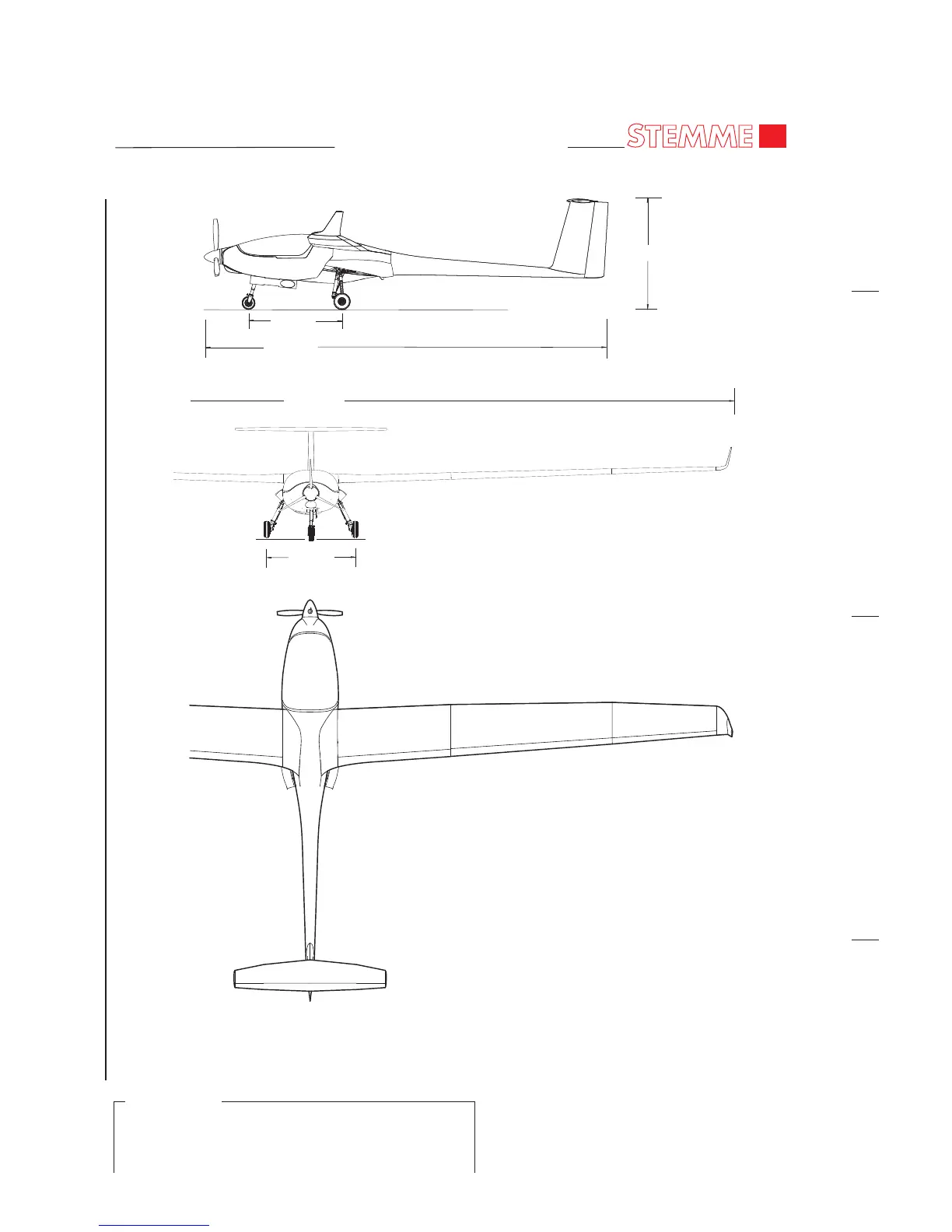

Aircraft Dimensions [ m (ft.)]
Figure 1
2.45 (8.04)
18.00 (59.06)
8.52 (27.95)
1.97 (6.5)
1.89 (6.2)
06-10-00
Page 02
Nov 18/11
EFFECTIVITY
Model S6-RT
06-10-00
Page 03
Airbrakes (both):
Deployment
185 mm ±3 mm (double panel airbrakes)
Horizontal Stabilizer and Elevator:
Profile DU86-137/25
2 2
Area (entire) 2.81 m 30.25 ft
2 2
Elevator Area 1.47 m 15.82 ft
Up Travel - 25° ±0° (Adjustment by stops)
Down Travel +25° ±0° (Adjustment by stops)
Span 3.27 m 10.75 ft
Vertical Stabilizer and Rudder:
Profile DU01-130/35
2 2
Area 1.49 m 16.04 ft
2 2
Rudder Area 0.604 m 6.50 ft
Travel ±35° ±0° (Adjustment by stops)
Landing Gear:
Wheel Track 1889 mm 6.2 ft
Wheel Base 1970 mm 6.5 ft
Nose Gear Wheel Size 4.00-5
Main Gear Wheel Size 5.00-5
3. Control Surface Moments and Weights
Flight Surface Range of Permissible Surface Moments Max. Total Surface Weight
Aileron,
outboard 7.7 - 10.7 Ncm (0.68 in.lb - 0.95 in.lb) 2358 - 2483 g (5.20 - 5.47 lb)
inboard 4.7 - 11.7 Ncm (0.42 in.lb - 1.04 in.lb) 4523 - 4748 g (9.97 - 10.47 lb)
Flaps 106.2 - 129.8 Ncm (9.4 in.lb - 11.5 in.lb) 1980 - 2420 g (4.37 - 5.34 lb)
Rudder 220.5 - 269.5 Ncm (19.5 in.lb - 23.8 in.lb) 3375 - 4125 g (7.44 - 9.09 lb)
Elevator
LH side 32.4 - 41.6 Ncm (2.9 in.lb - 3.7 in.lb) 1285 - 1495 g (2.83 - 3.30 lb)
RH side 40.5 - 51.5 Ncm (3.6 in.lb - 4.6 in.lb) 1330 - 1550 g (2.93 - 3.42 lb)
NOTE: All given values for control surface moments and weights represent the values for single
control surfaces without external hinges and brackets installed.
90 mm ±2 mm (single panel airbrakes)
Nov 18/11
EFFECTIVITY
Model S6-RT
