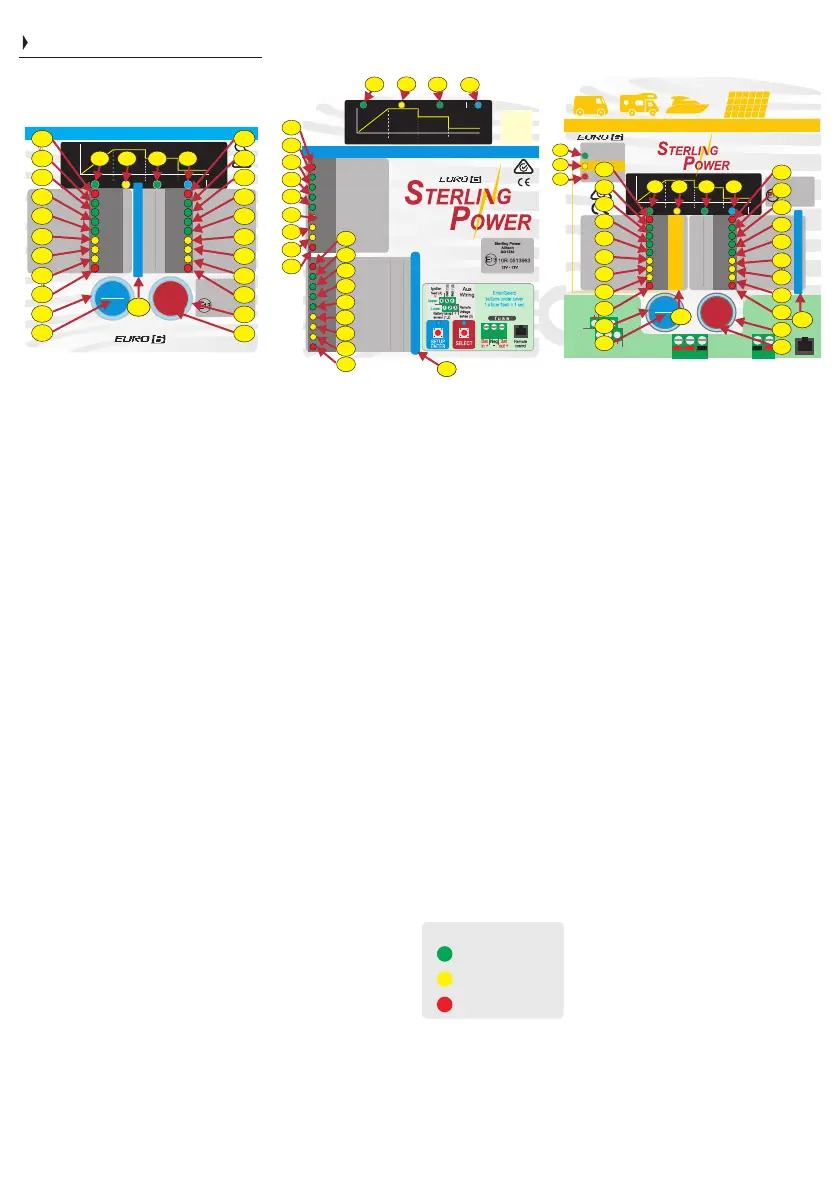

Front label display
1 & 26) ENTER / SETUP and SELECT buttons, used to
adjust settings.
2 & 25) Background light for button, used also to show
unit is operational.
3)-11) The first column of LEDs have 3 different
functions. Firstly, on unit start up the battery type is
displayed. Secondly, after startup it becomes an input
voltmeter. Thirdly, during custom setting the voltage
scale is used to set the voltage - refer to later.
12) This LED has 2 meanings. Firstly, when on battery
type selection mode this is the Desulphation setting
indicator. Secondly, on default mode (most times) this
shows the charger is on fast charge mode.
13-15) These LEDs show the battery charge
progression through its cycle.
15) Flash when in asleep.
16-24) Has 3 functions: Firstly, during operation they
show the output voltage. Secondly, if an alarm is
present the alarm shows up. Thirdly, this row is used in
the custom setup procedure to set timing functions,
voltages and time factors. Its general function is as an
output voltmeter, in the event 2 LEDs are on the
voltages is between the 2 settings, if the top or bottom
red LED is on then the voltage is outside the
parameters off the voltmeter.
16) High voltage, if on solid it is high output voltage, if
flashing it is high input voltage.
17) High temp trip, if flashing then high unit temperature
trip.
18) No faults (solid on). Power Pack mode / live voltage
output (flashing).
19) No regen. mode or regen. timer at 0 = solid LED.
Regen on / timer on = flashing LED.
20) Remote Battery sense cable connected (solid).
Battery sense voltage drop in cable outside the 21)
prescribed 1.5V drop maximum, thicker cable
required - LED flashing. PIM = Pure Ignition feed
mode - if this LED is on solid during status, then the
unit is set to operate only if ignition feed is live.
22) Device’s power ability reduced due to high
ambient temperature or voltage drop in output cable
too large. Alarm will be in conjunction with other
information alarm. If flashing, unit is in night mode
with reduced power and lower fan speed.
23) Low voltage alarm, low voltage on input = flashing
LED. Input alternator not supplying enough power or
failed. Low voltage output = solid LED. Something
consuming a lot of power or unit not working. No
voltage output then LED on solid.
24) If flashing then battery temperature too high. TCO
Temperature Compensation Off LED means that
when illuminated the temp comp is off.
31) Numbers relating to battery custom setup (if
used) this is the charge factor number.
32) Numbers relating to custom setup mode these
numbers relate to timing, i.e. maximum and minimum
time settings.
33) Solar voltage reading - this column becomes a
solar input voltmeter when solar power is on.
34) Low temperature thermometer readings.
MODELS:
BB1260 / BB122470 / BB123670
BB124870 / BB241235
BB123670 / BB124870
Model:
BB1230
BB122430
Bb244830
Auxiliary Information
Solar power live
Ignition feed live
Solar High V Trip live
28
27
29
27) Solar power live LED comes on when the solar is
active. this also means that the voltmeter LEDs
voltage legend changes to the yellow / solar voltage
input. BBS Solar only.
28) If solar voltage exceeds 32V the red LED comes on
+ unit stops. BBS solar only.
29) Ignition feed LED - if ignition feed is connected
AND live, this LED shall come on. BBS solar only.
Bulk / Boost Abs / Solar (fl) Conditioning Float (S) /Standby
IUoUo
SELECT
15.4V
15.0V
14.6V
14.2V
13.8V
13.4V
13.0V
12.6V
12.2V
Input voltage &
Custom set voltages
Battery preset options.
Batt Type LED displayed
on start-up.
SETUP
ENTER
15.4V
15.0V
14.6V
14.2V
13.8V
13.4V
13.0V
12.6V
12.2V
16
14
12
10
8
6
4
2
0
840
720
600
480
360
240
120
30
0
Battery charge
progress
960 18
High Volt in (fl) / out (S)
High temp trip (fl) /BMST(S)
No Fault (S) / P.Pack (fl)
Regen timer off (S) / on (fl)
Batt. Sense on (S)
Volt drop sense (fl)
1/2 power (S) / night (fl)
Low Volt in (fl) / out (S)
High bat temp (fl) / TCO (S)
Output
Voltage
11
10
9
8
7
6
5
4
3
16
17
18
19
20
21
22
23
24
12 13 14 15
1 26
Designed and
developed
in England
made in Taiwan
12V-12V 30A continuous
- 350W solar processing
-1A engine batt. maintain
- Unlimited solar size
- Current limiting
+
Battery to Batter charger and Solar MPPT
with starter battery maintainer
Aux
Bat
out +
Engine
Batt.
input +
Solar Neg
Max V
31V
Com.
Neg.
BMS 2 (5)
BMS 1 (6)
Battery temp.
sensor (1,2)
Ignition
feed (4)
Remote
Voltage
sense (3)
Upper
Lower
www.sterling-power-usa.com
www.sterling-power.com
(fl)
Auxiliary Information
Solar power live
Ignition feed live
Solar High V Trip live
Sterling Power
Alitech
BBS1230
12V - 12V
10R-0513963
Remote
control
Solar
Pos+
+ + +
- -
1 2 3
4 5 6
Active
30.0V
28.0V
26.0V
24.0V
22.0V
20.0V
18.0V
16.0V
14.0V
Output To
Aux Batt
Batt. to Batt. Charger | MPPT solar reg. | Starter batt. maintainer
25 25
28
27
29
+2
0
-2
-4
-6
-8
-10
-12
-30
C
+
o
LT Trip
1x blue flash
= 1 second
Due to poor conductivity through
chassis. Please use appropriately
rated DC cable direct from engine to
auxiliary battery. Do NOT use chassis.
Bulk / Boost Absorption Conditioning Float (S) /Standby (fl)
12V-12V
60A input
Batt. to Batt.
Charger
IUoUo
Pro Batt Ultra - 4 Stage battery to battery charger DIGITAL control
SELECT
15.4V
15.0V
14.6V
14.2V
13.8V
13.4V
13.0V
12.6V
12.2V
SETUP
ENTER
www.sterling-power-usa.com
www.sterling-power.com
Designed and Developed in England
Made in Taiwan
15.4V
15.0V
14.6V
14.2V
13.8V
13.4V
13.0V
12.6V
12.2V
16
14
12
10
8
6
4
2
0
840
720
600
480
360
240
120
30
0
Battery charge
progress
960 18
High Volt in (fl) / out (S)
High temp trip (fl)
No Fault (S) / P.Pack (fl)
Regen timer off (S) / on (fl)
Batt. Sense on (S)
Volt drop sense (fl)
1/2 power (S) / night (fl)
Low Volt in (fl) / out (S)
High bat temp (fl)
Specifications:
12V-12V 60A input
- Current limiting
- Thermostatic control fan
- Auto or ignition feed
- Suitable for use with
- Smart alternators
- Regen. braking
11
10
9
8
7
6
5
4
3
16
17
18
19
20
21
22
23
24
12 13 14 15
1 26
+2
0
-2
-4
-6
-8
-10
-12
-30
C
o
LT Trip
Input voltage
D-Sulf.
Calcium
Open
AGM II
Lithium II
Lithium I
Sealed
AGM I
GEL
Custom
1 sec =
1x blue flash
+
Sterling Power
Alitech
BB1260
10R-0513962
12V - 12V
Alarms
Battery preset options.
Batt Type LED displayed
on start-up.
Output
Voltage
IUoUo
Battery charge
progress
15.4 V
15.1 V
14.6 V
14.2 V
13.8 V
13.4 V
13.0 V
12.6 V
12.2 V
www.sterling-power-usa.com
www.sterling-power.com
Designed and
developed
in England
made in Taiwan
15.4V
15.0V
14.6V
14.2V
13.8V
13.4V
13.0V
12.6V
12.2V
Battery type selected
Flashing on startup
Alarms
Input voltage
16
14
12
10
8
6
4
2
0
840
720
600
480
360
240
120
30
0
4
:
D
U
L
A
R
T
A
I
B
G
I
L
D
E
:
:
C
D
I
E
M
S
A
I
G
N
Y
N
D
ProDigital
Technology
D
960 18
High Volt in (fl) / out (S)
High temp trip (fl)
No Fault (S) / P.Pack (fl)
Regen timer off (S) / on (fl)
Batt. Sense on (S)
Volt drop sense (fl)
1/2 power (S) / night (fl)
Low Volt in (fl) / out (S)
Bulk / Boost Absorption Conditioning Float (S) /Standby (fl)
D-Sulf
12V-12V 30A
- Current limiting
- Thermostatic control fan
- Automatic or ignition feed
- Thermal compensation
- Lithium thermal adjust
Under lid
11
10
9
8
7
6
5
4
3
16
17
18
19
20
21
22
23
24
12 13 14 15
High bat temp (fl)
Progressive DIGITAL software control Battery to Battery charger
Output V
+2
0
-2
-4
-6
-8
-10
-12
-30
C
+
o
LT Trip
Calcium
Open
AGM II
Lithium II
Lithium I
Sealed
AGM I
GEL
Custom
10
11
8
9
7
6
5
4
3
2
1
16
17
18
19
20
21
22
23
24
25
26
10
11
13
8
9
7
6
5
4
3
12
14
15
16
17
18
23
24
19
21
20
22
1312 14 15
16
17
18
19
20
21
22
23
24
25
26
1312 14 15
D-Sulf.
Calcium
Open
AGM II
Lithium II
Lithium I
Sealed
AGM I
GEL
Custom
10
11
8
9
7
6
5
4
3
2
1
29
27
28
Model: BB solar
BBS1230
2434
2434
2434
35) Solar input voltage. When
solar power live LED (27) is on,
the left panel displays solar panel
input voltage. BBS solar model
only.
2435
Front Panel Display
