StetSom DB3000 - Installation Procedure; Recommended Cable Specifications; Fuse and Circuit Breaker Mandate

15
Installaon should only be done by qualied professionals with the
product turned OFF.
Instalation

connectors........................................
 ......................................................................
Output signal connectors (speakers) ..........................................
 ..............................................................

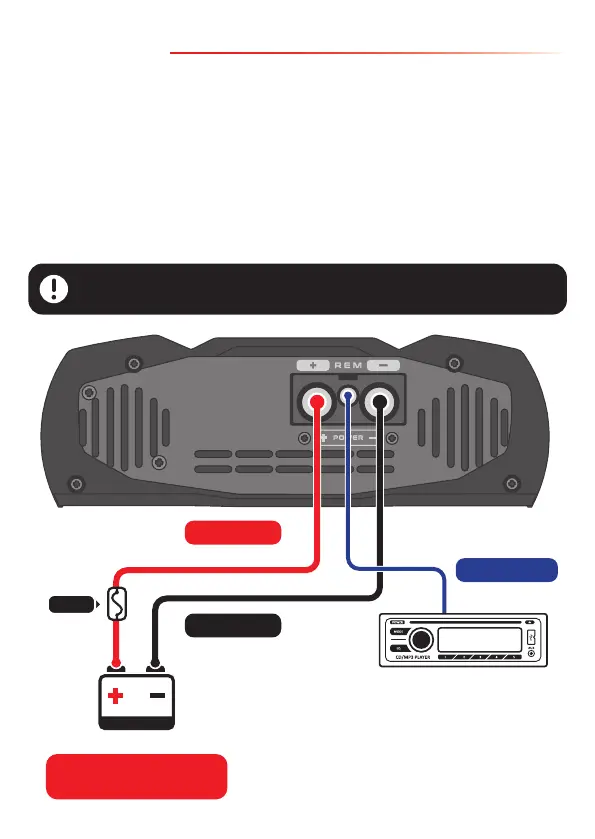

The use of a fuse or circuit breaker is mandatory to protect the system from short
circuits and overload. Install them as close to the baery as possible.
4 AWG
18 AWG
7 AWG
150A
Rádio / Player
STETSOM
GROUND
4 AWG cable
POWER
4 AWG cable
RECOMMENDED USE
OF AUXILIARY BATTERY.
REM
18 AWG cable
REM (remote)
(maximum
12” of baery)
Fuse
150A
Baery
