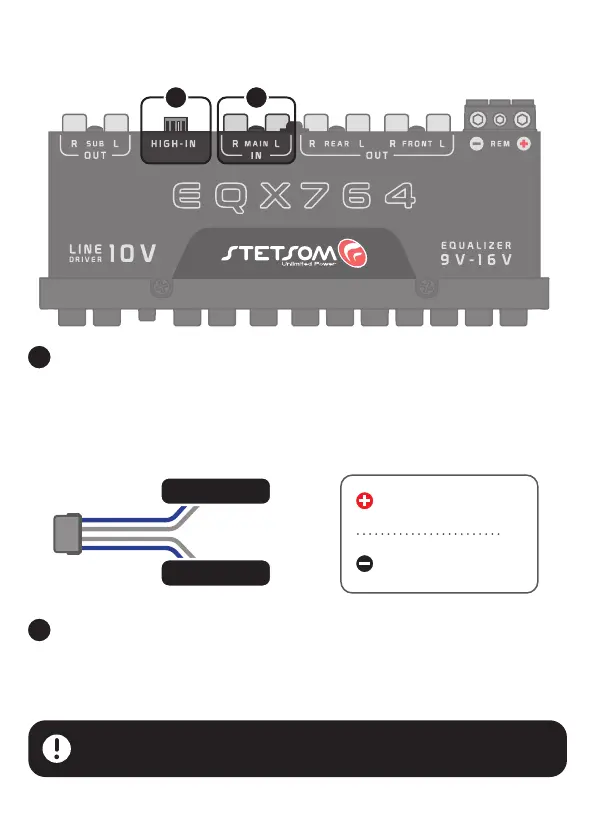

HIGH INPUT CONNECTION: : Use the connection when the radio/player does not
have RCA output. The input has a stereo signal (L and R) identified at the product. Check
the radio/player output signals before making the connections.
For remote triggering of the amplifier, use the REM connection.
MAIN INPUT CONNECTION: Double RCA connection with input stereo (L+R)
identified at the product. Make the connection with radio/player output through quality
RCA cables armored to avoid unwanted noises.
Input Connections
1
2
1 2
The positive is connected
through the BLUE wire.
The negative is connected
through the GRAY wire.
The MAIN and HIGH INPUT connections can be switched using the front
knob of channel selection between MAIN and HIGH.
R CHANNEL
L CHANNEL
