Output connections

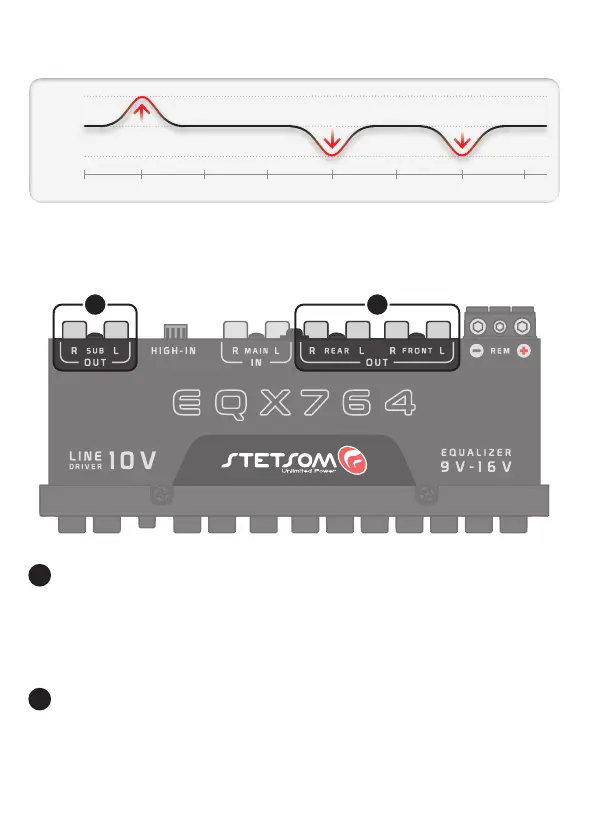

SUB OUTPUT:
RCA output (L+R) dedicated for use in SUBWOOFERS. It has controls dedicated to LEVEL
and FREQUENCY for precise lower frequencies adjustment.
REAR & FRONT OUTPUT:
RCA outputs (L+R) dedicates to the channels REAR and FRONT. These outputs count
with adjustments of GAIN, FADER, and EQUALIZATION.
8
9
+12dB
0dB
-12dB
1Hz 50Hz 125Hz 315Hz 2,2KHz 6KHz 16KHz750Hz
-12dB -12dB
+12dB
Example of impacts in each equalization control represented on the audio chart:
