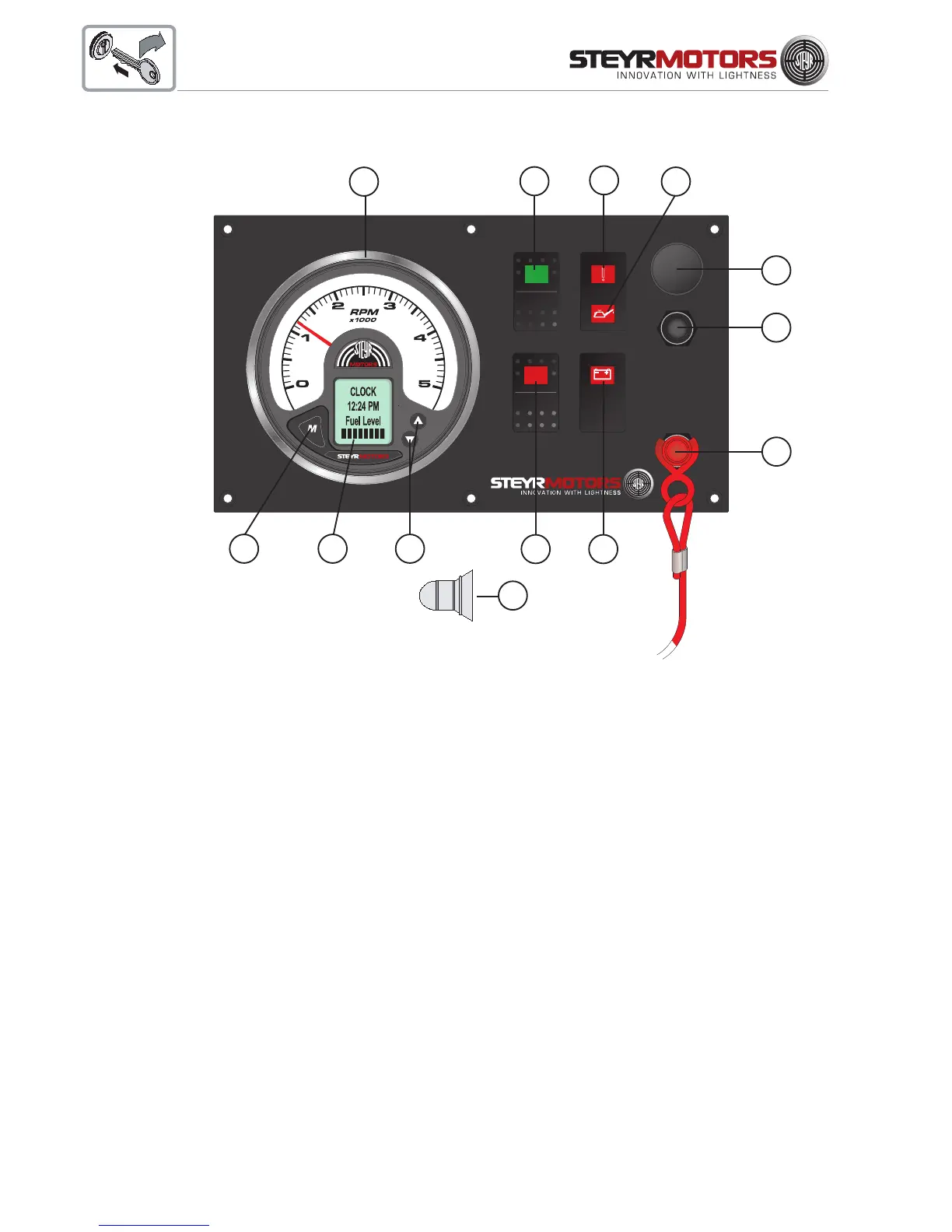

Instrument panel (for SOLAS only)
A tachometer F push button – ignition ON/OFF (red)
A1 function buttons G push button START (green)
B engine parameter display H audible warning device
(installed on rear side of panel)
C warning light – battery charge
D combined light preheating control &
warning light engine oil pressure
I emergency cut off switch (lanyard)
J circuit breaker (10 amp)
E warning light check engine
NOTE: Instrument gauges are automatically illuminated if ignition is turned ON.
NOTE: In the case of inversion the engine will be automatically shut off, in order to allow normal operation
later.
The ignition push button (F) must be switched OFF and ON again, then the engine can be restarted
via the push button START (G).
