FOR 6 CYL. MARINE ENGINES WITH V-BELT
d f

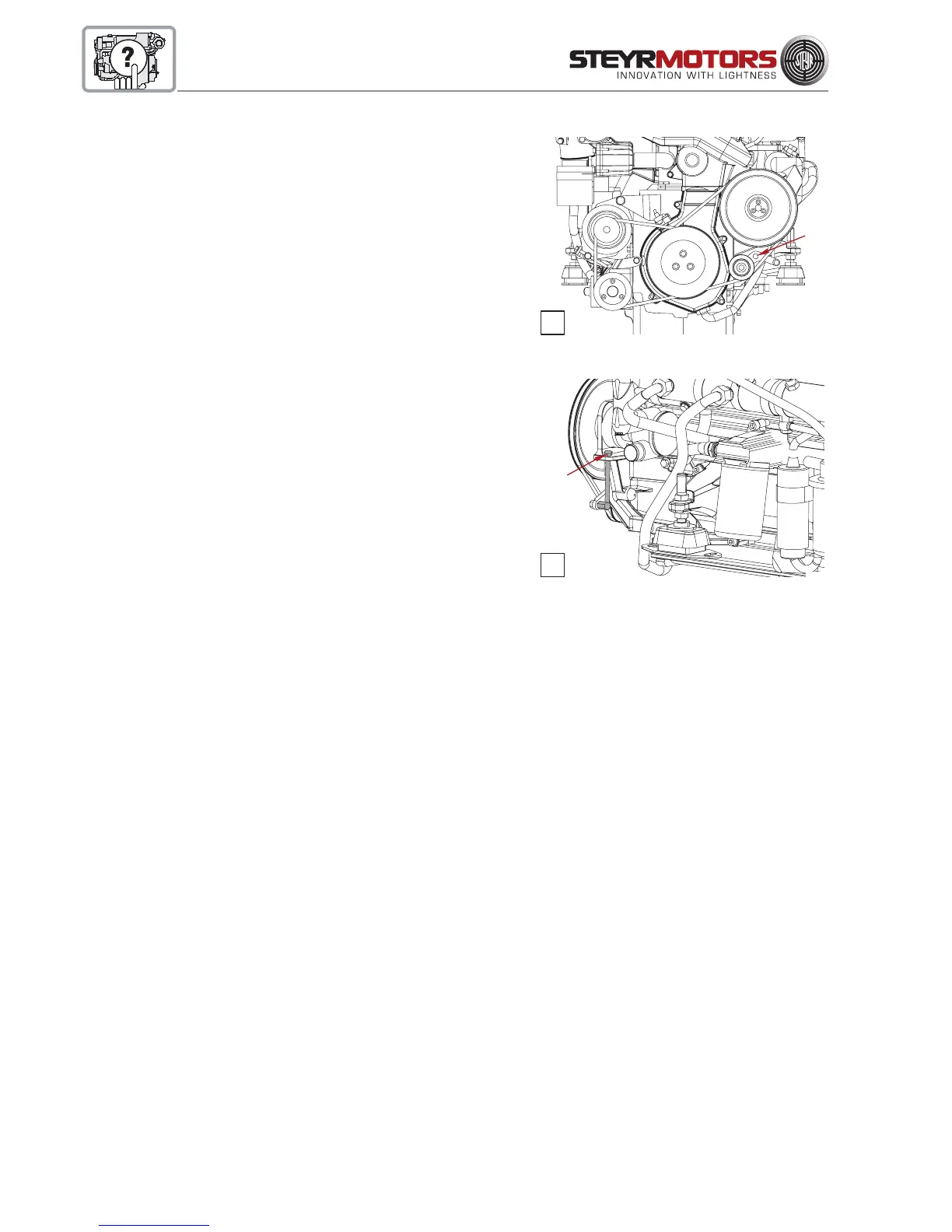

To tension the belt: Loosen hexagon screw (35/F). Turn the clamp-
ing bolt (36/G) clockwise in order to increase the belt tension to 300
± 50 Nm. Tighten hexagon screw (35/F) with a Torque of 23 Nm ± 2
to secure idle pulley bracket. Check belt tension.
35
06026
F
36
G
06027
