INSTALLATION

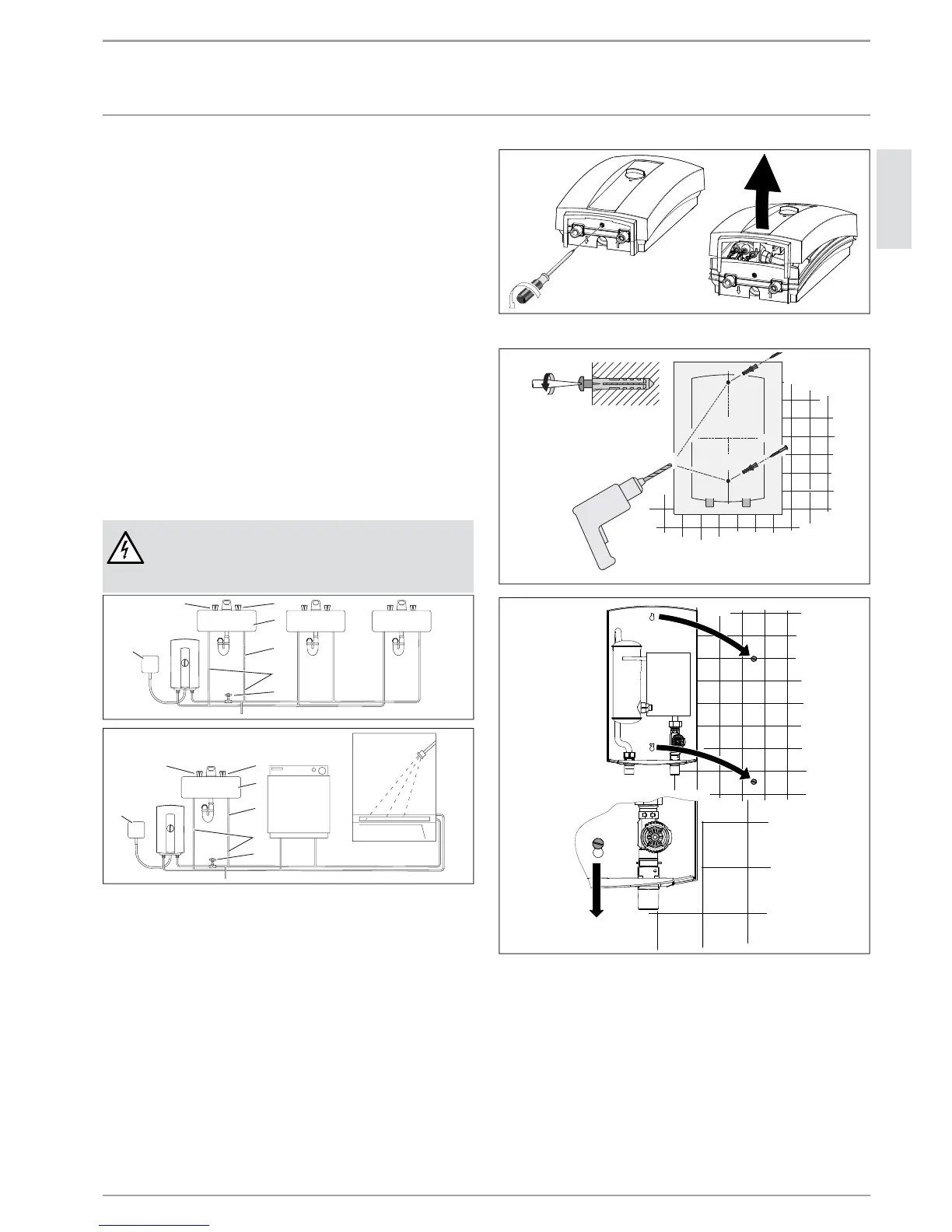

MOUNTING THE APPLIANCE
INSTALLATION
6. Mounting the appliance
6.1 Application
One appliance can be used for the following applications:
one or multiple hand washing sinks
one kitchen sink
cabins with fl ow restriction at shower head.
A combination of two appliance can be used for whole apartment
and house applications. Please contact STIEBEL ELTRON for special
installation instructions.
All areas with a ground water temperature likely to exceed 65°F
(18°C) year round:
Whole apartment or house
CAUTION: Electrocution
Unit must be installed in a vertical position with the
water fi ttings pointing downward. In this position the
unit is splashproof, so that no water can soak in.
12
3
4
5
6
7
26_02_02_1082
1
2
3
4
5
6
7
26_02_02_1081
1 Hot valve (left)
2 Cold valve (right)
3 Sink
4 1/2“ main pipe
5 Water supply line for faucet installation
6 Shut-off valve
7 Electrical junction box
6.2 Mounting
 Install appliance as close as possible to the main hot water
draw-off points.
 Install appliance in a frost free area. If frost may occur, re-
move appliance before freezing temperatures set in.
 Leave a minimum of 5“ of clearance on all sides for servicing.
26_02_02_1083
 Remove plastic cover.
26_02_02_033126_02_02_1090
 Screw the screws into the wall and hang the appliance.
Screws and plastic wall anchors for mounting on masonry or
wood are provided.
 Secure the screws.
