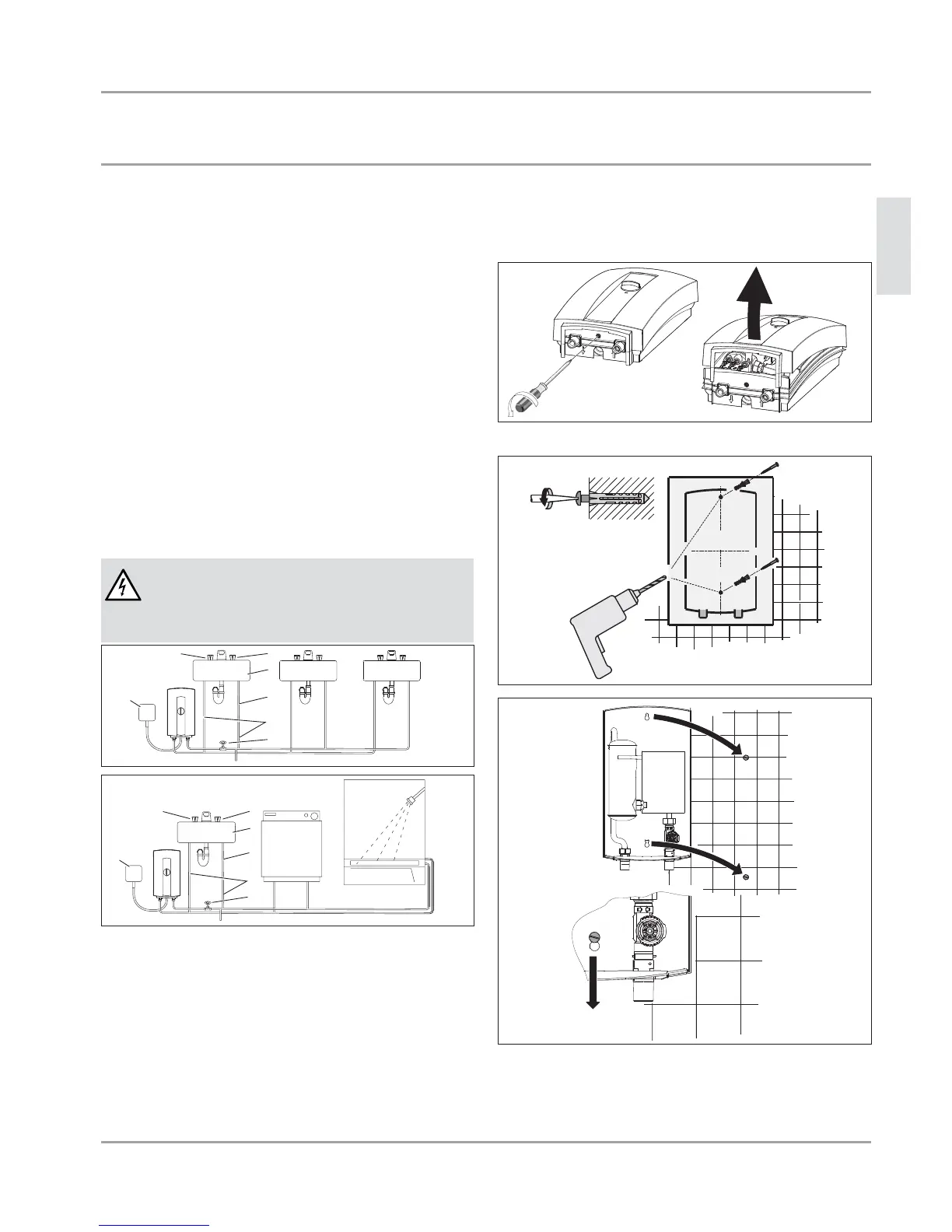

5. Mounting the appliance
5.1 Application
One appliance can be used for the following applications:
one or multiple hand washing sinks
one kitchen sink
cabins with flow restriction at shower head.
A combination of two appliance can be used for whole apartment
and house applications. Please contact STIEBEL ELTRON for special
installation instructions.
All areas with a ground water temperature likely to exceed 65°F
(18°C) year round:
Whole apartment or house
CAUTION Electrocution
Unit must be installed in a vertical position with the water
fittings pointing downward. Do not install appliance where
it would routinely be splashed with water. Electric shock
may result.
12
3
4
5
6
7
26_02_02_1082
1
2
3
4
5
6
7
26_02_02_1081
1 Hot valve (left)
2 Cold valve (right)
3 Sink
4 1/2“ main pipe
5 Water supply line for faucet installation
6 Shut-off valve
7 Electrical junction box
5.2 Mounting
f Install appliance as close as possible to the main hot water
draw-off points.
f Install appliance in a frost free area. If frost may occur, remove
appliance before freezing temperatures set in.
f Leave a minimum of 5“ of clearance on all sides for servicing.
26_02_02_1083
f Remove plastic cover.
26_02_02_033126_02_02_1090
f Screw the screws into the wall and hang the appliance. Screws
and plastic wall anchors for mounting on masonry or wood are
provided.
f Secure the screws.
