INSTALLATION
Installation
78 | DHE www.stiebel-eltron.com
12
D0000053319

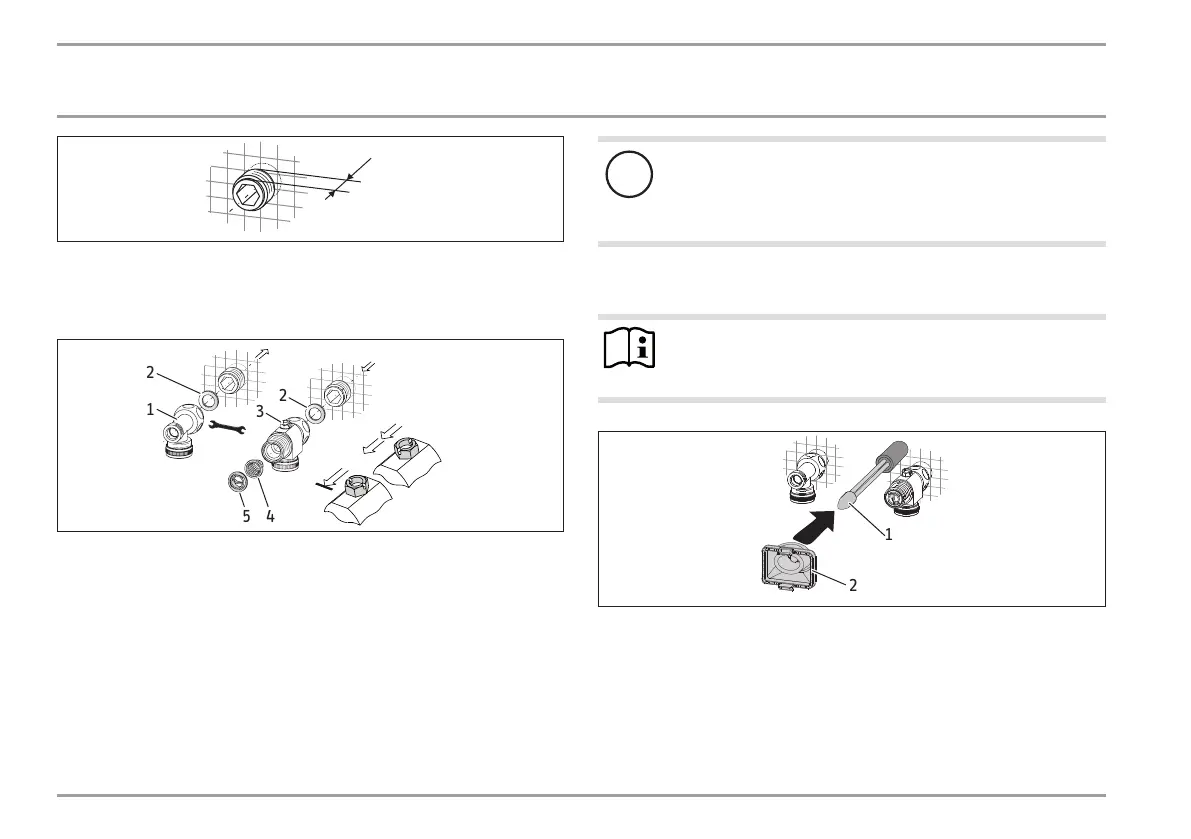

Seal and insert the twin nipples.
Making the water connection
5 Nm
24
D0000059695
1
45
2
3
2
1 DHW with tee
2 Gasket
3 Cold water with 3-way ball shut-off valve
4 Strainer
5 Plastic profile washer
Secure the tee and 3-way ball shut-off valve, each with a flat
gasket, to the twin nipples.
!
Material losses
The strainer must be fitted for the appliance to function.
When replacing an appliance, check whether the
strainer is installed.
Installing the appliance
Note
If you are installing the appliance with flexible pipe con-
nections, also secure the back panel with a screw.
D0000053291
1
2
1 Cable entry installation aid
2 Cable grommet
Use the installation aid for easier wiring access through the cable
grommet (see plastic parts set supplied).
Remove the cable grommet from the back panel.
