INSTALLATION
Specication
98 | DHE www.stiebel-eltron.com
17. Specification

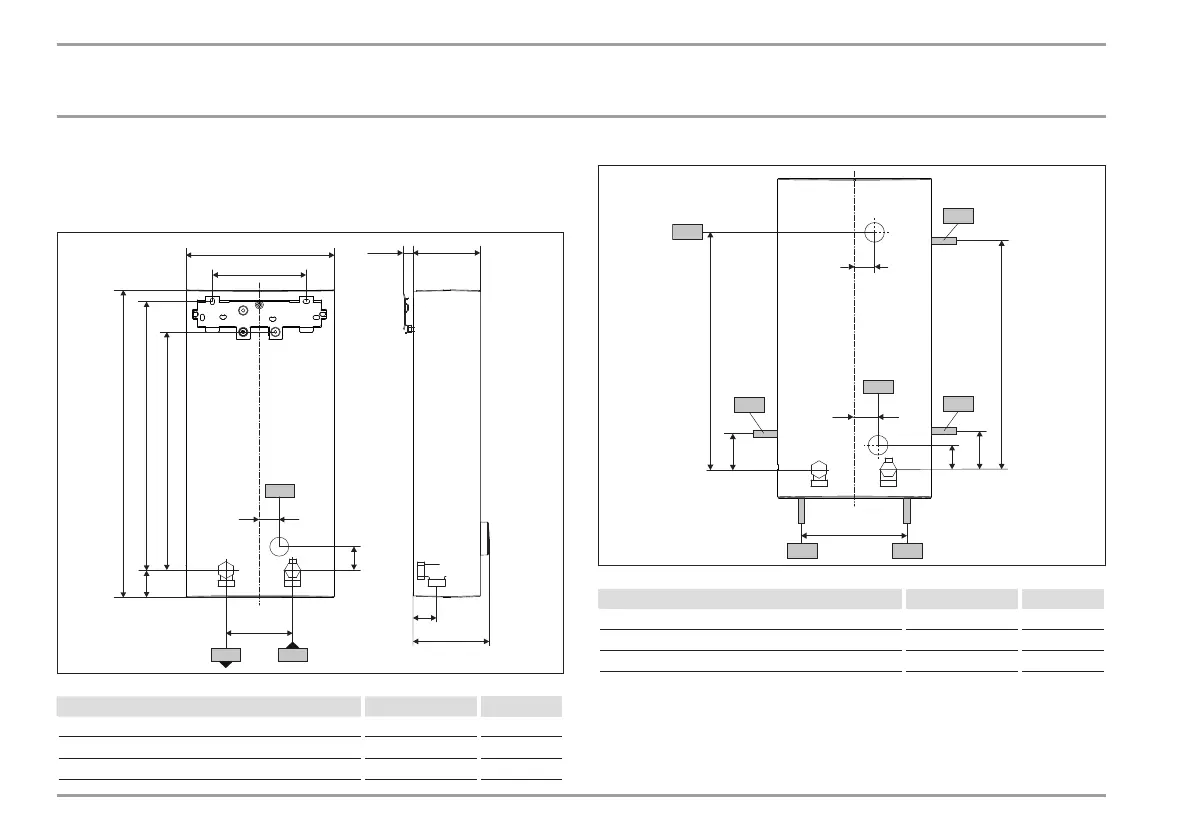

17.1 Dimensions and connections
466
225
35
35
414
38
105≤ 20
140
30
b02
100
c01c06
368
116
D0000073253
DHE
b02 Entry for electrical cables I Unfinished walls
c01 Cold water inlet Male thread G 1/2 A
c06 DHW outlet Male thread G 1/2 A
Alternative connection options
165
b04
b04
69
330
b04
69
325
b04
b04
b03
20
35
30
b02
D0000053293
DHE
b02 Entry for electrical cables I Unfinished walls
b03 Entry for electrical cables II Unfinished walls
b04 Entry electrical cables III Finished walls
