STIEBEL ELTRON DHE 27 - Installation with Offset Tiles; Wall Mounting Bracket When Replacing an Appliance

INSTALLATION
Installation alternatives
90 | DHE www.stiebel-eltron.com

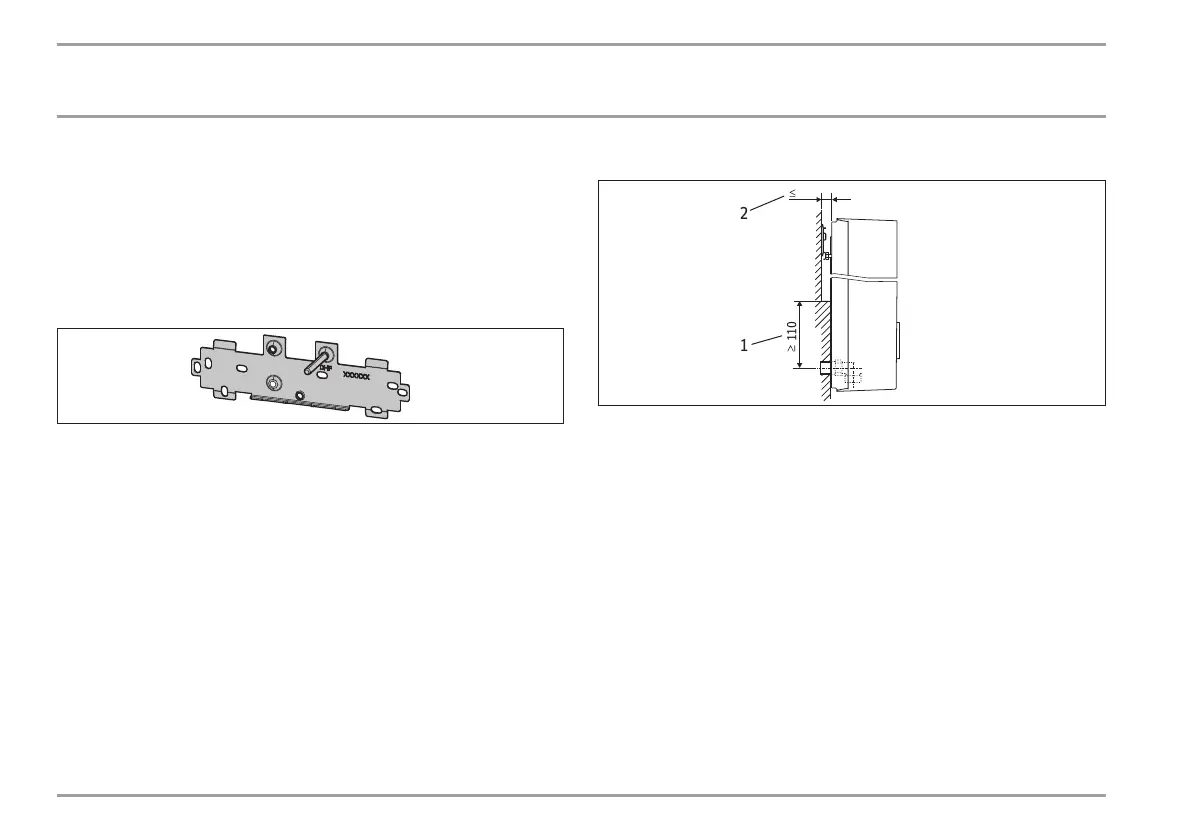

13.9 Wall mounting bracket when replacing an
appliance
An existing STIEBELELTRON wall mounting bracket may be used
when replacing appliances (except the DHF instantaneous water
heater), as long as the fixing screw is in the lower right position.
Replacing a DHF instantaneous water heater
26�02�02�0815�
 Reposition the fixing screw on the wall mounting bracket (the
fixing screw has a self-tapping thread).
 Rotate the wall mounting bracket 180° and mount it on the
wall (the DHF logo is then turned towards you).
13.10 Installation with offset tiles
110
20
26�02�02�1066�
2
1
1 Minimum contact area of the appliance
2 Maximum tile offset
 Adjust the wall clearance. Lock the back panel in place using
the fixing toggle (turn 90° clockwise).
