www.stiebel-eltron.com DHE | 99
INSTALLATION
Specication
ENGLISH

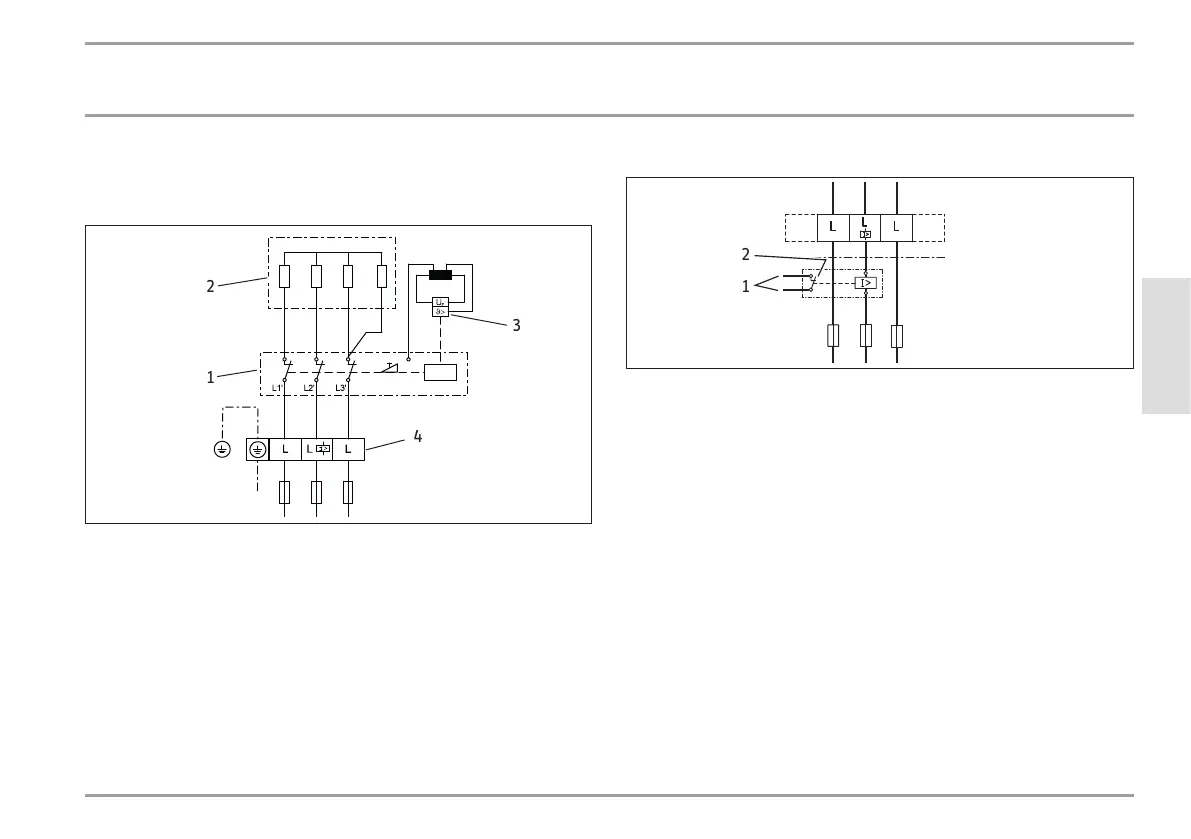

17.2 Wiring diagram
3/PE ~ 380-415V
D0000053424
1
3
4
2
1 Power PCB with integral safety switch
2 Bare wire heating system
3 High limit safety cut-out
4 Mains terminal
Priority control with LR 1-A
85�02�02�0003�
2
1
1 Control cable to the contactor of the second appliance
(e.g. electric storage heater)
2 Control contact drops out when switching the instantaneous
water heater on.
