OPERATION
Operation
www.stiebel-eltron.com WPF | WPF cool | 7

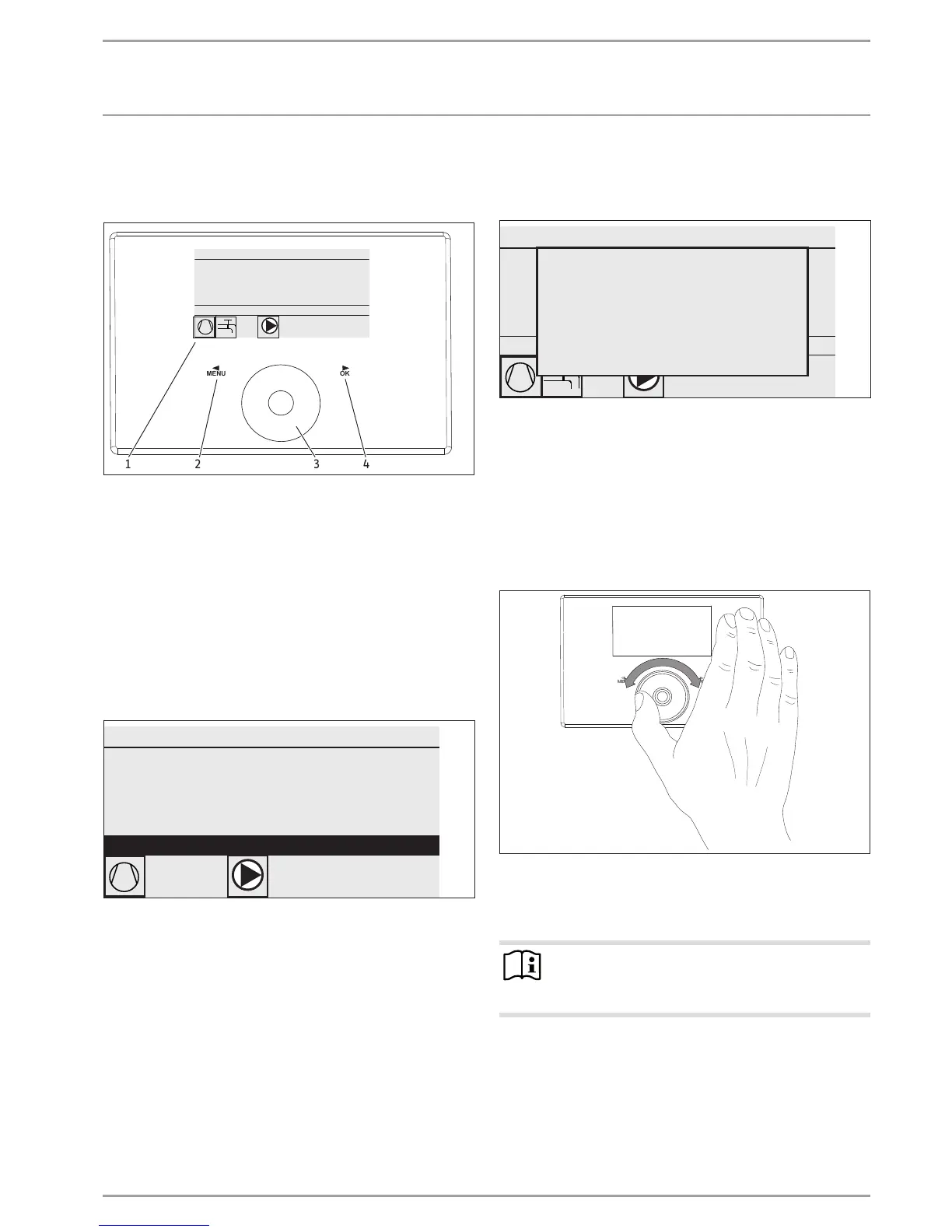

4. Operation
4.1 Controls
OKMENU
D0000064711
1 32 4
WEDNESDAY 12 JUN 13 10:23 TIME
OUTSIDE TEMPERATURE
ACTUAL DHW TEMP
27.0 °C
35.0 °C
28.0 °C
ACTUAL RETURN TEMP
ECO MODE
1 Display
2 MENU key
3 Scroll wheel
4 OK key
You control the system with the programming unit of the heat
pump manager. Use the scroll wheel and the MENU and OK keys
to navigate through the menu structure.
4.1.1 Display
The programming unit display shows the current state of the sys-
tem and provides messages and information.
Start screen
WEDNESDAY 12 JUN 13 10:23 TIME
OUTSIDE TEMPERATURE
ACTUAL DHW TEMP
27.0 °C
35.0 °C
28.0 °C
ACTUAL RETURN TEMP
26�04�01�0292
ECO MODE
1 Date and time
2 Temperature display
3 Operating mode
4 System status picture symbols
The start screen is divided into four sections. The top field displays
the date and time. The field below displays the outside tempera-
ture along with the actual DHW temperature and the actual return
temperature. The third section is for selecting and displaying the
operating modes. In the fourth section, picture symbols indicate
the current system state.
Activation
If the scroll wheel and keys/fields are not used for 20minutes,
the programming unit is locked.
WEDNESDAY 12 JUN 13 10:23 TIME
OUTSIDE TEMPERATURE
ACTUAL DHW TEMP
27.0 °C
35.0 °C
28.0 °C
ACTUAL RETURN TEMP
ECO MODE
To activate please
for 3 seconds
press MENU.
26�04�01�0292
 Touch the MENU key for three seconds to enable the pro-
gramming unit.
Selection indicator
A highlighter within the menu structure indicates the current po-
sition at all times. This displays the selected menu item with a
dark background. The current menu level is displayed at the top
of the display.
4.1.2 Scroll wheel
D0000064710
The scroll wheel comprises a sensor that is touch-sensitive. There
is one key array each to the left and right of the scroll wheel. All
required appliance functions are controlled and checked with the
scroll wheel and the keys.
Note Sensor responsiveness
Wearing gloves, wet hands or a damp programming unit
impede the recognition of your touch and the execution
of the action you require.
In the MAIN MENU/COMMISSIONING menu, your contractor can set
the sensitivity to touch using the parameter TOUCH SENSITIVITY.
