20 | WPL 10 www.stiebel-eltron.com

INSTALLATION

Specication

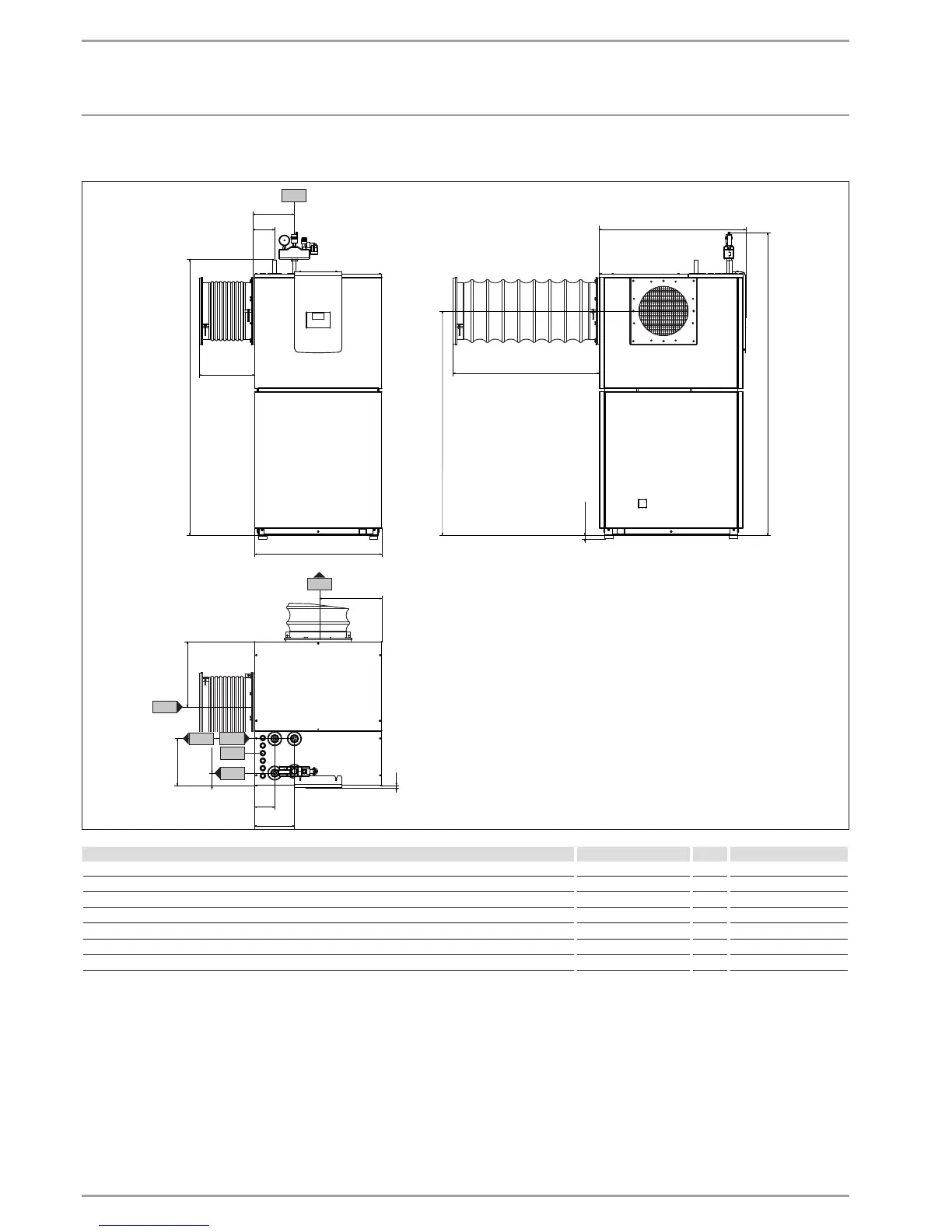

19.2 Dimensions and connections WPL10IK3

760

≤800

1640

130

235

1365

22-40

1818

380

279

237

≥300

383

120

c11

g01

g02

e02

e01

b01

873

e22

D0000016751

WPL 10 IK 3

b01 Entry electrical cables

c11 Safety assembly

e01 Heating flow Diameter mm 22

e02 Heating return Diameter mm 22

e22 Cylinder flow Diameter mm 22

g01 Air intake Nominal diameter DN 315

g02 Air discharge Nominal diameter DN 315
