INSTALLATION
Power supply
11. Power supply
11.1 General
WARNING Electrocution
 Before working on the appliance, isolate it from
the power supply at the control panel.
Note
Please observe the heat pump manager operating and
installation instructions.
Connection work must only be carried out by a qualified electrical
contractor in accordance with these instructions.
Permission to connect the appliance may need to be obtained from
your local power supply utility.
 Observe the "Preparations / Electrical installation" chapter.
Note
The heating system needs to be filled before making the
electrical connection (see the "Heating water connection"
chapter).

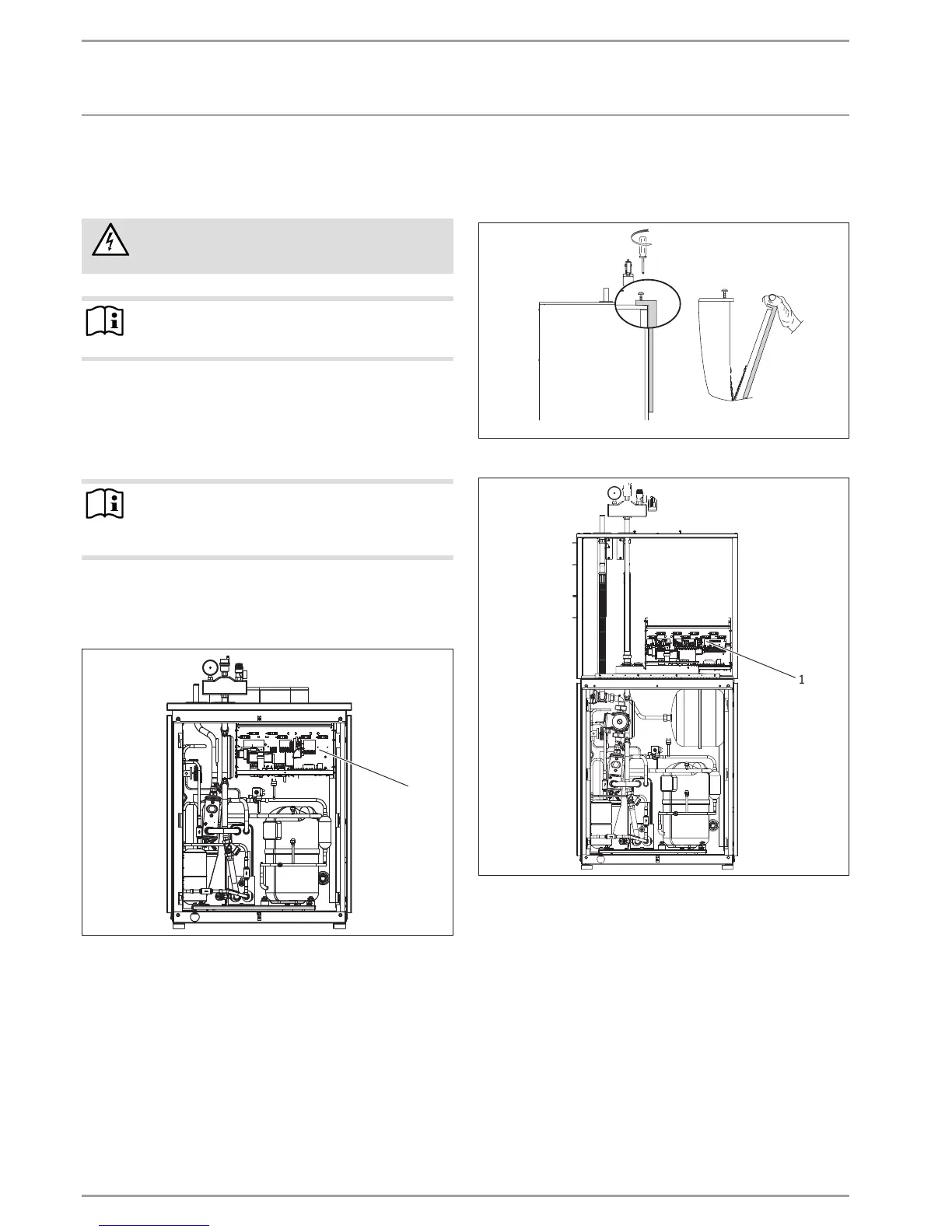

11.2 Electrical connection WPL10I
The terminals are located inside the appliance control panel, be-
hind the front door.
1
D0000051814
1 Control panel
 Observe the information in the "Preparations / Electrical in-
stallation" chapter.
 Remove the control panel from the casing.
 Use appropriate cables in accordance with local regulations.
 Check the function of the strain relief fittings.
 Connect the heating circuit pump to the heat pump manager
in accordance with the technical guides.
11.3 Electrical connection WPL10IK3
The terminals are located inside the appliance control panel, be-
hind the top door.
2x
D0000052078
 Open the top door.
1
D0000051815
1 Control panel
 Observe the information in the "Preparations / Electrical in-
stallation" chapter.
 Use appropriate cables in accordance with local regulations.
 Check the function of the strain relief fittings.
