EN - 4
3.2. ENGINE HOOD
To access the fuel tap, battery and engine, open
the engine hood:
1. Lif t the s eat stop (3:A) a nd tilt the seat for ward.
2. Grasp and lift the engine hood (4:B)
.
3.3.
See gure 5.
Connect the battery to the machine's electrical system using
the screws and nuts
Connect the red cable to the positive terminal (+) and the
black cable to the negative battery terminal (-).
Tighten the cables securely. Loose cables can
cause fire
3.4.
See gure 6.
3.5.
Type “I” Steering Wheel: see figure 7-I.
Type “II” Steering Wheel: see figure 7-II.
3.6.
See gure 8.
3.7.
SUPPORTS
The quick-release supports and the relative instructions
are supplied in a separate package in the packaging of the
machine.
Install the quick-release supports on the front axle shafts.
NOTE In this case the cutting means assembly is consid-
ered an attachment.

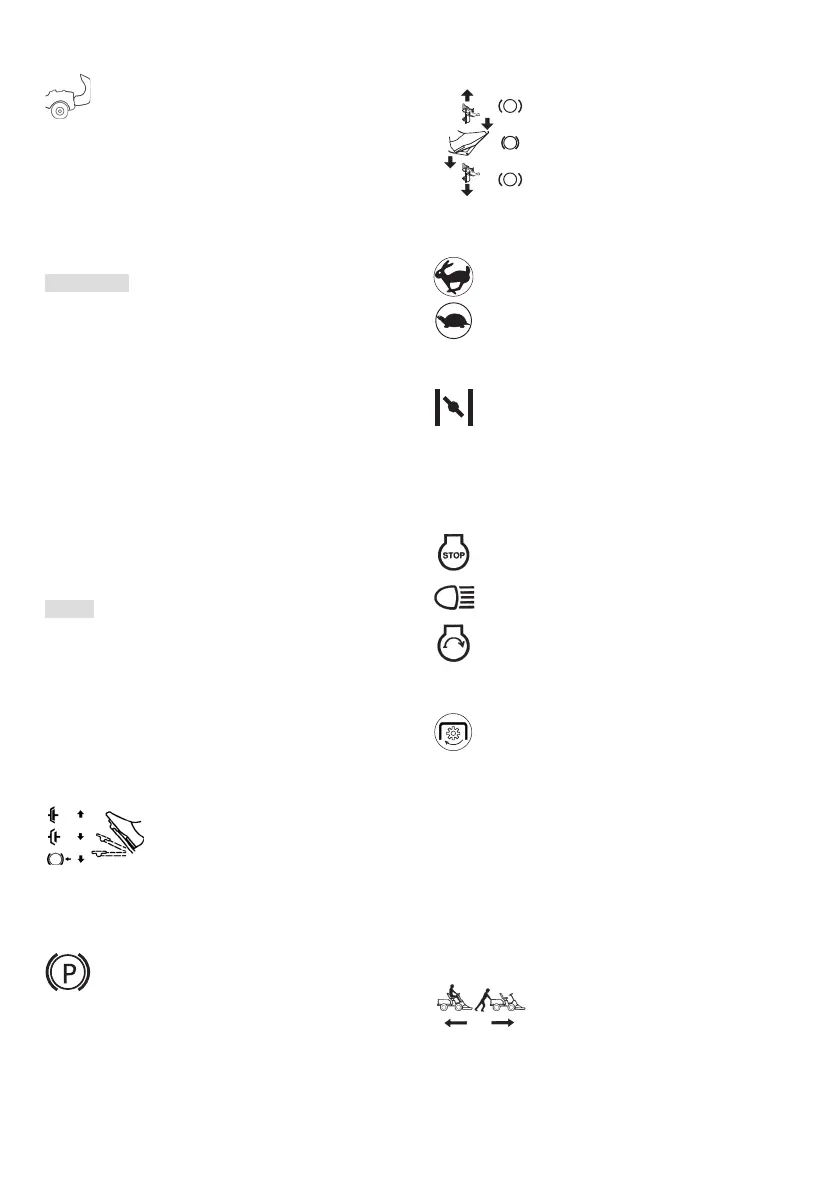

4. CONTROLS
•
Control lever (9:A1), used to move the attachments from the
working position to the transport position.
•
Released: the drive is engaged. the
parking brake is not activated.
Pressed halfway: forward drive is
disengaged. the parking brake is not
activated.
Fully pressed: the drive is released. The
parking brake is fully activated but not
locked.
•
Locks the brake pedal in the fully depressed
position.
•
By pressing the pedal forwards, the
machine advances.
When there is no load on the pedal the
machine is stopped.
By pressing the pedal backwards, the
machine moves in reverse gear.
By reducing pressure on the pedal the
machine brakes.
•
Full on.
Idle.
•
Full throttle (10:G1): Throttle closed. For cold
starting of the engine.
Control pushed in (10:G2): throttle open. For use
when the engine is warm and during operation.
•
The ignition switch is used to start and stop the engine.
Stop position.
On position.
Start position.
•
Button for engaging/disengaging power take-o.
•
Some models are equipped with the Bluetooth function,
which provides short-distance direct wireless connection be-
tween the machine and another device.
The specic data exchange App must be installed:
Bluetooth is activated when the machine is switched on and
is deactivated when the machine is switched o.
•
The levers allow the machine to be moved manually (push
or pull), without starting the engine.
The 2WD is equipped with a lever
connected to the rear axle (11:A).
The 4WD has two levers connected to
the rear axle (12:A) and the front axle
(12:B)
