Stiga PARK COMPACT Instructions For Use

ENGLISH
EN
1 GENERAL
This symbol indicates WARNING.
Personal injury and/or damage to
property may result if the instructions
are not followed carefully.
You must read these instructions for use
and the accompanying pamphlet
“SAFETY INSTRUCTIONS”
carefully, before starting up the
machine.

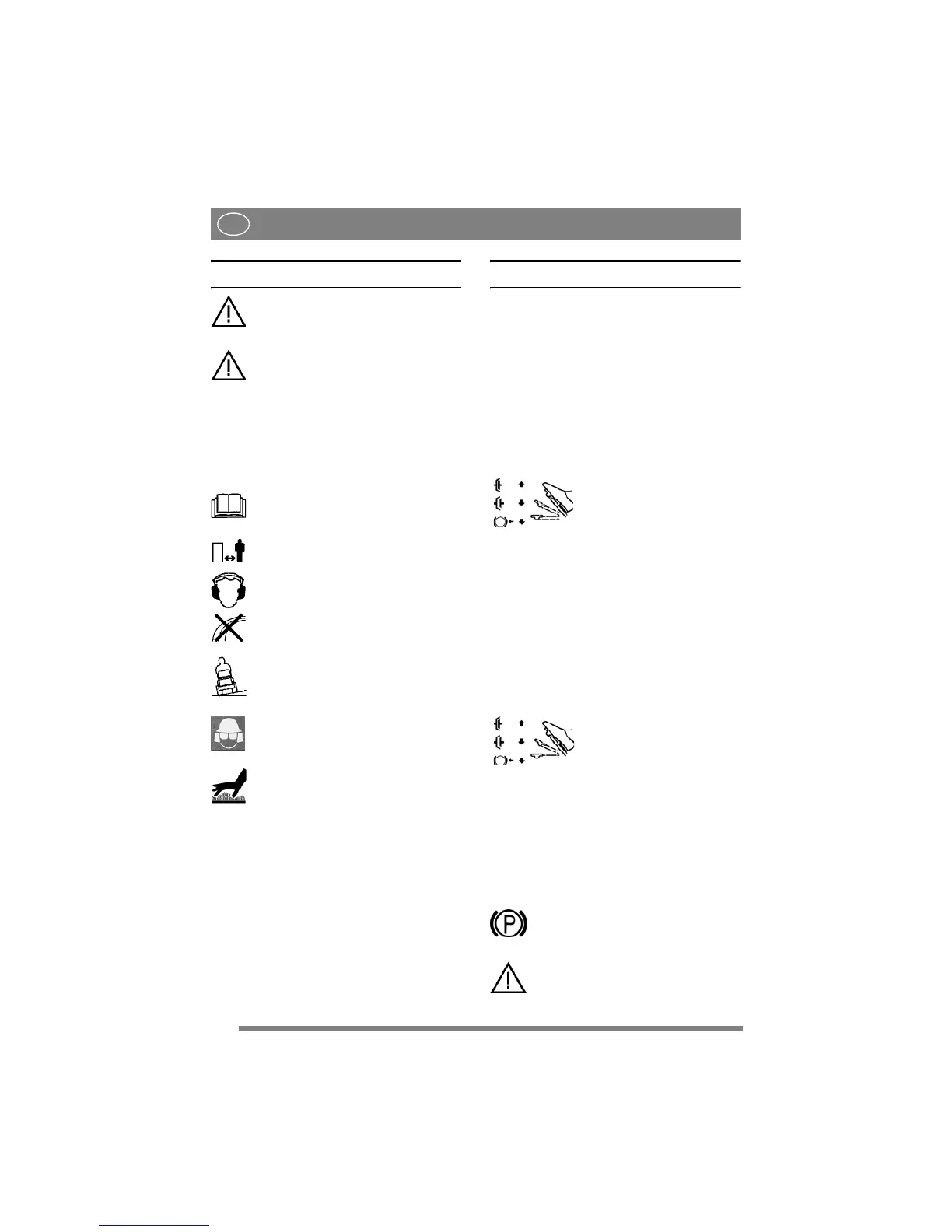

1.1 SYMBOLS
The following symbols appear on the machine.
They are there to remind you of the care and
attention required in use.
This is what the symbols mean:
Warning!
Read the instruction manual and the safety
manual before using the machine.
Warning!
Watch out for discarded objects. Keep
onlookers away.
Warning!
Always wear hearing protectors.
Warning!
This machine is not designed to be driven
on public roads.
Warning!
The machine, equipped with original
accessories, must not be driven in any
direction on slopes with a gradient greater
than 10º.
Warning!
Risk of crushing injuries. Keep hands and
feet well away from the articulated
steering joint.
Warning!
Risk of burn injuries. Do not touch the
silencer/catalytic converter.
1.2 General
This machine is available in two versions.
• Compact, manual transmission, designated
Compact.
• Compact, hydrostatic transmission, designated
Compact HST.
2 CONTROLS
Points 1 - 9, see figures 1 - 3.
2.1 Implement lifter, mechanical (1)
To switch between working position and transport
position:
1. Depress the pedal fully.
2. Release the pedal slowly.
2.2 SERVICE BRAKE/CLUTCH
(2, Compact)
A pedal that combines both service brake and
clutch. There are 3 positions:
1. Pedal released – forward drive
engaged. The machine will
move if a gear is engaged.
Service brake not activated.
2. Pedal depressed halfway –
forward drive disengaged, gear
shifting can be performed.
Service brake not activated.
3. Pedal fully depressed –
forward drive disengaged.
Service brake fully activated.
NOTE! You must never regulate the operating
speed by slipping the clutch. Use a suitable gear
instead, so that the right speed is obtained.
2.3 Clutch-parking brake
(2, Compact HST)
The pedal (3) has the following
three positions:
• Released. The clutch is not activated. The park-
ing brake is not activated.
• Depressed halfway. Forward drive disengaged.
The parking brake is not activated.
• Pressed down. Forward drive disengaged. The
parking brake is fully activated but not locked.
2.4 Inhibitor, parking brake (3)
The inhibitor locks the (2) pedal in the de-
pressed position. This function is used to
lock the machine on slopes, during trans-
port, etc.
The parking brake must always be re-
leased during operation.

Stiga PARK COMPACT Specifications

General

Fuel	Petrol
Cutting height	25-85 mm
Drive	Rear-wheel drive
Engine type	4-stroke OHV
Power	7.1 kW
Cutting width	85 cm
Steering	Articulated
