Edition Manual Chapter Page
2008-03-18 Workshop Manual, Stiga Primo 4 Belts 7
4.3.3 Assembly of belt C
Assemble all part in the reverse order.
After the assembly, adjust the PTO brake. See
below.

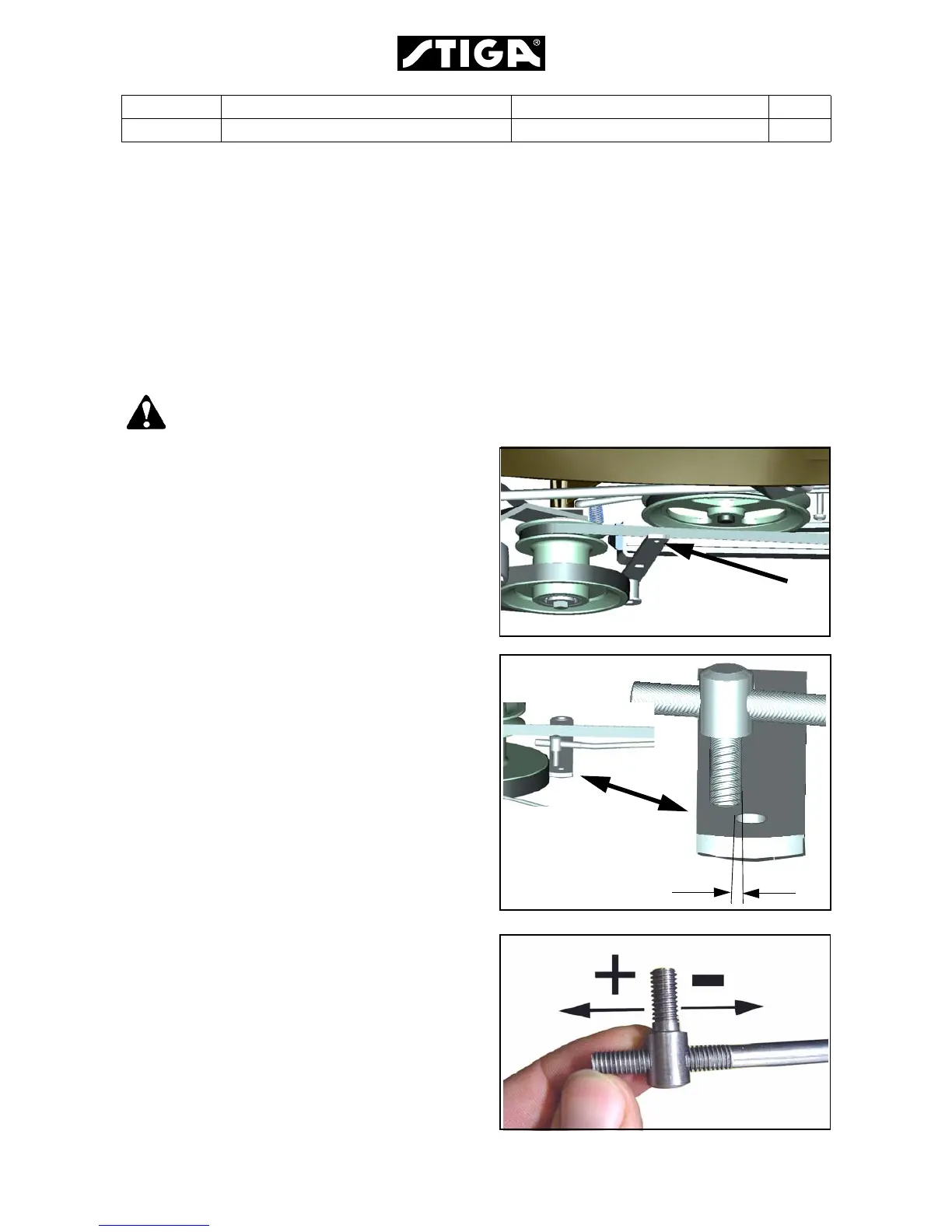

4.3.4 Adjustmen of PTO brake
Warning!
It is important that the movement of
the tensioning arm is always
stopped by the brake pad, and not
by the engagement rod. If the rod
stops the movement, the braking ca-
pacity can be completely lost when
the parts become worn.
1. Remove the rod link and press the brake
shoe hard against the pulley.
Hold the threaded stud above the lever
close to the hole. In this position, 1/4 of the
threaded stud diameter shall overlap the
hole diameter.
2. Adjust the nipple towards + to increase the
brake function.
Adjust the nipple towards - to decrease the
brake function.
.
1/4 Dia.
