4

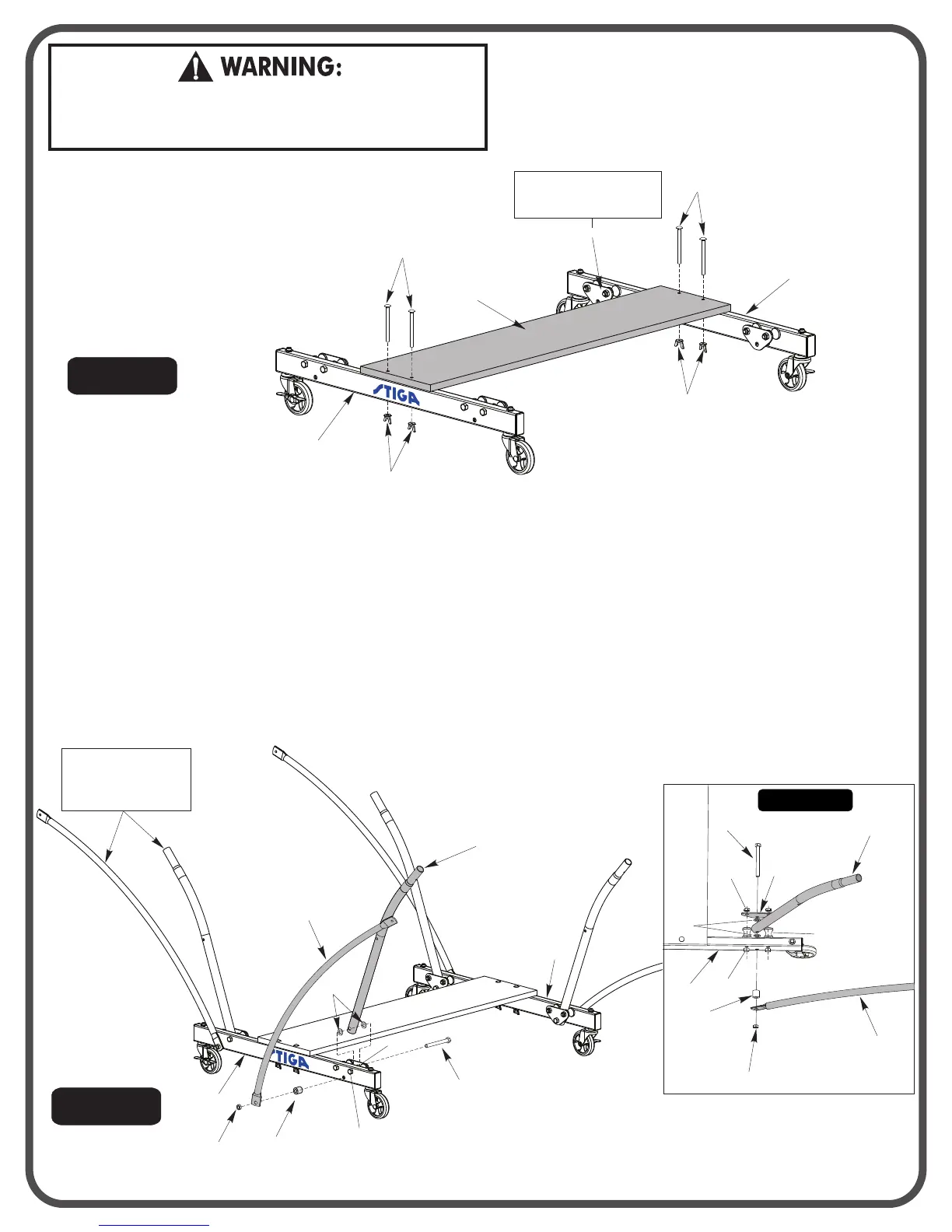

3. Attach Wood Bottom Board (#15) to Caster Beam
Assemblies (#8) as shown in Figure 3. Turn
Caster Beams as shown and attach board with four
Carriage Bolts (#31) and four Wing Nuts (#32).
Tighten Wing Nuts securely.
READ AND FOLLOW ALL ASSEMBLY, OPERATING, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO (2)
ADULTS ARE NEEDED TO PUT THIS TABLE TOGETHER!
4. Attach Strut Tubes (#17) and Linkages (#16) to Caster Beam Assemblies (#8) as shown in Figure 4.
a) If necessary loosen Bolts (#13) and Nuts (#28) so that Strut Tube (#17) can fit between Support
Plate (#43) and Caster Beam (#8) as shown in the Top View and Figure 4.
b) Slide one Hex Bolt (#27) through Support Plate (#43), followed by one Plastic Washer (#39), Strut
Tube (#17), one Plastic Washer (#39), pass through Caster Beam (#8), one Spacer (#36), one
Linkage (#16), and Lock Nut (#28).
c) Repeat on other end of Caster Beam (#8) and on second Caster Beam.
d) Tighten Bolts (#13) and Nuts (#28) securely.
e) Tighten Nuts (#28) on Bolts (#27) securely.
NOTE: Tighten nuts so that end of Bolt (#27) in even with the edge of nut.
15
31
8
32
31
32
8
17
8
36
39
28
27
16
17
16
27
43
39
12
36
28
8
43
Note: Support Plate (#43)
is on the inside of Caster
Rail (#8) as shown.
13
8
43
28
13
Note: Linkages & Strut
tubes must be turned as
shown or table will not
operate correctly.
Figure 3
Figure 4
TOP VIEW
