Edition Manual Chapter Page
2008-05-19 Workshop Manual, Stiga Villa/Ready 7 Electrical System 16
7.3 Repair and replacements
Warning
Do not wear rings, metallic bracelet,
chain round the neck or similar met-
al objects when working with the
electrical system. It can cause short-
circuit, burns and fire.

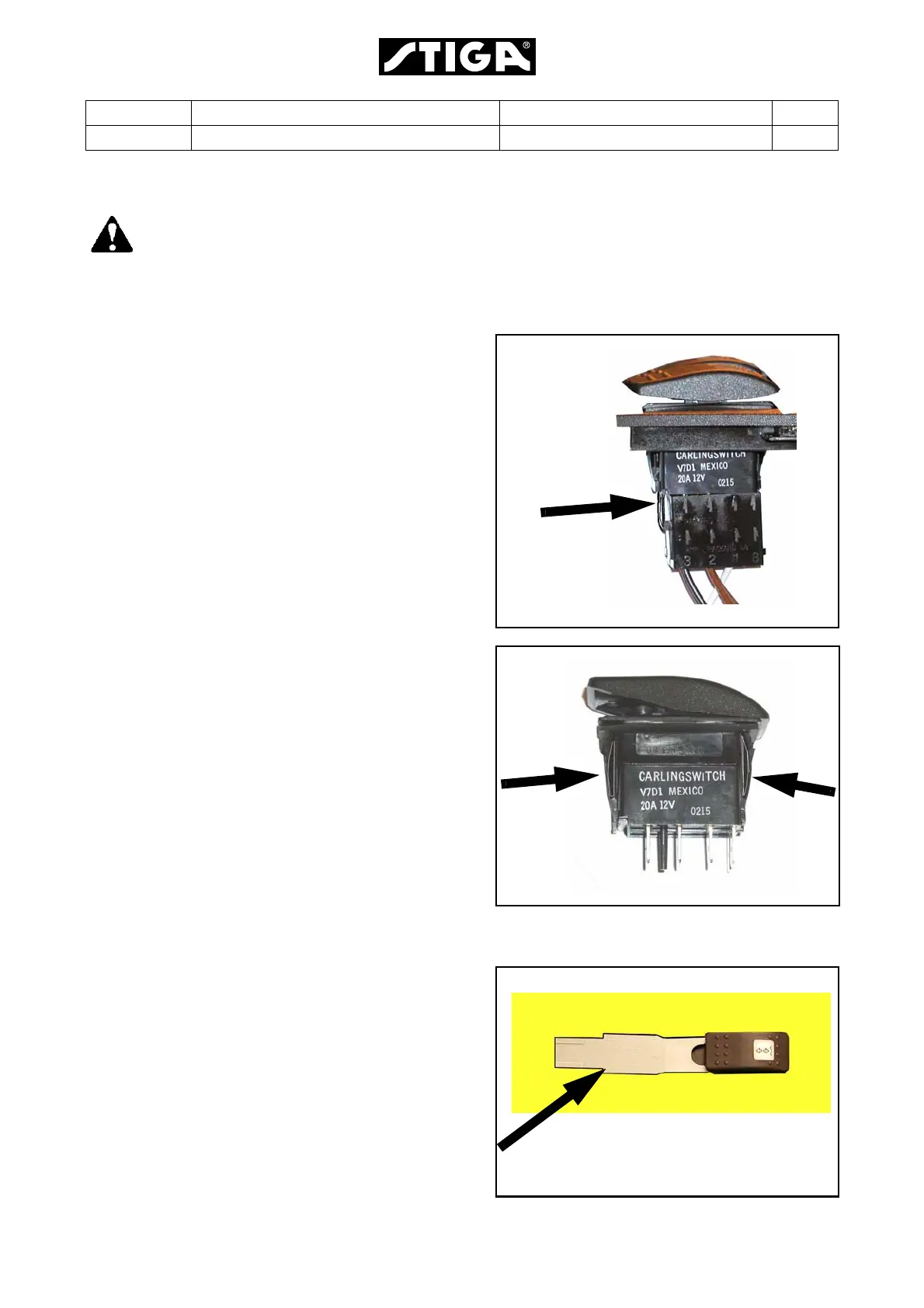

7.3.1 Replacement of switches
All switches are pressed into place in their
rectangular holes at the control panel. To
change a switch proceed as follows:
1. Remove the actual cover to get access to
the switch.
2. Press the fixation pig at the connector and
pull the connector from the switch.
See the figure.
Some connectors have 2 pigs.
3. Press the fixation tongues on both sides of
the switch against the switch. Use a
screwdriver or similar and work up the
switch.
See the figure.
7.3.2 Replacement of switch knob
To replace the switch knob, there is a special
tool available. Regarding reference number,
see the spare parts list
Remove the knob by pushing in the tool
backwards and press until the knob jumps
up.
The knob is easily assembled by pressing it
down in its hole in the switch.
7.3.3 Connections
The machine is equipped with three kinds of
connectors:
• Fixed connectors in plastic holders.
• Tab connectors
• Screw connectors
All connectors shall be kept free from
contamination, corrosion and damp.
