Edition Manual Chapter Page
2008-05-19 Workshop Manual, Stiga Villa/Ready 7 Electrical System 17

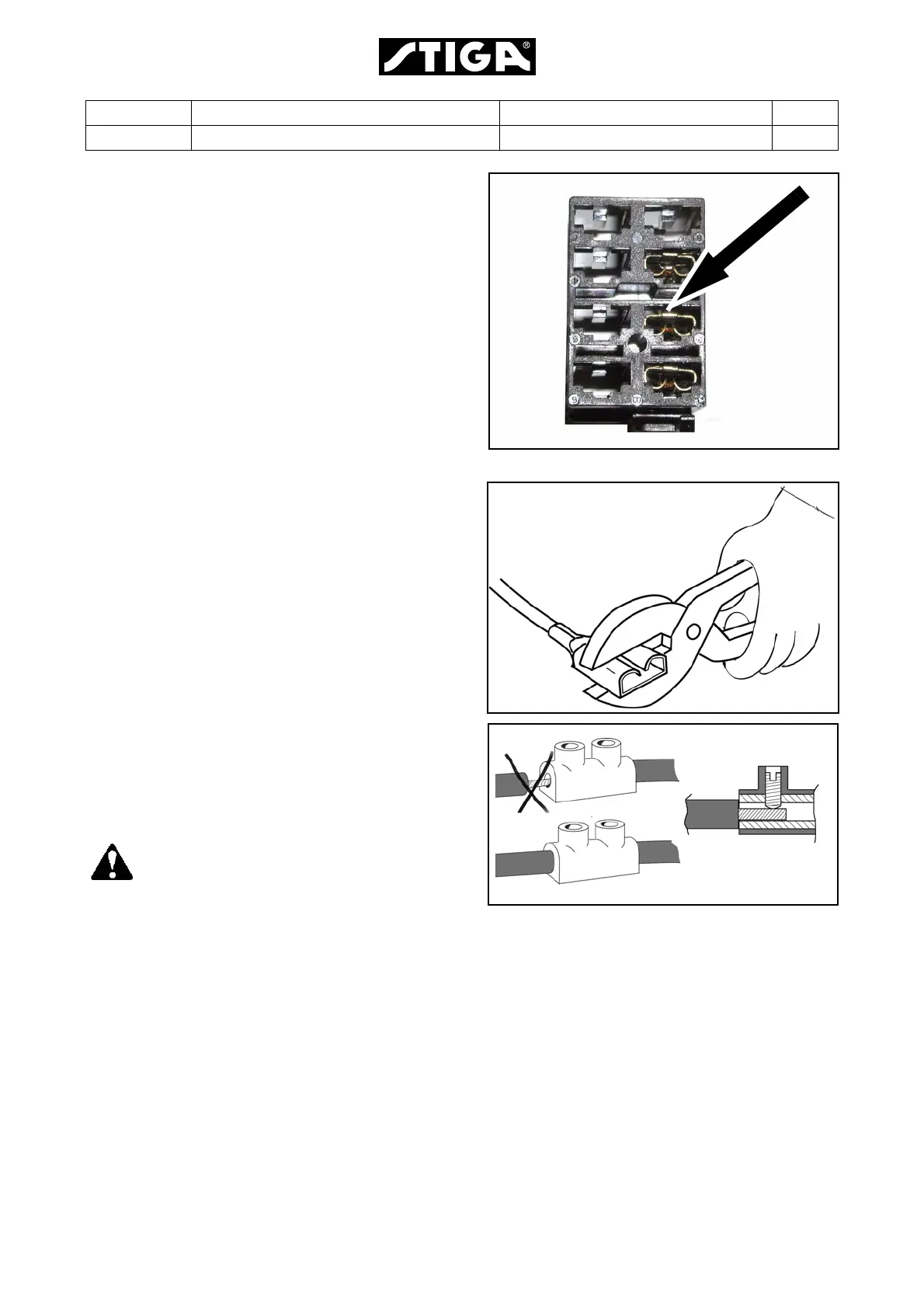

Fixed connectors in plastic holders
To remove the connectors from the plastic
holder, put a small screwdriver behind the
connector, hold the cable and pull out the
connector.
See the figure.
Tab connectors
To restore tab connectors if bad crimp forces
occur, e.g. after a long time of use, the
connector can be pinched by a pliers.
See the figure.
Screw connectors
When cables shall be connected into screw
connectors, the cable shall be stripped off 5
mm only. No metallic conductor is allowed to
be exposed outside the terminal.
Warning!
Exposed conductors can cause
short-circuit and fire.
